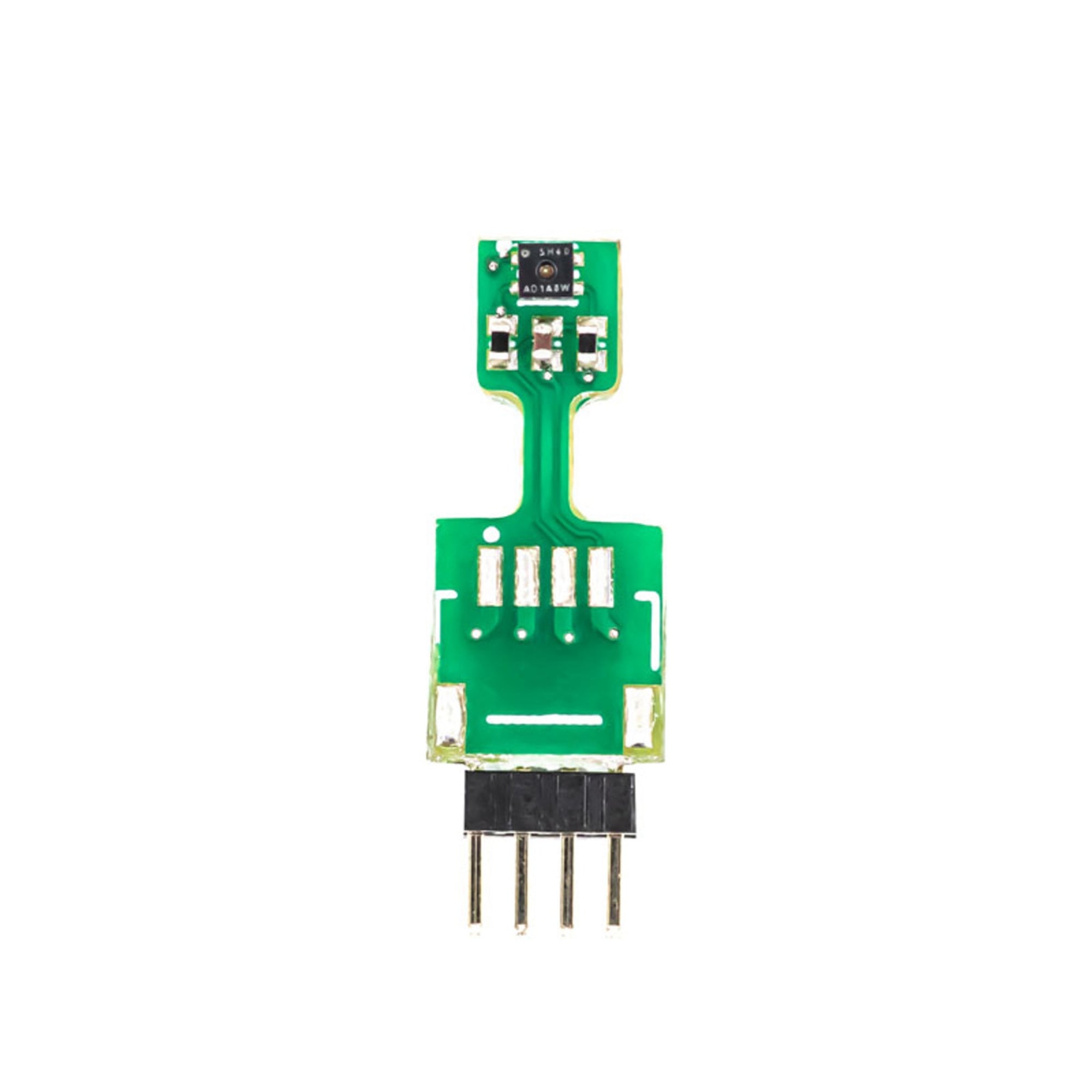

7Semi SHT40 Temperature & Humidity Sensor Breakout 1.27mm Pitch

The 7Semi SHT40 Temperature & Humidity Sensor Breakout 1.27mm Pitch is a high-precision, digital humidity and temperature sensing module based on the Sensirion SHT40 sensor. It provides fully calibrated, linearized, and digital output over an I²C interface. The breakout features a compact 1.27mm pitch header for easy integration into compact circuit designs. With its excellent long-term stability, low power consumption, and fast response time, the SHT40 is ideal for applications requiring accurate environmental monitoring in both industrial and consumer devices.

Technical Specifications:

• Sensor IC: Sensirion SHT40

• Measurement Parameters: Temperature and Humidity

• Interface: I²C digital communication

• Supply Voltage: 2.4V to 5.5V (typical 3.3V)

• Temperature Range: -40°C to +125°C

• Temperature Accuracy: ±0.1°C (typical at 25°C)

• Humidity Range: 0% to 100% RH (non-condensing)

• Humidity Accuracy: ±1.8% RH (typical 25°C, 10–90% RH)

• Resolution: 16-bit output for both temperature and humidity

• I²C Address: 0x44 (default)

• Response Time: <8 seconds for humidity, <2 seconds for temperature

• Current Consumption: 0.4µA (standby), 1.3µA (typical active)

• Output Type: Calibrated, linearized digital signal

• Pitch: 1.27mm header spacing

• Operating Temperature: -40°C to +125°C

• Logic Level Compatibility: 3.3V and 5V systems

• PCB Size: Compact breakout for small form-factor devices

Features:

• Fully calibrated and digital I²C output for easy communication

• High accuracy of ±0.1°C and ±1.8% RH

• Ultra-low power consumption ideal for battery-powered devices

• Fast response time and excellent long-term stability

• Compact 1.27mm pitch breakout design for easy PCB integration

• Factory-calibrated and linearized temperature and humidity readings

• Compatible with both 3.3V and 5V logic systems

• Minimal drift and long operational lifespan

• Designed for reliable performance in varying environmental conditions

• Seamless integration with Arduino, ESP32, STM32, and Raspberry Pi

Applications:

• Environmental monitoring and weather stations

• HVAC and air quality management systems

• Smart home and IoT applications

• Industrial and laboratory climate control

• Greenhouse and agricultural automation

• Data logging and sensor network systems

• Portable and wearable environmental sensors

• Scientific research and calibration equipment

• Medical and pharmaceutical storage monitoring

• Consumer electronics with temperature and humidity sensing
