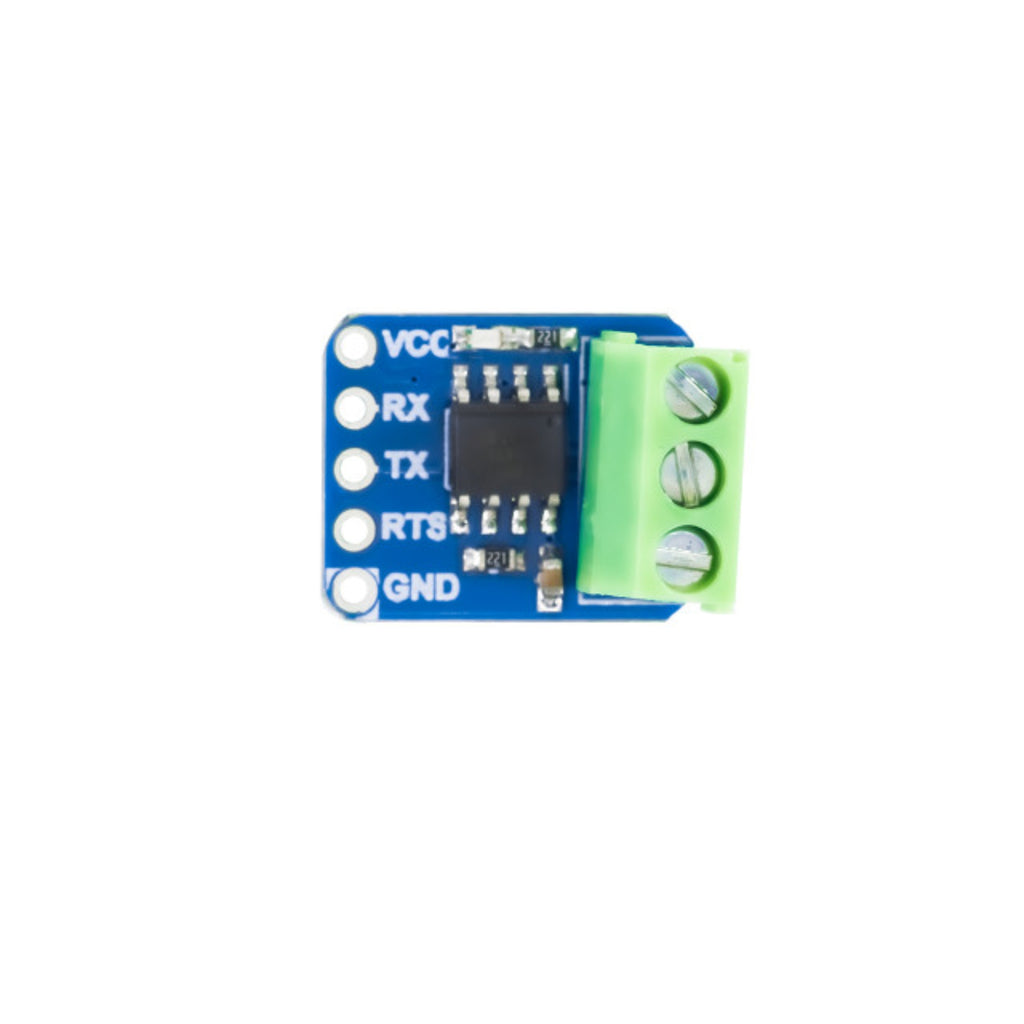

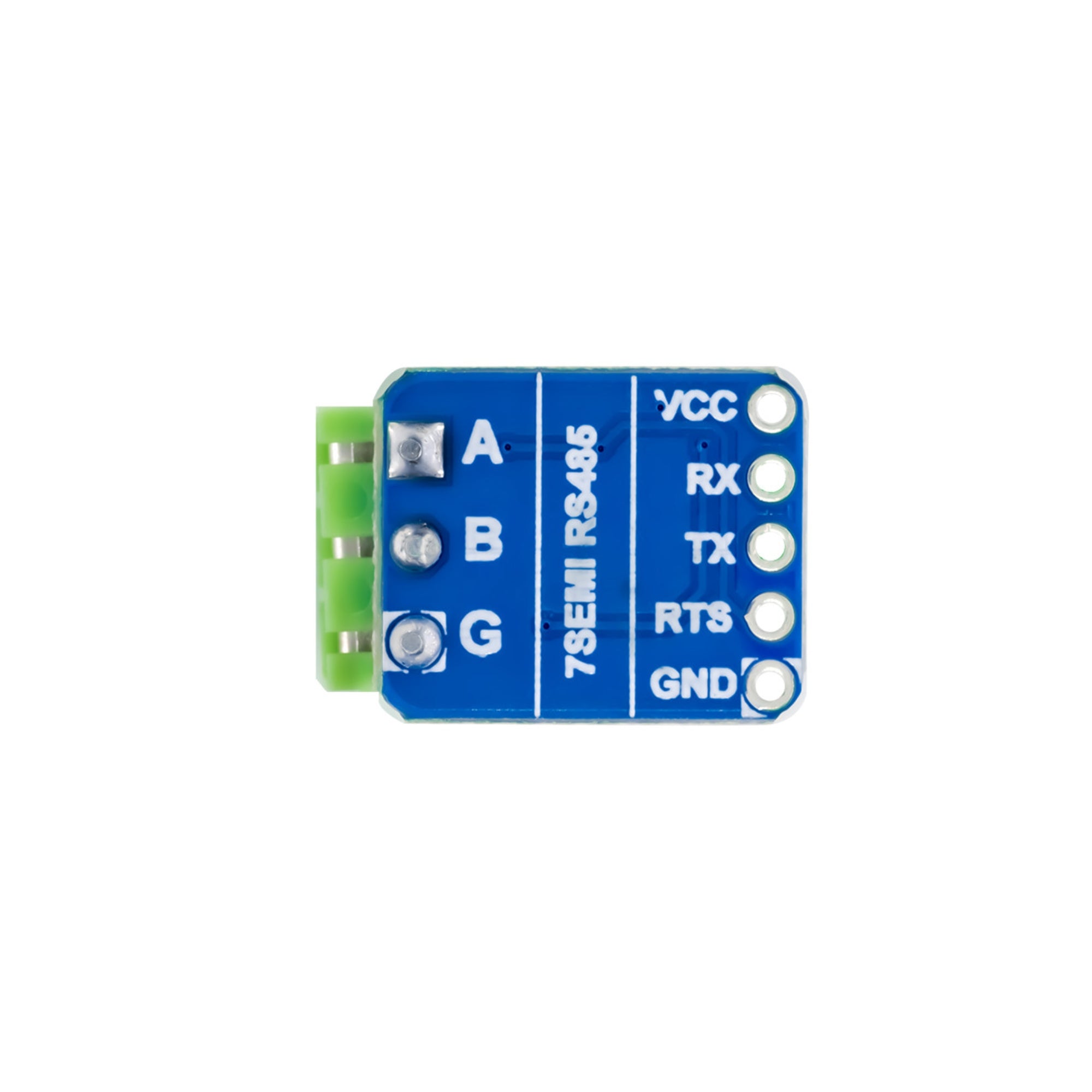

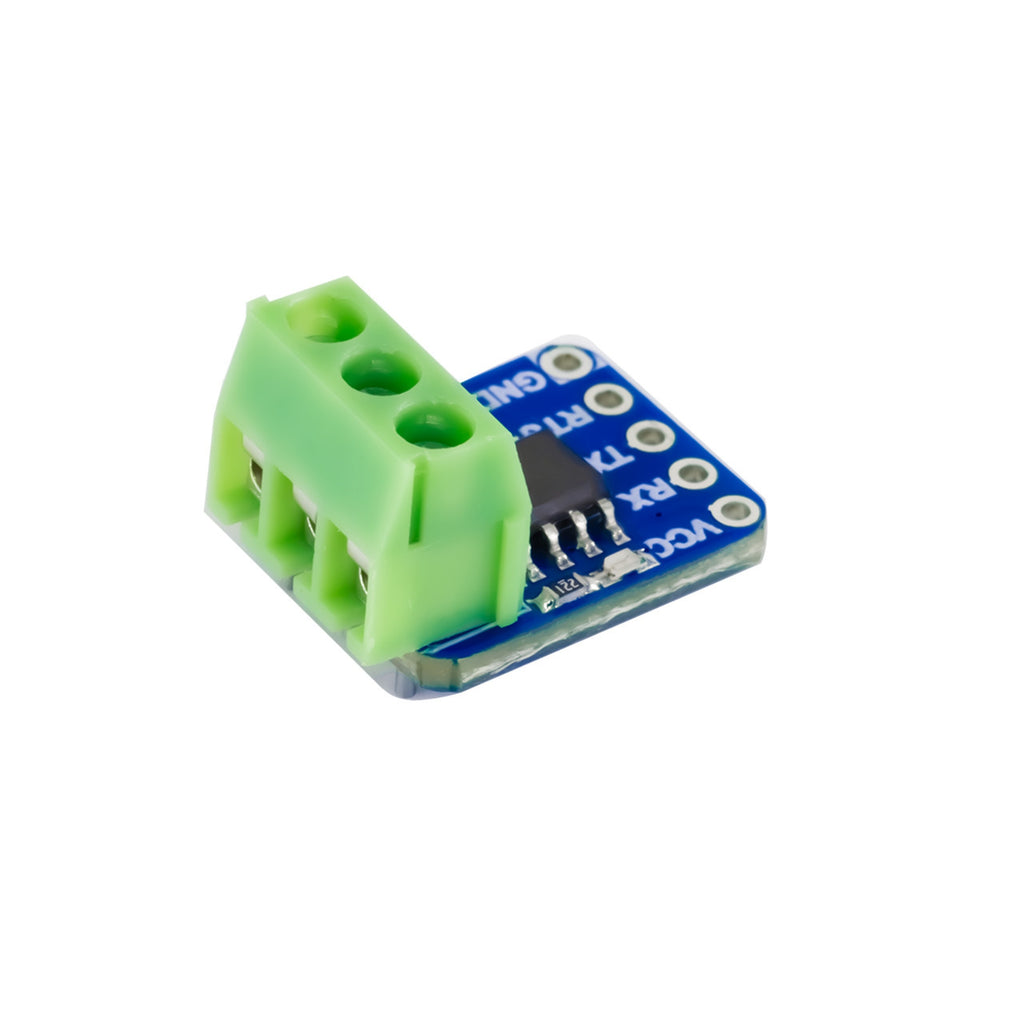

7Semi RS485 to UART Transceiver Breakout - SP485EEN-L/TR

The 7Semi RS485 to UART Transceiver Breakout – SP485EEN-L/TR is a robust and compact communication module designed for converting UART serial signals to RS485 differential signals. Based on the SP485EEN-L/TR transceiver chip, it enables reliable long-distance and noise-resistant data transmission over twisted-pair cables. The module supports half-duplex communication and is compatible with most microcontrollers, PLCs, and industrial control systems. It is ideal for applications requiring stable and high-speed serial communication in electrically noisy environments.

Technical Specifications:

• IC Chip: SP485EEN-L/TR

• Communication Standard: RS485 (half-duplex)

• UART Interface: TTL-level (RX, TX)

• Operating Voltage: 3.3 V to 5.0 V

• Data Rate: Up to 10 Mbps

• Bus Load: Supports up to 32 transceivers on the same bus

• Receiver Sensitivity: ±200 mV (differential input)

• Common-Mode Voltage Range: -7 V to +12 V

• Operating Temperature: -40°C to +85°C

• Interface Pins: RO (Receiver Output), RE (Receiver Enable), DE (Driver Enable), DI (Driver Input), A/B (RS485 differential pair)

• Protection: Built-in thermal shutdown and short-circuit protection

• Mounting Type: Through-hole or header pin compatible breakout PCB

• Dimensions: Compact, breadboard-friendly form factor

• PCB Material: High-quality FR-4 substrate

Features:

• Converts UART (TTL) to RS485 differential signal interface

• Based on industry-proven SP485EEN-L/TR transceiver

• Supports high-speed communication up to 10 Mbps

• Operates with both 3.3 V and 5 V logic systems

• Integrated protection against short circuits and thermal overload

• Noise-resistant and long-distance communication capability

• Compact and easy to interface with microcontrollers and SBCs

• Breadboard-friendly design for rapid prototyping
• Low power consumption with reliable performance in industrial environments

Applications:

• Industrial communication and automation systems

• RS485-based sensor and device networks

• Building management and HVAC control systems

• Long-distance UART communication links

• Modbus RTU and industrial protocol converters

• IoT gateways and embedded systems requiring RS485 connectivity

• PLCs, motor controllers, and data acquisition systems

• Educational and prototyping applications involving serial networking
