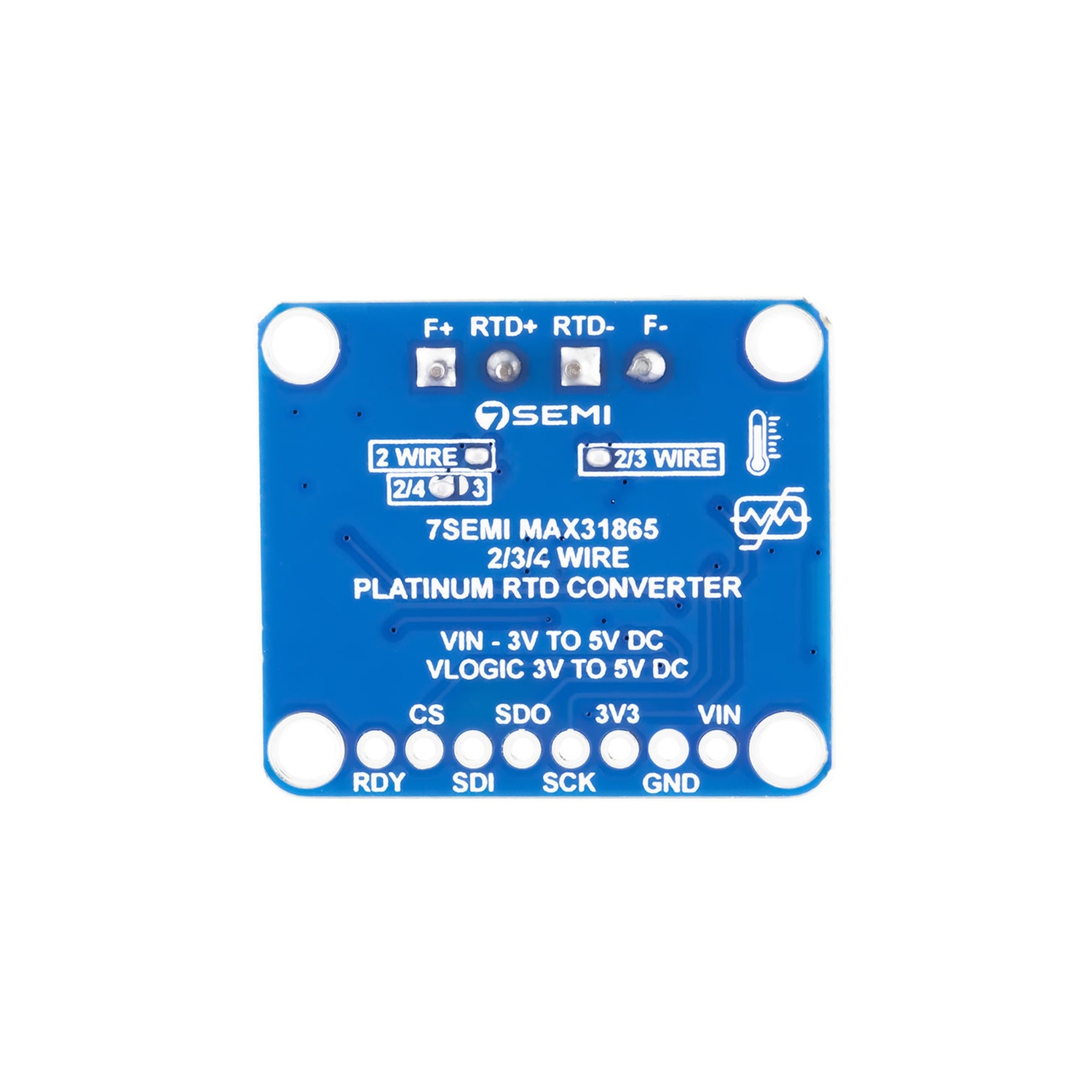

7Semi PT1000 RTD 2-Wire Temperature Sensor Amplifier Breakout Board - MAX31865

The 7Semi PT1000 RTD 2-Wire Temperature Sensor Amplifier Breakout Board is built around the MAX31865 RTD-to-digital converter, designed specifically for precision temperature measurement using PT1000 platinum RTD sensors. It accurately converts small resistance changes of the PT1000 into digital temperature values using an internal high-resolution ADC. Although designed as a 2-wire configuration, the MAX31865 also supports 3-wire and 4-wire RTD setups, offering flexibility for advanced applications. With SPI communication and compatibility with both 3.3V and 5V logic systems, this breakout is ideal for industrial, scientific, and embedded temperature-measurement applications.

Technical Specifications:

• Supported RTD Sensor: PT1000 (platinum resistance temperature detector)

• Supported Wiring: 2-wire (also supports 3-wire and 4-wire RTD methods)

• Interface: SPI digital communication

• Logic / Operating Voltage: 3.3V (compatible with 3.3V or 5V logic MCUs)

• ADC Type: 15-bit delta-sigma ADC integrated in MAX31865

• RTD Resistance Range Supported: 100Ω to 1000Ω (PT100 to PT1000)

• Conversion Time: ~21 ms per reading

• Fault Detection: Open-circuit RTD, short-circuit, cable fault detection

• Sensor Accuracy: High stability and repeatability due to platinum RTD characteristics

• Temperature Range: Supports the full PT1000 operating range (based on RTD characteristics)

• Communication: SPI for temperature data and fault reporting

Features:

• High-precision temperature measurement using PT1000 RTD

• MAX31865 RTD-to-digital converter eliminates need for external ADC

• Supports 2-wire, 3-wire, and 4-wire RTD connections

• SPI interface enables easy integration with microcontrollers (Arduino, ESP32, STM32, Raspberry Pi)

• Works with both 3.3V and 5V logic levels

• Built-in fault detection for open/short/cable issues

• High-resolution 15-bit ADC ensures accurate and stable readings

• Ideal for industrial, laboratory, and scientific environments

• Highly reliable and stable platinum RTD measurement

• Compact breakout board suitable for embedded systems and prototyping

Applications:

• Industrial process temperature monitoring

• Laboratory and scientific measurement systems

• HVAC and environmental control systems

• Embedded temperature-measurement projects

• Data-logging and long-term thermal monitoring

• Automation and industrial control loops

• Oven, furnace, heater, and climate-controlled systems

• IoT and smart-home temperature-tracking applications
