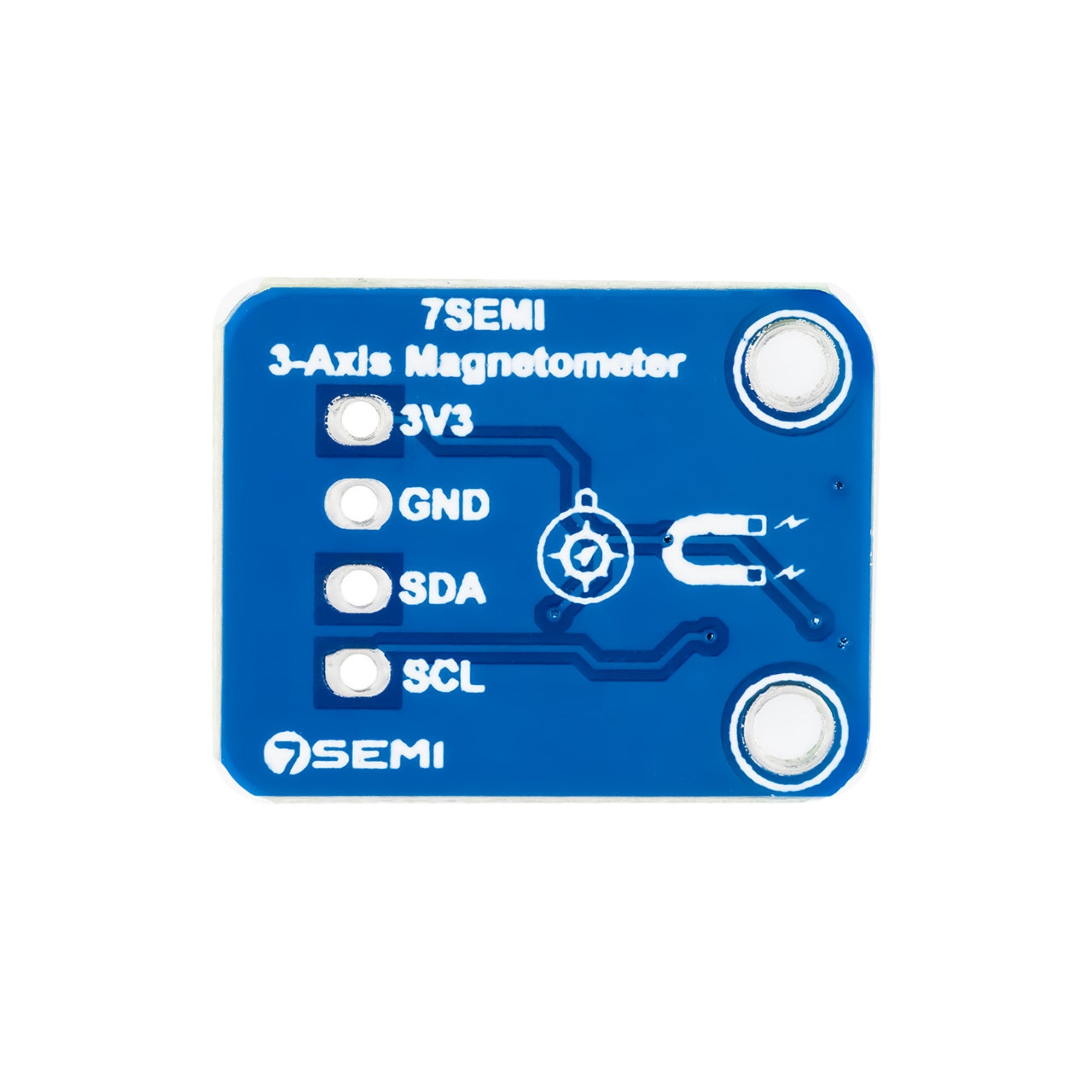

7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor

The 7Semi MMC5983MA Mini Magnetometer Breakout is a compact 3-axis magnetic-field sensing module based on the MMC5983MA sensor. It provides high-resolution, low-noise magnetic field measurements for X, Y, and Z axes with fast sampling rates and low power consumption. Its small size and stable performance make it ideal for digital compasses, navigation, robotics, drones, IoT devices, and magnetic-field detection applications.

Technical Specifications:

• Sensor IC: MMC5983MA (3-axis magnetometer)

• Measurement Axes: X, Y, Z

• Full-Scale Range: ±8 Gauss

• Resolution / Sensitivity: ~0.4 mG (18-bit output)

• Noise Level: ~0.4 mG RMS

• Output Data Rate: Up to 1000 Hz

• Interface: I²C (up to 400 kHz)

• Supply Voltage: 3.0V

• Power Modes: Low-power and power-down modes

• On-Chip Features: Degaussing (SET/RESET), temperature compensation, internal temperature sensor, data-ready interrupt

Features:

• High-resolution 3-axis magnetic field sensing

• Fast data rates suitable for motion tracking and navigation

• Wide ±8 Gauss dynamic range for accurate geomagnetic and magnetic-source detection

• Low-noise, stable digital output

• Built-in degaussing and compensation functions for consistent performance

• Low-power operation ideal for battery-powered systems

• Simple I²C interface for microcontroller integration

• Compact mini breakout suitable for robotics, wearables, and embedded designs

• Works well with sensor-fusion systems (IMU + magnetometer)

• Reliable long-term performance in varying environments

Applications:

• Digital compass and geomagnetic navigation

• Robotics orientation and heading sensing

• Drones/UAVs magnetometer-aided navigation

• Wearable devices and IoT motion sensors

• Magnetic anomaly detection and mapping

• Research instruments measuring magnetic fields

• Embedded systems requiring precise magnetic detection

• Metal detection and magnetic-field logging projects

• Sensor-fusion systems (AHRS, IMU-based navigation)

• Portable and low-power magnetic sensing devices
