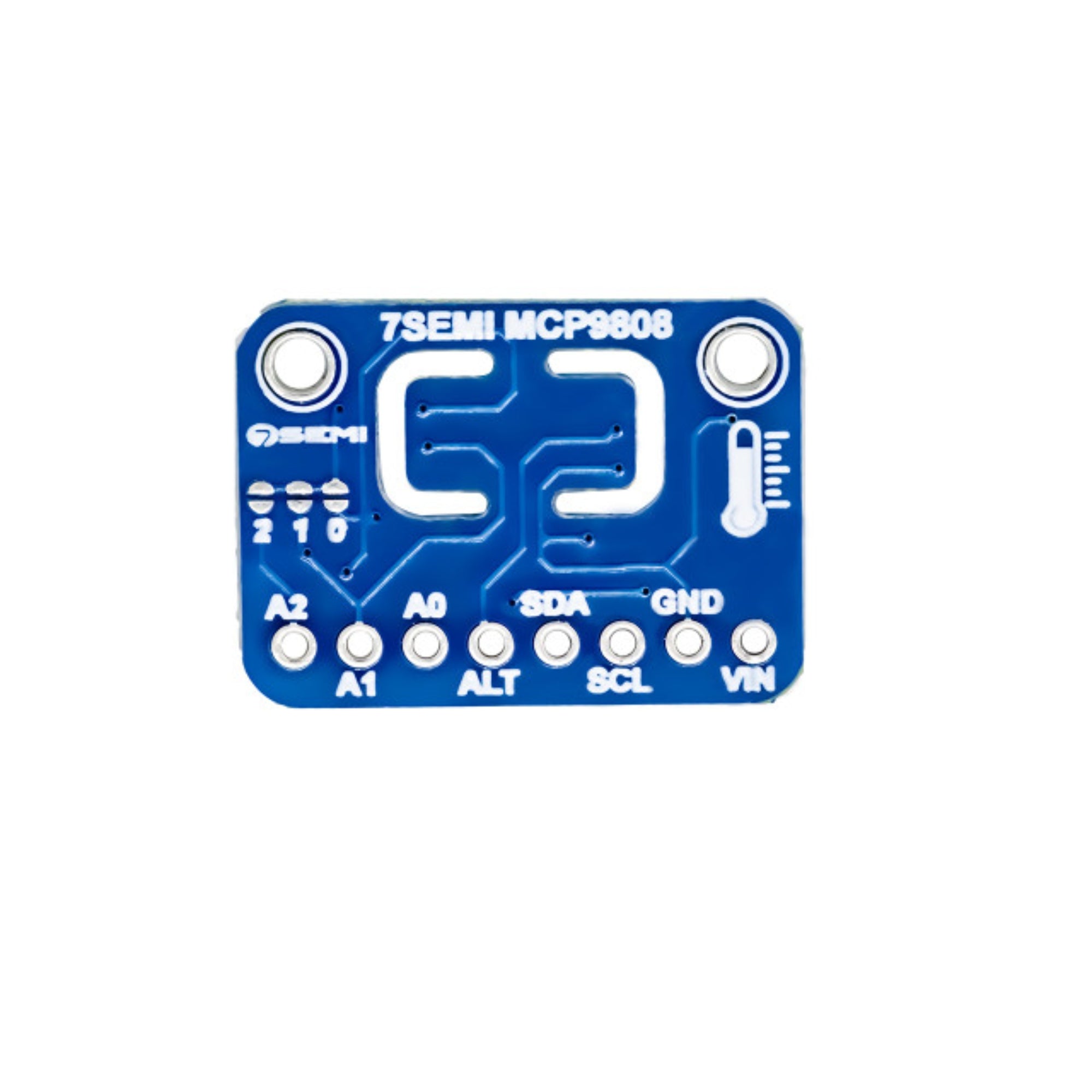

7Semi MCP9808 Max Accuracy I2C Temperature Sensor Breakout

The 7Semi MCP9808 Max Accuracy I²C Temperature Sensor Breakout is a high-precision, low-power digital temperature sensor module based on the Microchip MCP9808. It offers excellent accuracy, high resolution, and stable long-term performance. With I²C communication and programmable alert thresholds, this breakout is ideal for precision temperature monitoring in HVAC systems, industrial equipment, weather stations, IoT devices, and consumer electronics.

Technical Specifications:

• Sensor IC: MCP9808

• Measurement Type: Ambient temperature

• Operating Temperature Range: –40°C to +125°C

• Accuracy: ±0.25°C typical; ±0.5°C max (–20°C to +100°C); ±1°C at extremes

• Resolution: Programmable - 0.5°C, 0.25°C, 0.125°C, 0.0625°C

• Interface: I²C / SMBus

• I²C Speed: Up to 400 kHz

• Supply Voltage: 2.7V to 5.5V

• Operating Current: ~200 µA typical

• Alert Pin: Programmable upper, lower, and critical temperature thresholds

• Multi-Sensor Support: Up to 8 sensors on the same I²C bus (A0, A1, A2 address pins)

• Output Type: Fully calibrated digital temperature output

• Logic Compatibility: 3.3V and 5V systems

• Board Type: Compact breakout module

Features:

• High-accuracy temperature sensing with ±0.25°C typical precision

• Wide temperature range suitable for indoor, outdoor, and industrial uses

• High-resolution digital output (as fine as 0.0625°C)

• Supports multiple sensors on the same I²C bus

• Programmable alert thresholds for temperature monitoring and protection

• No external calibration required — factory-calibrated sensor

• Low power consumption for battery-powered applications

• Easy integration with Arduino, ESP32, STM32, Raspberry Pi

• Stable output with minimal drift over time

• Compact and reliable breakout ideal for embedded systems

Applications:

• HVAC, thermostats, and indoor climate monitoring

• Smart home and IoT temperature sensing

• Industrial and process temperature monitoring

• Weather stations and environmental monitoring

• Data logging and temperature profiling

• Consumer electronics (PCs, servers, appliances)

• Battery management and thermal protection

• Multi-zone temperature monitoring

• Laboratory and research instruments

• Embedded systems needing accurate digital temperature readings
