7Semi MAX-M10S Precision GNSS Modem, Industrial Grade: High-Accuracy GNSS Solution for Asset-tracking, IoT, Robotics, and Embedded Systems

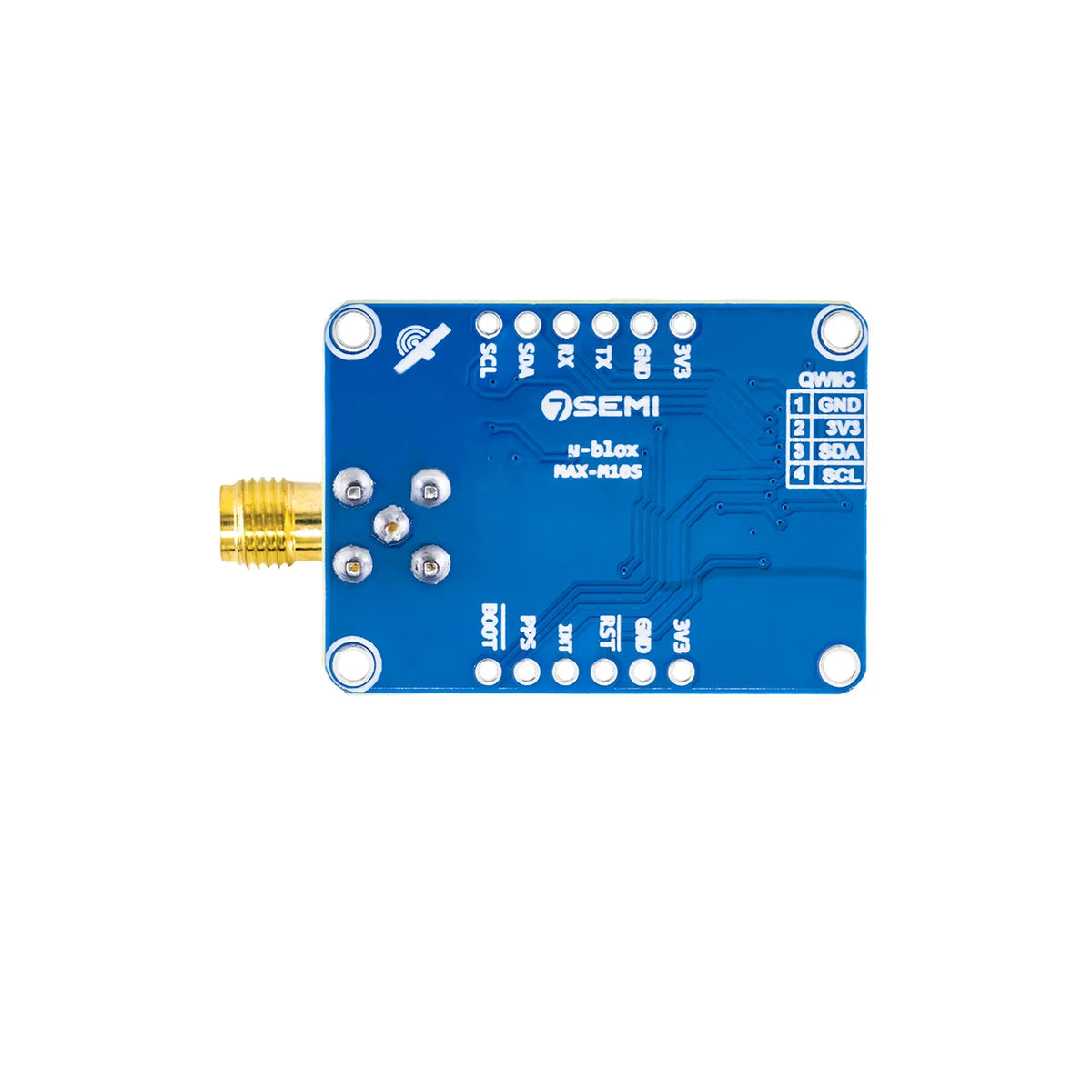

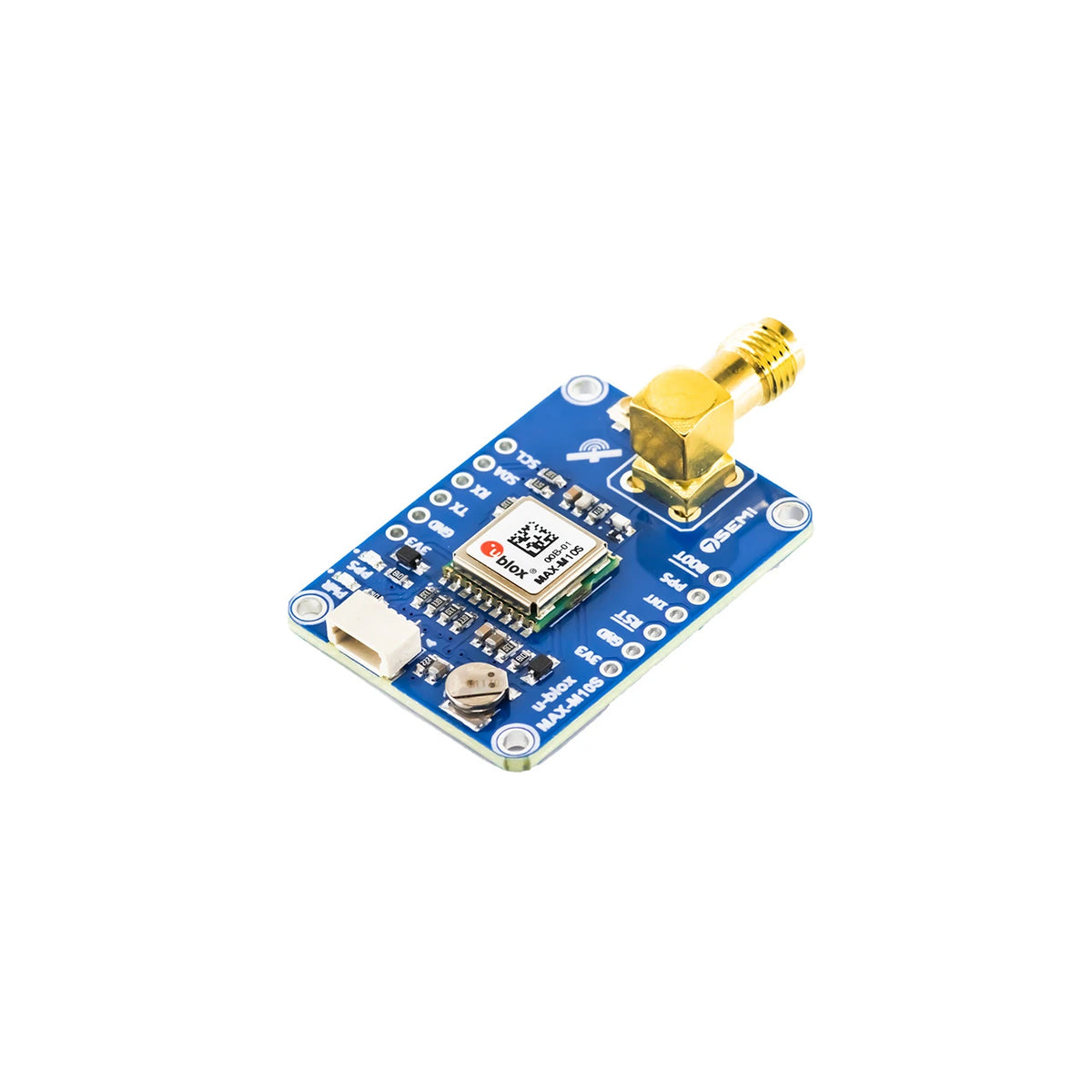

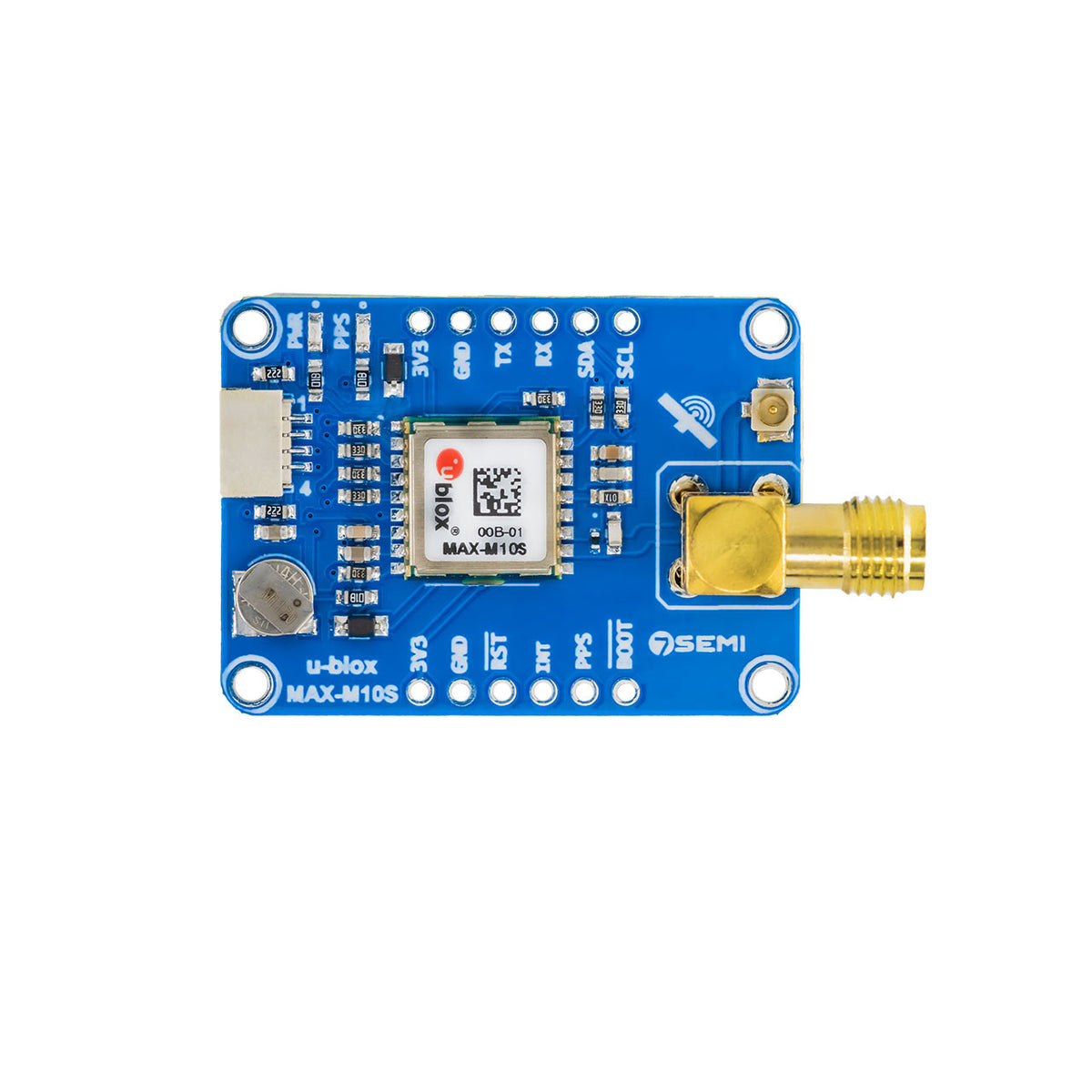

The 7Semi MAX-M10S Precision GNSS Modem, Industrial Grade is a high-accuracy satellite positioning breakout board based on the u-blox MAX-M10S GNSS receiver. It supports multiple satellite constellations including GPS, Galileo, GLONASS and BeiDou for reliable positioning and improved satellite availability. The board provides UART and I²C/Qwiic interfaces, external antenna support and low-power operation, making it suitable for IoT tracking, robotics, navigation and industrial embedded applications.

Technical Specifications:

• Brand: 7Semi
• GNSS Receiver: u-blox MAX-M10S
• Power Supply: 3.3V
• Position Accuracy: Approx. 1.5 m CEP
• Tracking Sensitivity: Approx. -167 dBm
• Maximum Update Rate: Up to 20 Hz
• GNSS Support: GPS, Galileo, GLONASS and BeiDou
• Interfaces: UART and I²C/Qwiic
• Antenna Connector: SMA Female
• Dimensions: Approx. 44.02 × 26.10 mm

Features:

• Multi-constellation GNSS positioning
• High positioning accuracy
• Low-power operation
• UART communication support
• I²C/Qwiic connectivity
• External GNSS antenna support
• Fast satellite acquisition
• Timepulse and reset connections
• Compact industrial-grade PCB
• Mounting holes for easy installation

Applications:

• IoT asset tracking
• GPS/GNSS tracking devices
• Robotics and autonomous systems
• Drone navigation
• Vehicle tracking and data logging
• Industrial monitoring systems
• Portable navigation equipment
• Location-aware embedded systems
• Fleet tracking systems
• Timing and positioning projects
