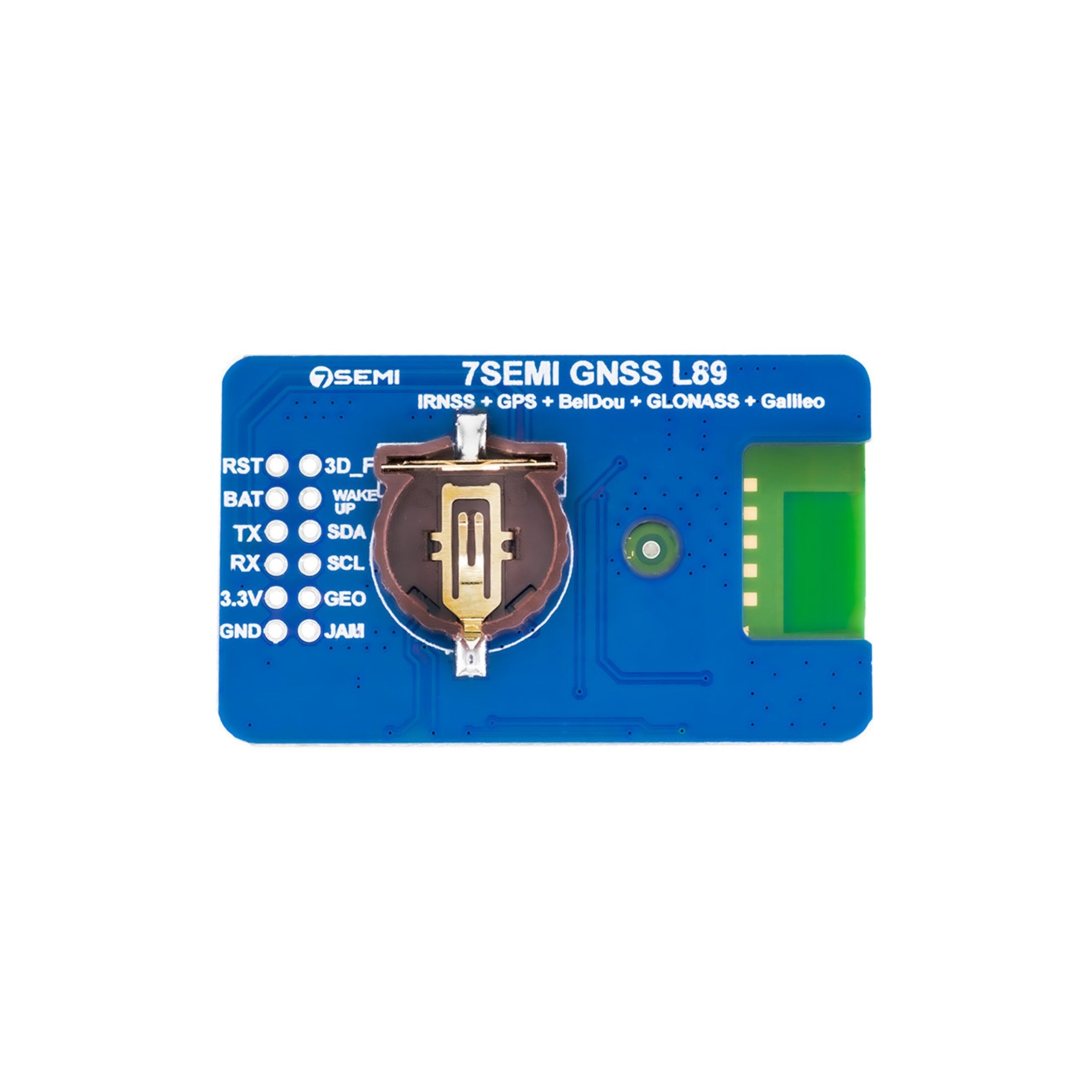

7Semi L89HA Breakout Multi-GNSS engines for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS

The 7Semi L89HA Breakout is a high-performance Multi-GNSS module that supports six satellite systems — GPS, IRNSS (NavIC), GLONASS, BeiDou, Galileo, and QZSS. It is built on the Quectel L89 chipset and designed for precise, reliable, and fast positioning. The breakout board integrates dual antennas (patch and chip), supports both UART and I2C communication, and includes a backup power input for maintaining satellite data and faster re-acquisition. It offers exceptional sensitivity and accuracy, making it ideal for navigation, tracking, and IoT applications.

Technical Specifications:

• Chipset: Quectel L89
• Power Supply: 3.1 V to 4.3 V (typical 3.3 V)
• Current Consumption: ~99 mA (acquisition), ~95 mA (tracking)
• Backup Mode Current: ~7 µA
• Communication Interfaces: UART and I2C
• Supported Systems: GPS (L1), GLONASS, BeiDou, Galileo, QZSS, IRNSS (L5)
• Sensitivity: Acquisition –147 dBm, Tracking –163 dBm, Reacquisition –156 dBm
• Position Accuracy: <1.8 m CEP (autonomous mode)
• Update Rate: Up to 10 Hz (default 1 Hz)
• Time to First Fix (TTFF): Cold start <32 s, Warm start <25 s, Hot start <2 s
• Operating Temperature: –40 °C to +85 °C
• Dynamic Limits: Altitude up to 18,000 m, Velocity up to 515 m/s, Acceleration up to 4 g
• Protocols: Standard NMEA-0183 and proprietary command support
• Antenna System: Dual antennas (patch + chip) with LNA, SAW filter, and anti-jamming circuitry
• Dimensions: Approximately 26.4 mm × 18.4 mm × 6.8 mm

Features:

• Multi-constellation support including IRNSS/NavIC
• Dual-antenna design for strong signal reception
• High positioning accuracy and fast satellite acquisition
• Anti-jamming and interference suppression
• Built-in LNA and SAW filter for signal enhancement
• Backup battery input for faster startup
• UART and I2C interface options for flexibility
• Compact and reliable design for embedded use

Applications:

• Drone and robotic navigation systems
• GPS trackers and fleet management solutions
• IoT devices requiring location data
• Precision agriculture and survey equipment
• Automotive and marine navigation
• Wearable and handheld tracking devices
• Timing and geolocation synchronization systems
