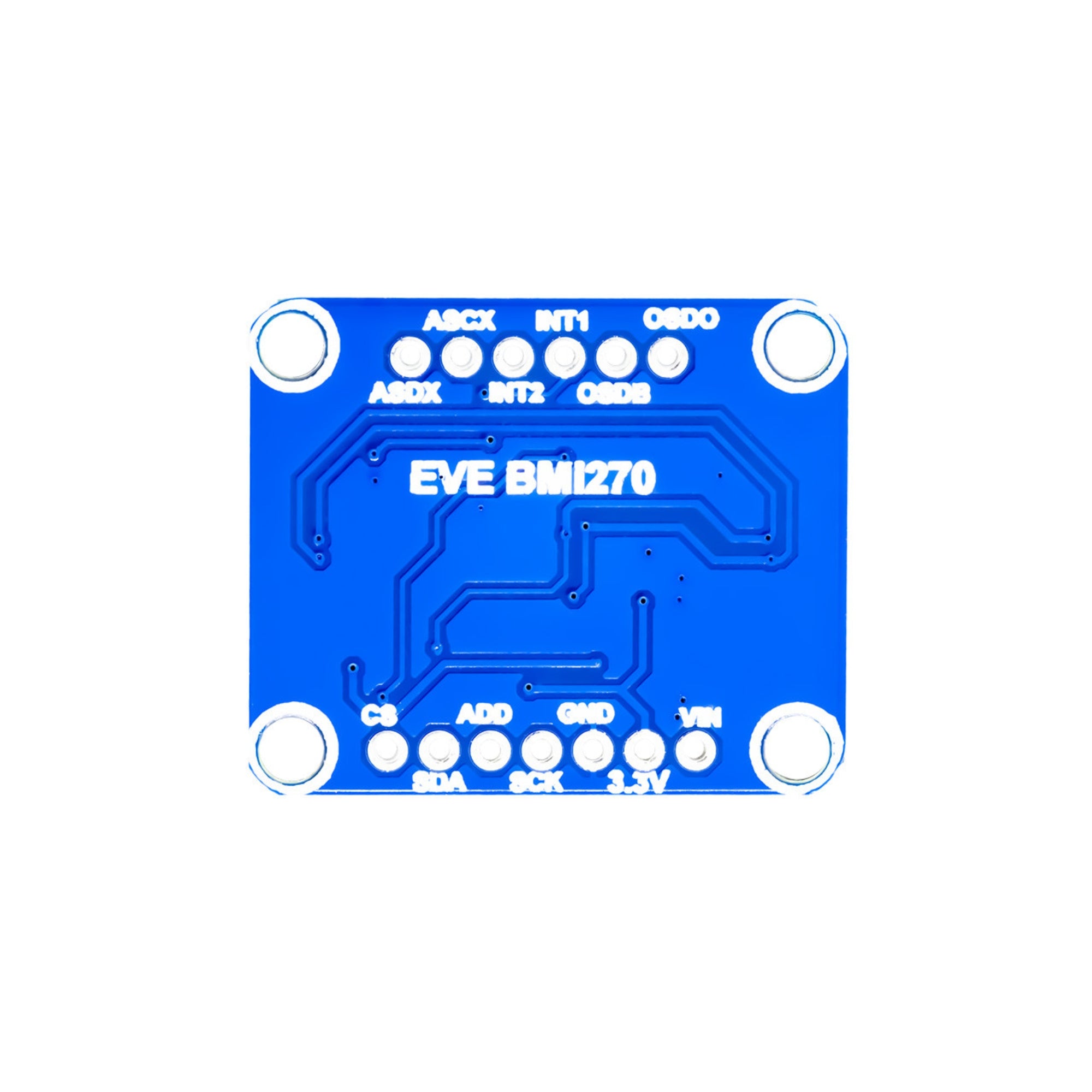

7Semi IMU BMI270 Accelerometer and Gyroscope Breakout STEMMA QT / Qwiic

The 7Semi IMU BMI270 Accelerometer and Gyroscope Breakout is a high-performance inertial measurement unit (IMU) based on the Bosch BMI270 sensor. It combines a 3-axis accelerometer and a 3-axis gyroscope to deliver precise motion, orientation, and rotational data. The module supports I²C communication and includes STEMMA QT / Qwiic connectors for easy plug-and-play integration with various microcontrollers and development boards. Designed for low power consumption and high accuracy, it is ideal for motion tracking, gesture detection, robotics, and wearable devices.

Technical Specifications:

• Sensor IC: Bosch BMI270

• Sensing Elements: 3-axis accelerometer and 3-axis gyroscope

• Interface: I²C and SPI compatible

• Supply Voltage: 1.7V to 3.6V (typical 3.3V)

• Communication Voltage: 1.2V to 3.6V logic compatible

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g (programmable)

• Gyroscope Range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s

• Output Data Rate: Up to 6.4kHz (selectable)

• Resolution: 16-bit for both accelerometer and gyroscope

• Power Consumption: 700µA in normal mode, <10µA in suspend mode

• Interface Connectors: STEMMA QT / Qwiic compatible 4-pin JST SH connectors

• Operating Temperature: -40°C to +85°C

• Mounting Type: Breakout board with 2.54mm pin headers

• Onboard Features: Integrated digital motion processor (DMP) for orientation and gesture recognition


Features:

• Combines 6-axis motion sensing in one compact module

• High-precision accelerometer and gyroscope with low noise

• Digital motion processor for real-time orientation tracking

• I²C and SPI communication options for flexible integration

• STEMMA QT / Qwiic connectors for solder-free setup

• Programmable sensitivity and output data rates

• Low power consumption suitable for portable devices

• High stability and low drift over temperature and time

• Compatible with Arduino, ESP32, STM32, and Raspberry Pi platforms

• Ideal for real-time motion tracking and inertial navigation

Applications:

• Motion sensing and orientation tracking in embedded systems

• Robotics and drone stabilization control

• Gesture detection and wearable devices

• Smart home and IoT movement-based applications

• Gaming controllers and motion-based input systems

• Navigation systems and positioning control

• Industrial automation and equipment monitoring

• Human activity recognition and step tracking

• Augmented reality (AR) and virtual reality (VR) systems

• Educational and research-based motion projects
