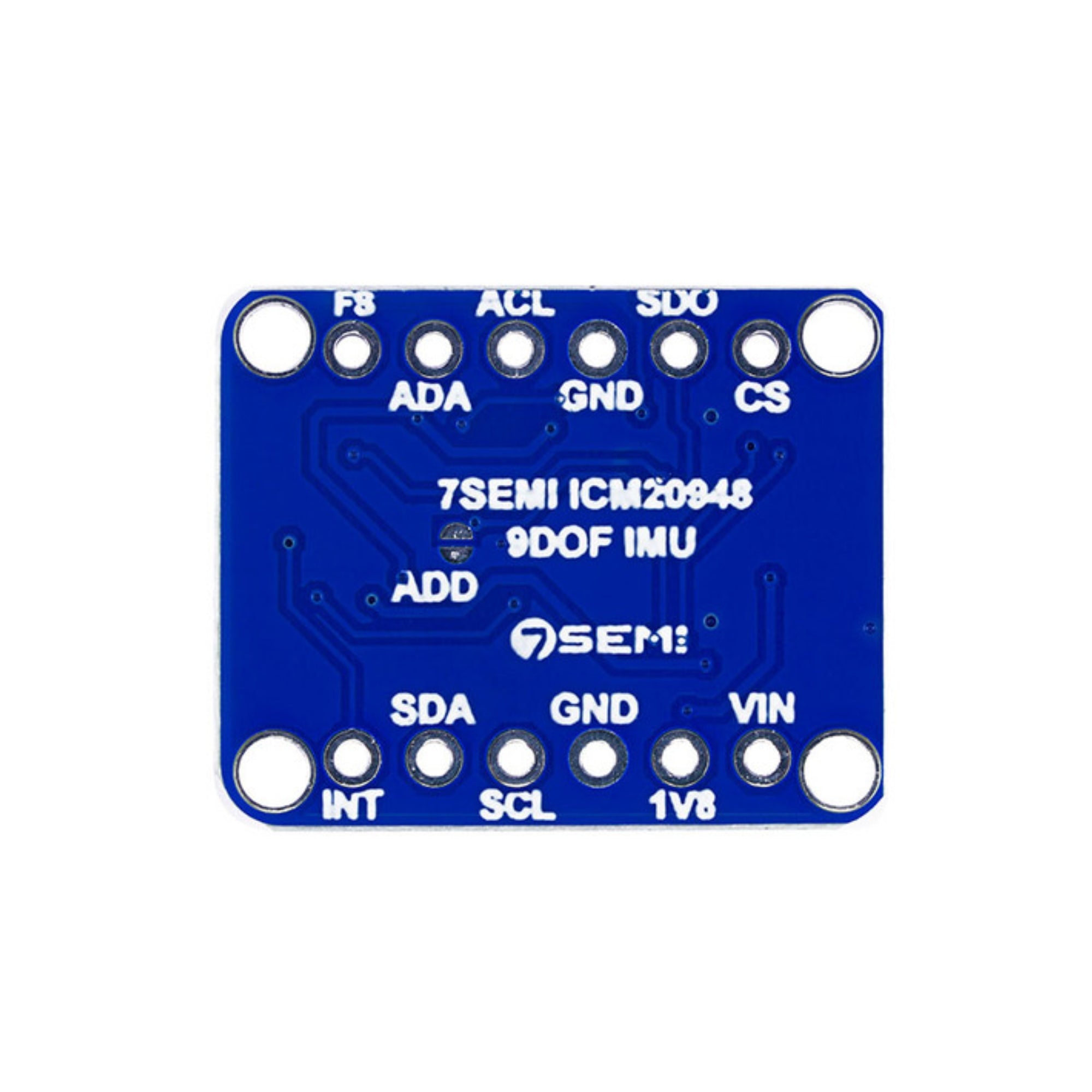

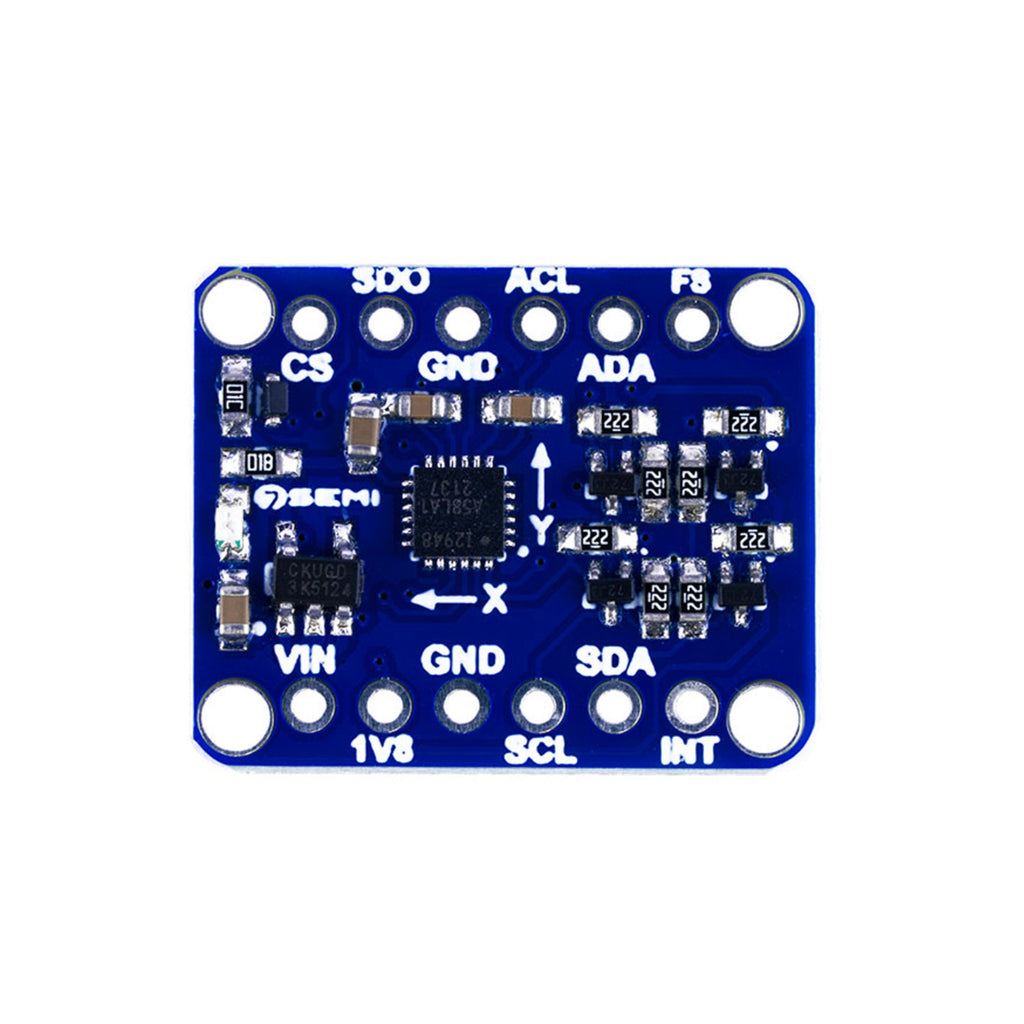

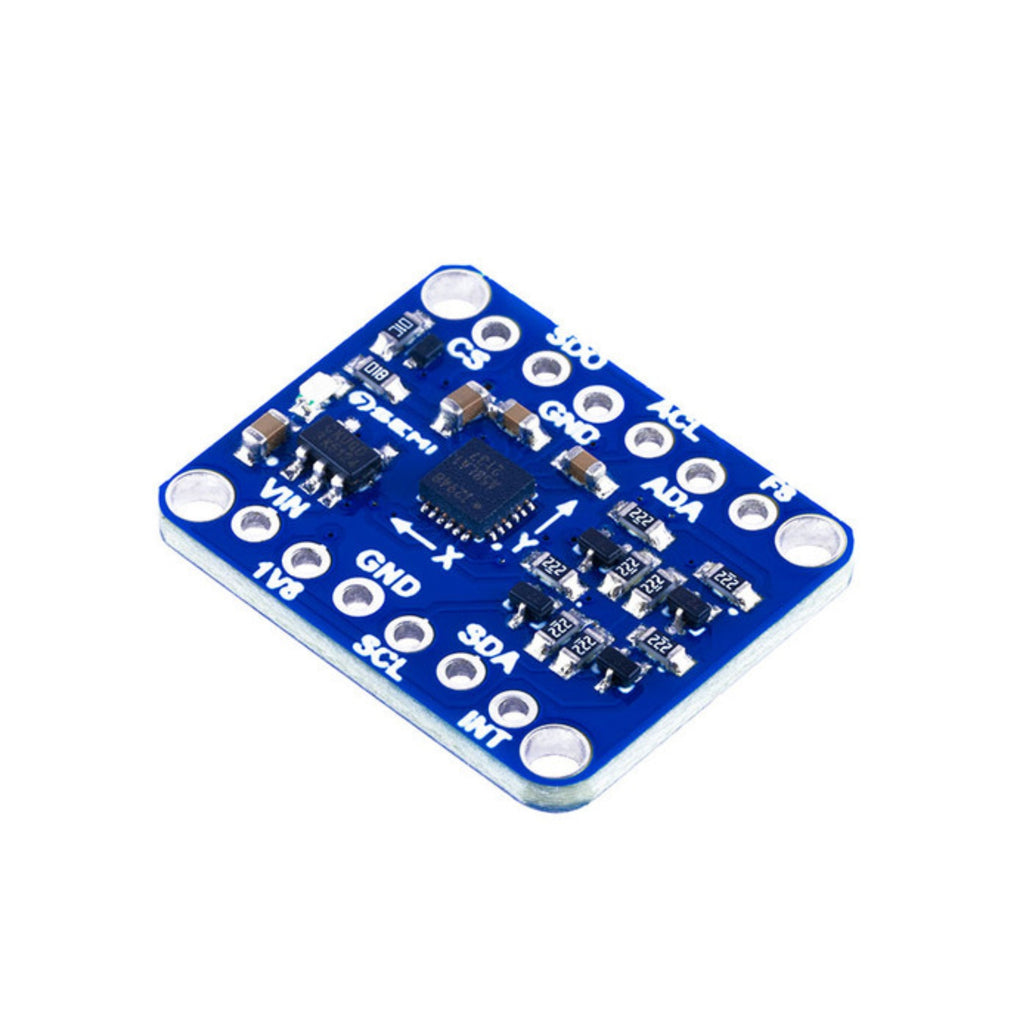

7Semi ICM-20948 9DoF IMU Breakout (MPU-9250 Upgrade)

The 7Semi ICM-20948 9DoF IMU Breakout is a high-performance motion sensor module that integrates a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer, offering a complete 9 Degrees of Freedom (9DoF) motion tracking solution. Based on the InvenSense ICM-20948 sensor — an upgraded version of the MPU-9250 — this breakout provides higher accuracy, lower power consumption, and improved noise performance. It communicates through an I²C or SPI interface, making it easy to integrate into embedded systems, robotics, drones, and IoT applications that require precise motion sensing and orientation tracking.

Technical Specifications:

• Sensor IC: InvenSense ICM-20948

• Measurement Axes: 9 DoF (3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer)

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g (selectable)

• Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s (selectable)

• Magnetometer Range: ±4900 µT

• Communication Interfaces: I²C (up to 400 kHz) and SPI (up to 7 MHz)

• Supply Voltage: 1.71 V to 3.6 V (typical 3.3 V)

• Current Consumption:
   – Accelerometer + Gyro active: ~1.1 mA
   – Low power mode: ~8 µA

• Digital Output: 16-bit ADC resolution for each sensor axis

• FIFO Buffer: 1 KB integrated for data logging

• Operating Temperature: -40°C to +85°C

• PCB Type: High-quality FR-4 with clearly labeled pin headers

• Dimensions: Compact, breadboard-friendly form factor

• Compatibility: Works with 3.3 V logic (Arduino, ESP32, STM32, Raspberry Pi, etc.)

Features:

• Combines accelerometer, gyroscope, and magnetometer for full 9DoF motion sensing

• Upgrade to the MPU-9250 with better accuracy and lower noise

• Selectable I²C or SPI communication for flexible system integration

• Wide measurement range for all three sensor types

• Integrated Digital Motion Processor (DMP) for onboard sensor fusion

• Low power consumption with multiple sleep and standby modes

• Compact, easy-to-use breakout for rapid prototyping

• Calibrated and temperature-compensated sensor outputs

• Compatible with popular embedded development platforms

Applications:

• Motion and orientation detection in robotics and drones

• Gesture recognition and wearable devices

• Navigation systems and inertial measurement units (IMUs)

• Virtual reality (VR) and augmented reality (AR) controllers

• Industrial and automotive motion tracking

• IoT-based motion sensing and smart devices

• Sports analytics and fitness monitoring systems

• Research, education, and embedded sensor fusion development
