7Semi FFC FPC 20 Pin Adapter Board PCB 0.5mm

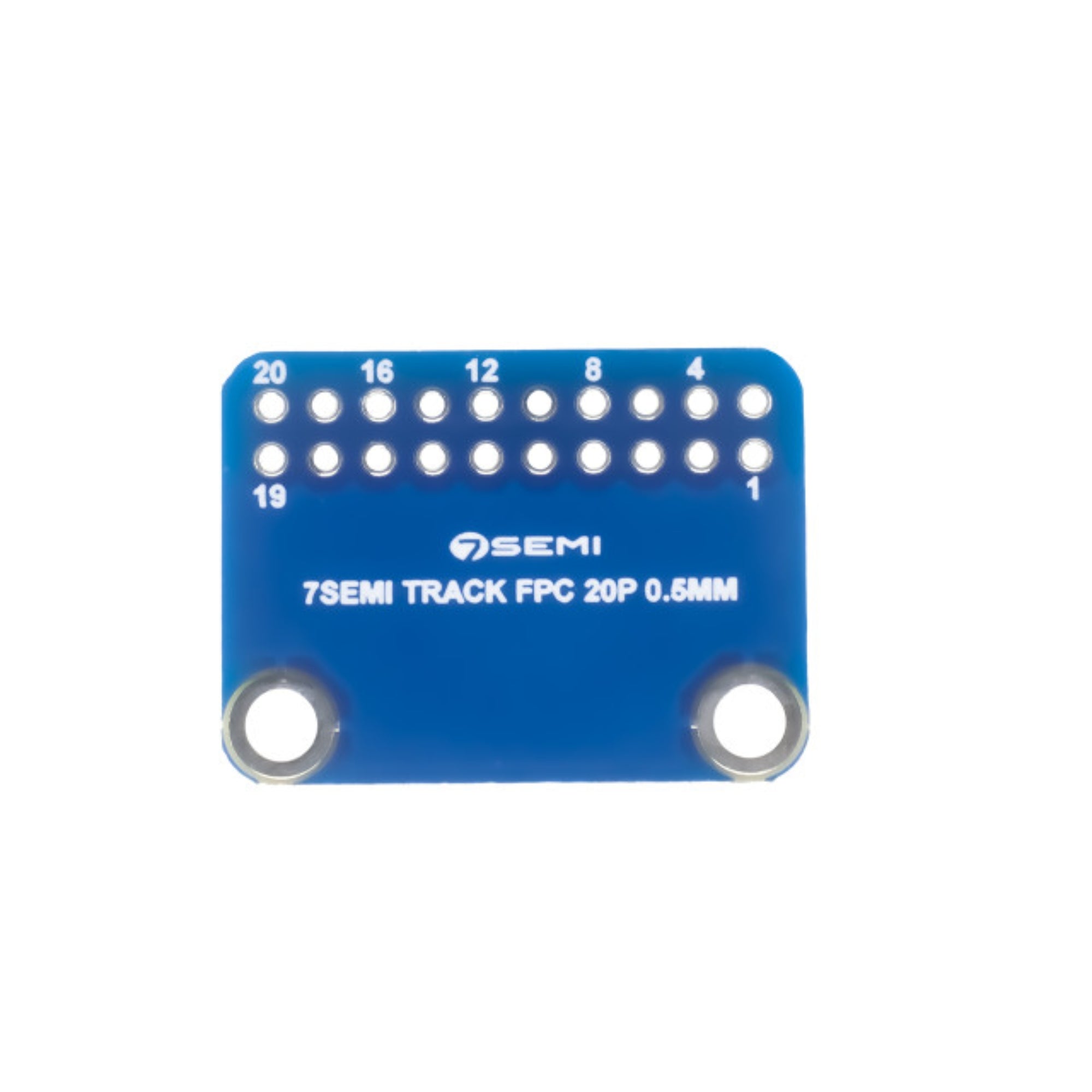

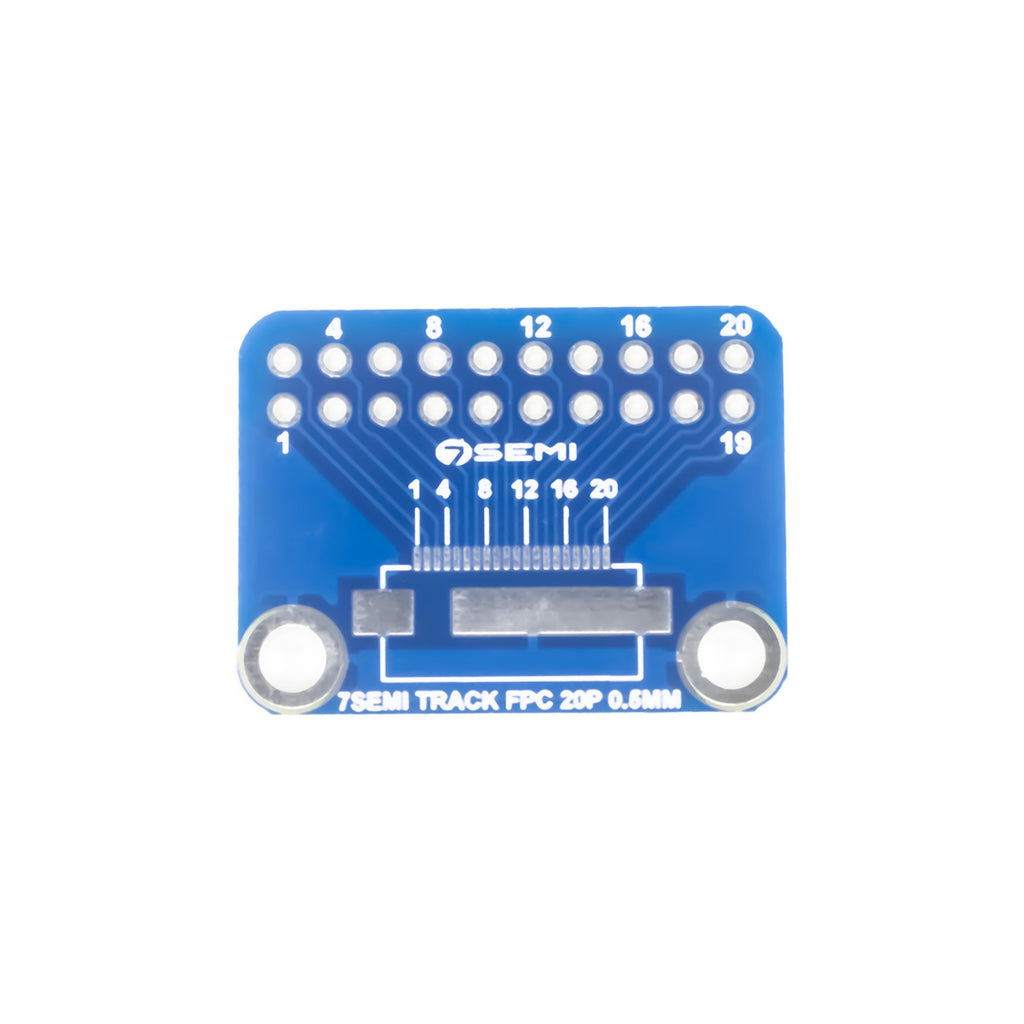

The 7Semi FFC/FPC 20-Pin Adapter Board is a passive breakout PCB designed to convert a 20-pin FFC/FPC cable (0.5 mm pitch) into a standard 2.54 mm (0.1") header or solder-pad layout. This allows easy interfacing of FFC-based modules such as displays, cameras, sensors, or other flat-cable devices with standard breadboards, perfboards, or custom PCBs — simplifying prototyping and wiring for small-pitch connectors.

Technical Specifications:

• Supported Connector: 20-pin FFC / FPC cable (0.5 mm pitch)

• Breakout Format: Converts all 20 signals to 2.54 mm header or pads / through-hole pins

• Board Type: Passive adapter / breakout PCB (no active components)

• Mounting Options: Standard 0.1" header pins or direct solder pads/traces

• Compatibility: Makes FFC/FPC modules compatible with standard prototyping boards, microcontroller boards, or custom PCBs

Features:

• Converts small-pitch 0.5 mm FFC/FPC connectors to standard 2.54 mm pitch — easier wiring, prototyping and integration.

• Supports 20 signal lines — suitable for larger FFC modules (displays, camera interfaces, etc.).

• Adapter board simplifies connection of flat-cable peripherals without needing custom PCB footprints.

• Compact adapter footprint — minimal overhead when adding to projects.

• Flexible integration: use header pins for plug-in setups, or solder pads/traces for permanent wiring.

Applications:

• Connecting displays, camera modules, or sensors using 20-pin FFC cables to microcontrollers / SBCs / custom PCBs.

• Prototyping and experimentation with FFC-equipped modules on breadboards or perfboards.

• Embedded projects requiring bridging between FFC modules and standard pin-out systems.

• DIY electronics and hobbyist applications involving FFC-based peripherals.

• Rapid prototyping or proof-of-concept designs before committing to full PCB layout with FFC footprint.
