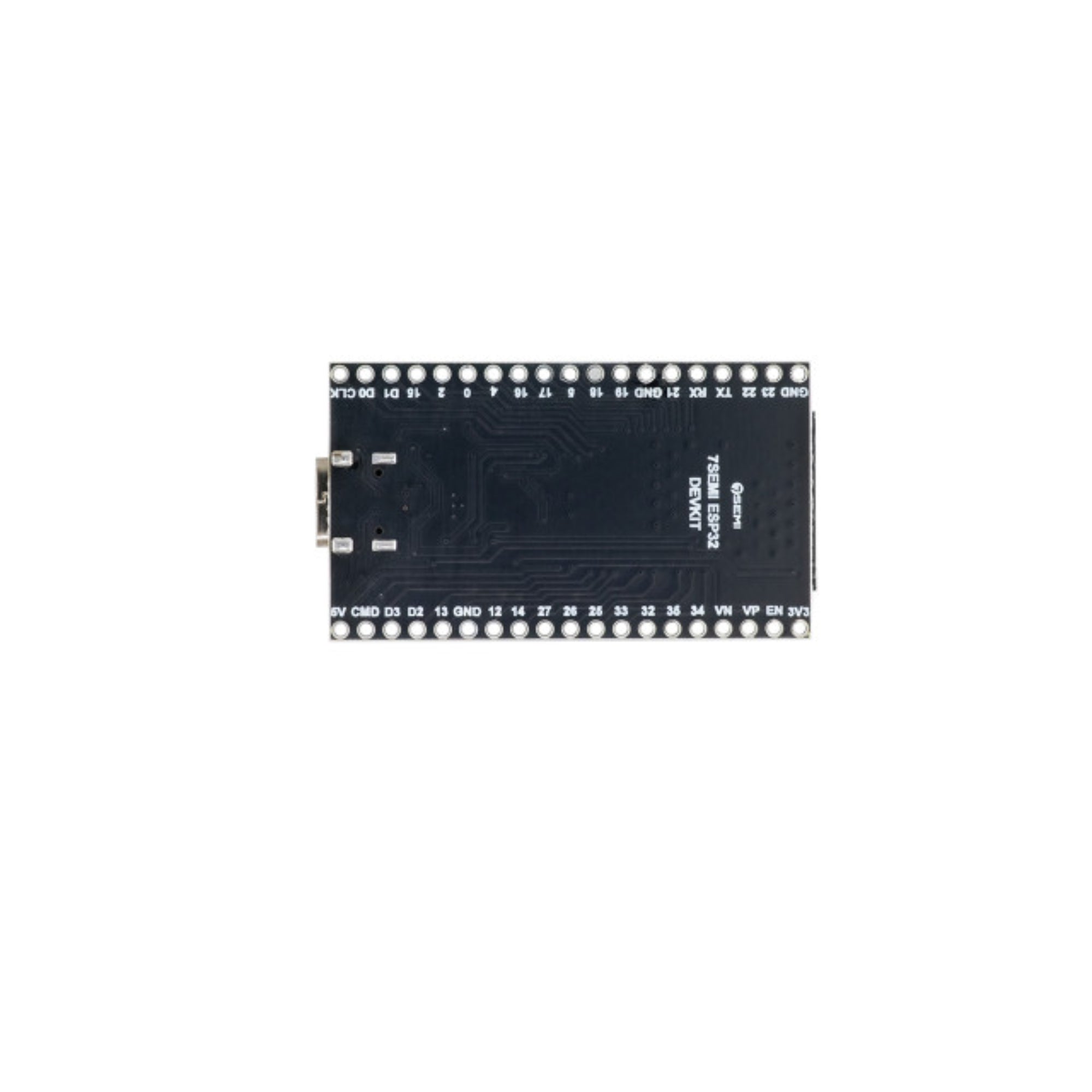

7Semi ESP32-DEVKIT-UE ESP32 Wifi BLE Development Board

The 7Semi ESP32-DEVKIT-UE is a versatile Wi-Fi and Bluetooth (BLE) development board based on the powerful Espressif ESP32 microcontroller. It integrates a dual-core 32-bit Xtensa LX6 processor capable of handling multiple tasks simultaneously while offering low power consumption and high performance. The board includes built-in Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 (BR/EDR + BLE) connectivity, making it ideal for IoT, smart home, automation, and wireless communication projects. Designed with a USB interface, onboard antenna, and full pin access, it provides a ready-to-use platform for rapid prototyping and embedded development.

Technical Specifications:

• Microcontroller: Espressif ESP32-WROOM-32 module

• CPU: Dual-core 32-bit Xtensa LX6 processor

• Clock Frequency: Up to 240 MHz

• Flash Memory: 4 MB (integrated)

• SRAM: 520 KB

• Connectivity: Wi-Fi 802.11 b/g/n and Bluetooth v4.2 (BR/EDR + BLE)

• Operating Voltage: 3.3 V

• Input Voltage: 5 V (via USB) or 3.3 V (via pin header)

• GPIO Pins: 30+ multipurpose I/O pins with PWM, ADC, DAC, UART, SPI, and I2C support

• Analog-to-Digital Converter (ADC): 12-bit, up to 18 channels

• Digital-to-Analog Converter (DAC): 2 channels

• Communication Interfaces: UART, SPI, I2C, I2S, CAN, PWM

• USB Interface: Micro-USB for programming and power

• Power Consumption: Ultra-low-power modes supported

• Operating Temperature: -40°C to +85°C

• Dimensions: Compact, breadboard-friendly layout

• Antenna: Integrated PCB antenna

• Compatibility: Works with Arduino IDE, ESP-IDF, and PlatformIO

Features:

• Dual-core processor with integrated Wi-Fi and BLE for high-speed wireless communication

• Large memory and peripheral support for complex IoT applications

• Onboard USB-to-Serial interface for programming and debugging

• Compatible with both 3.3 V and 5 V logic (input tolerant GPIOs)

• Integrated PCB antenna for strong wireless performance

• Supports deep-sleep and ultra-low power operation

• Breadboard-friendly design with clear pin labeling

• Fully compatible with Arduino, MicroPython, and ESP-IDF frameworks

• Reliable and easy-to-use development platform for rapid prototyping

Applications:

• IoT and smart home automation systems

• Wireless sensor networks and environmental monitoring

• Remote control and telemetry systems

• Robotics and automation projects

• BLE beacon and wireless communication devices

• Wi-Fi-enabled data logging and cloud connectivity

• Industrial and commercial IoT product development

• Educational and R&D embedded systems projects
