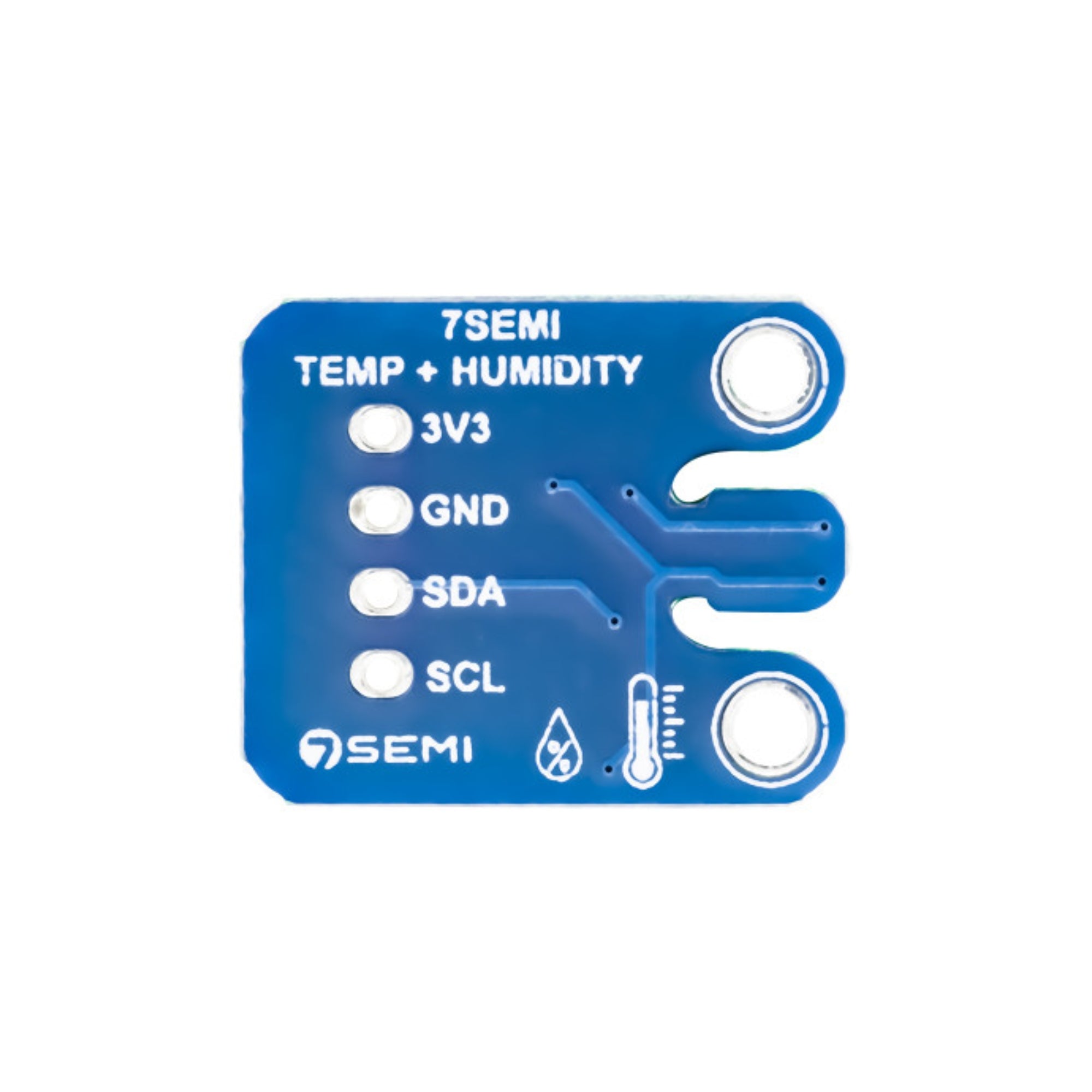

7Semi ENS210 Humidity and Temperature Sensor Breakout

The 7Semi ENS210 Humidity and Temperature Sensor Breakout is a compact digital environmental sensor module based on the ENS210. It provides accurate, factory-calibrated temperature and humidity readings through an I²C interface. With low power consumption, a wide operating range, and stable long-term performance, it is ideal for IoT devices, HVAC systems, indoor climate control, weather monitoring, and embedded applications requiring precise ambient condition measurement.

Technical Specifications:

• Sensor IC: ENS210

• Measurement Parameters: Temperature and Relative Humidity

• Temperature Range: –40°C to +100°C

• Temperature Accuracy: ±0.15°C typical

• Humidity Range: 0% to 100% RH

• Humidity Accuracy: ±2.0% RH typical

• Interface: I²C (100 kHz and 400 kHz supported)

• Supply Voltage: 1.71V to 3.60V (typical 3.3V)

• Power Consumption:
  Active Mode: ~6.6 µA (low sampling rate)
  Standby: ~40 nA

• Output Type: Fully calibrated digital output

• No external calibration required

• Compact digital sensor module

Features:

• Combined humidity and temperature sensing in a single module

• High accuracy and stable long-term performance

• Fully digital I²C interface for easy integration

• Ultra-low power consumption suitable for battery-powered systems

• Fast response time and reliable readings

• Factory-trimmed and calibrated sensor

• Wide operating temperature and humidity range

• Compact breakout ideal for IoT and embedded applications

• Works with microcontrollers such as Arduino, ESP32, STM32, Raspberry Pi

• Suitable for continuous environmental monitoring

Applications:

• HVAC and indoor climate control

• Smart home and IoT environmental sensors

• Weather stations and ambient monitoring

• Data logging systems

• Greenhouse and agricultural automation

• Storage and cold-chain monitoring

• Portable and wearable environment monitors

• Industrial and commercial environmental sensing

• Server rooms and warehouse climate control

• Research and laboratory instrumentation
