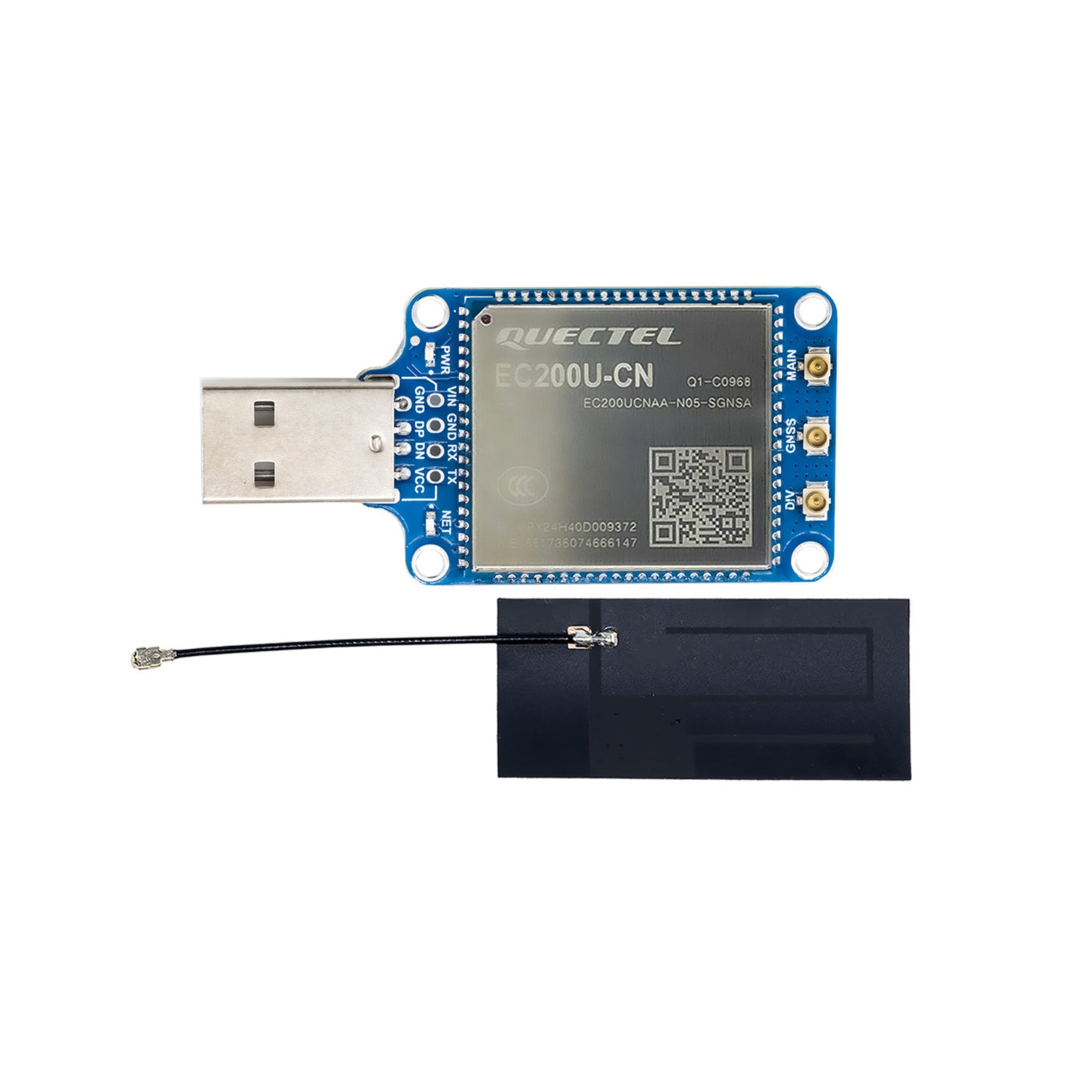

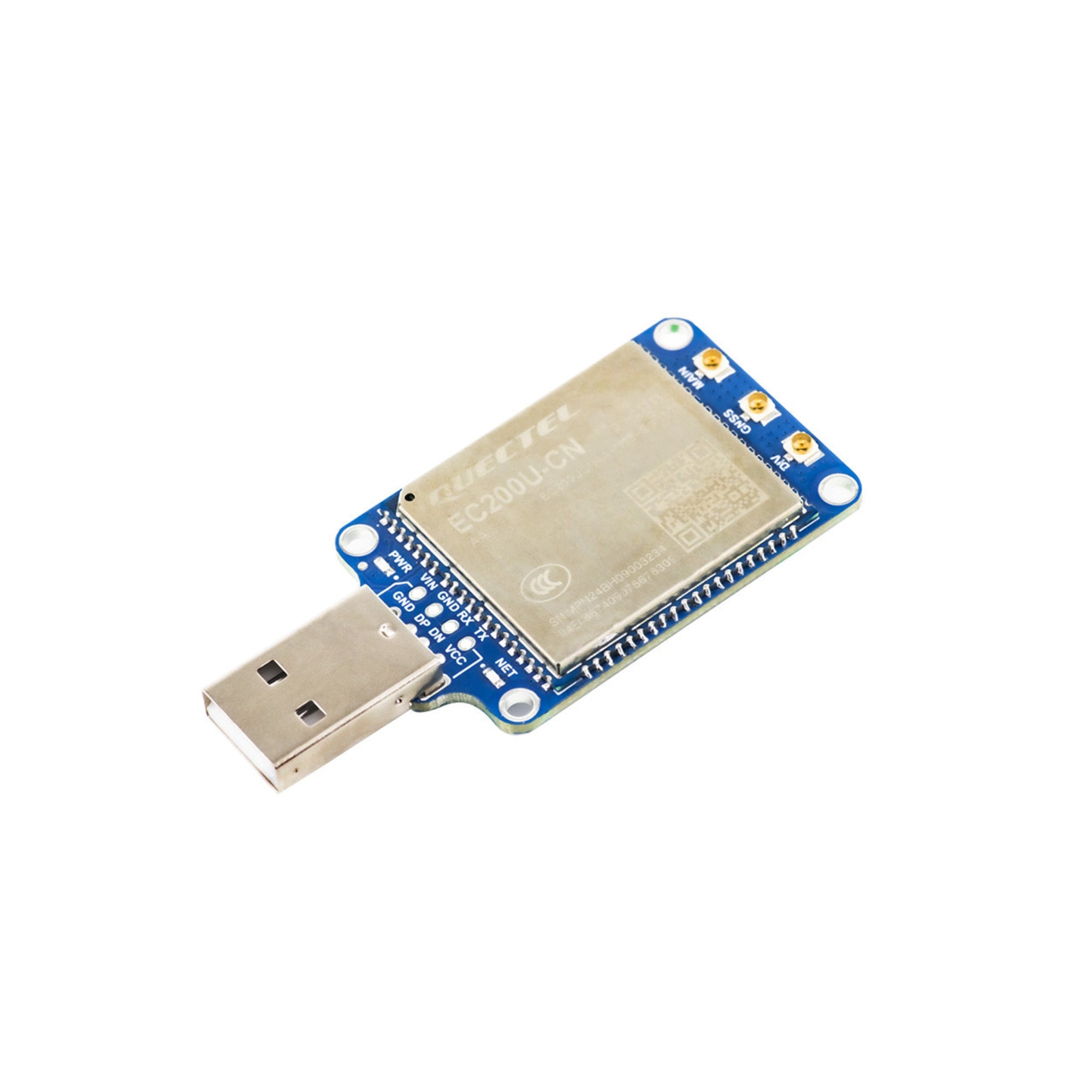

7Semi EC200U 4G LTE Cat 1 Dongle, GNSS Positioning

The 7Semi EC200U 4G LTE Cat 1 Dongle with GNSS Positioning is a compact industrial-grade communication dongle designed for IoT, tracking, telemetry, and remote data applications. It integrates LTE Cat-1 cellular connectivity with multi-constellation GNSS positioning in a USB dongle form factor, making it easy to plug into PCs, Raspberry Pi, gateways, and embedded systems without complex wiring. It supports data communication, GNSS real-time location tracking, and standard AT command control via USB or UART.

Technical Specifications:

• Cellular Standard: LTE Category 1
• Download Speed: Up to ~10 Mbps
• Upload Speed: Up to ~5 Mbps
• Supported Network Bands: LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41
• GNSS Support: GPS, GLONASS, BeiDou, Galileo, QZSS
• Interfaces: USB and UART
• SIM Type: Nano-SIM slot
• Operating Voltage: 5 V via USB
• Current Consumption: Peak ~1.8–2.0 A during transmission bursts
• Operating Temperature: –35 °C to +75 °C (approx)
• Dimensions: ~42.24 mm × 22.50 mm
• Protocol Support: TCP, UDP, FTP, HTTP, MQTT, SMS depending on firmware

Features:

• Plug-and-play LTE Cat-1 modem in dongle format
• Integrated GNSS for real-time positioning and tracking
• Supports USB for PC/SBC integration and UART for embedded systems
• Compact and rugged design for industrial applications
• Multi-constellation satellite reception improves accuracy and coverage
• Supports standard AT command control
• Suitable for both data and location-based IoT devices
• Flexible antenna support for LTE and GNSS

Applications:

• Vehicle and fleet tracking systems
• IoT gateways and remote monitoring devices
• Asset and logistics tracking
• Industrial automation and telemetry systems
• Portable smart devices needing mobile data and GNSS
• Smart city and smart infrastructure deployments
• Security, surveillance, and remote inspection equipment
• Raspberry Pi/embedded boards requiring plug-in 4G modem with GPS
