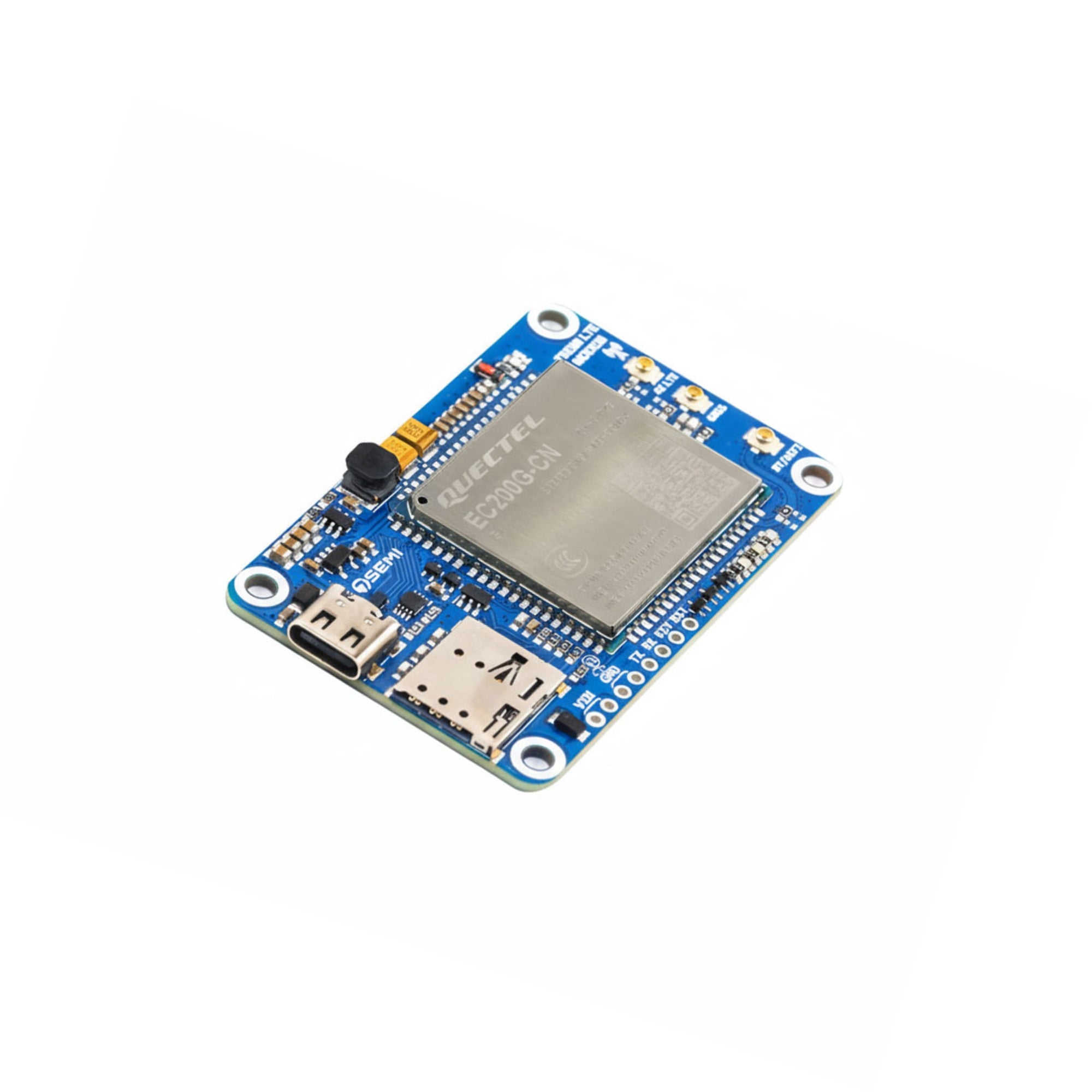

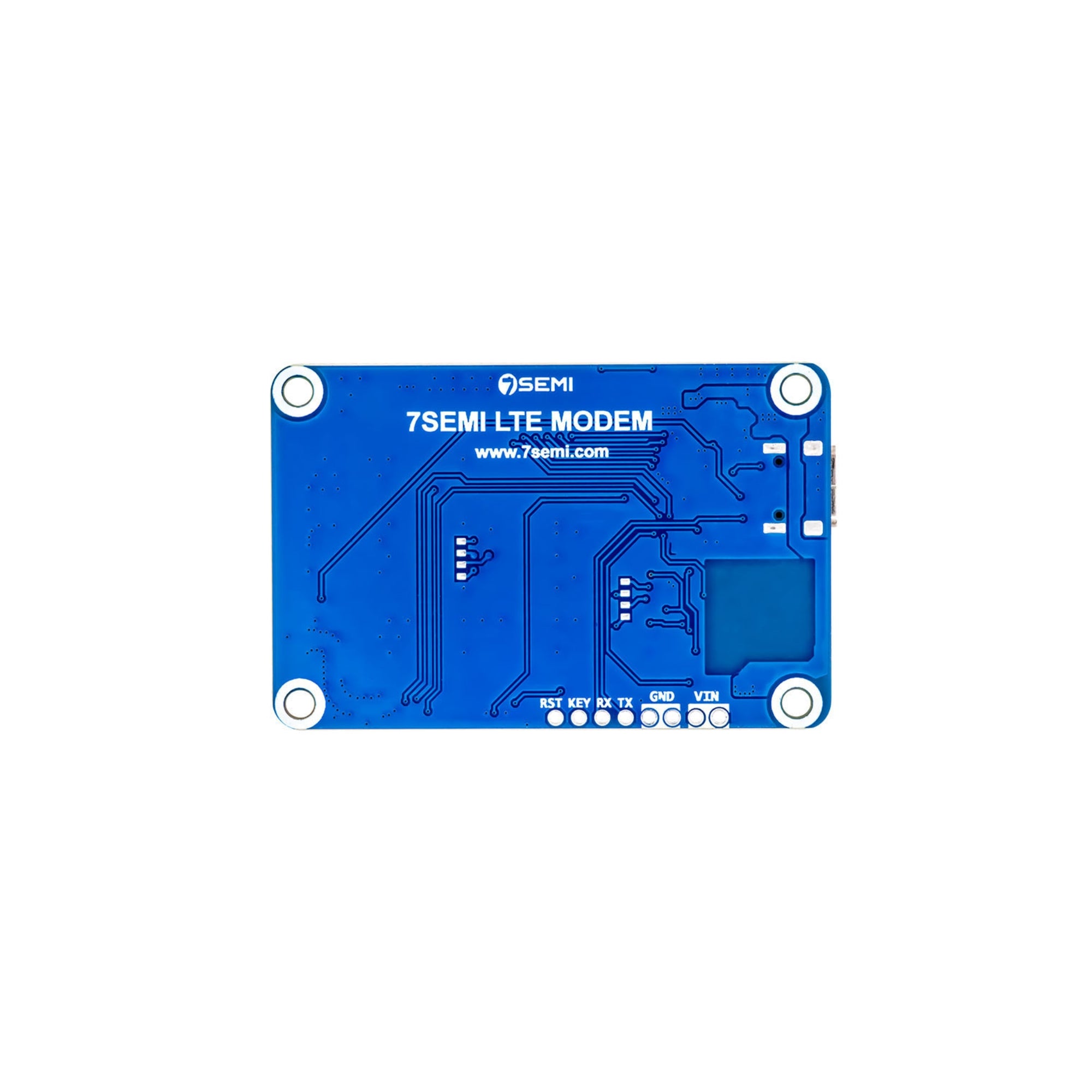

7Semi EC200G-CN LTE Cat 1 4G GNSS Mini Industrial Modem

The 7Semi EC200G-CN is a compact industrial-grade modem that integrates LTE Cat 1 wireless connectivity with GNSS positioning capability. Designed for IoT, M2M and embedded applications, it offers reliable data communication over 4G networks (with fallback to 3G/2G) and concurrent multi-GNSS support for positioning. With flexible power input and both USB-C and UART interfaces, the module simplifies integration into gateways, trackers, remote sensors and other connected systems.

Technical Specifications:

• Cellular Standard: LTE Category 1 bis (Cat1)
• Typical Downlink Speed: Up to ~10 Mbps
• Typical Uplink Speed: Up to ~5 Mbps
• Supported LTE-FDD Bands: B1, B3, B5, B8
• Supported LTE-TDD Bands: B34, B38, B39, B40, B41
• GNSS Support: Multi-constellation — GPS, GLONASS, BeiDou, Galileo, QZSS
• Interface Options: USB-C and UART
• Power Supply: 5 V via USB-C or external supply 5–26 V DC
• SIM Slot: Nano-SIM

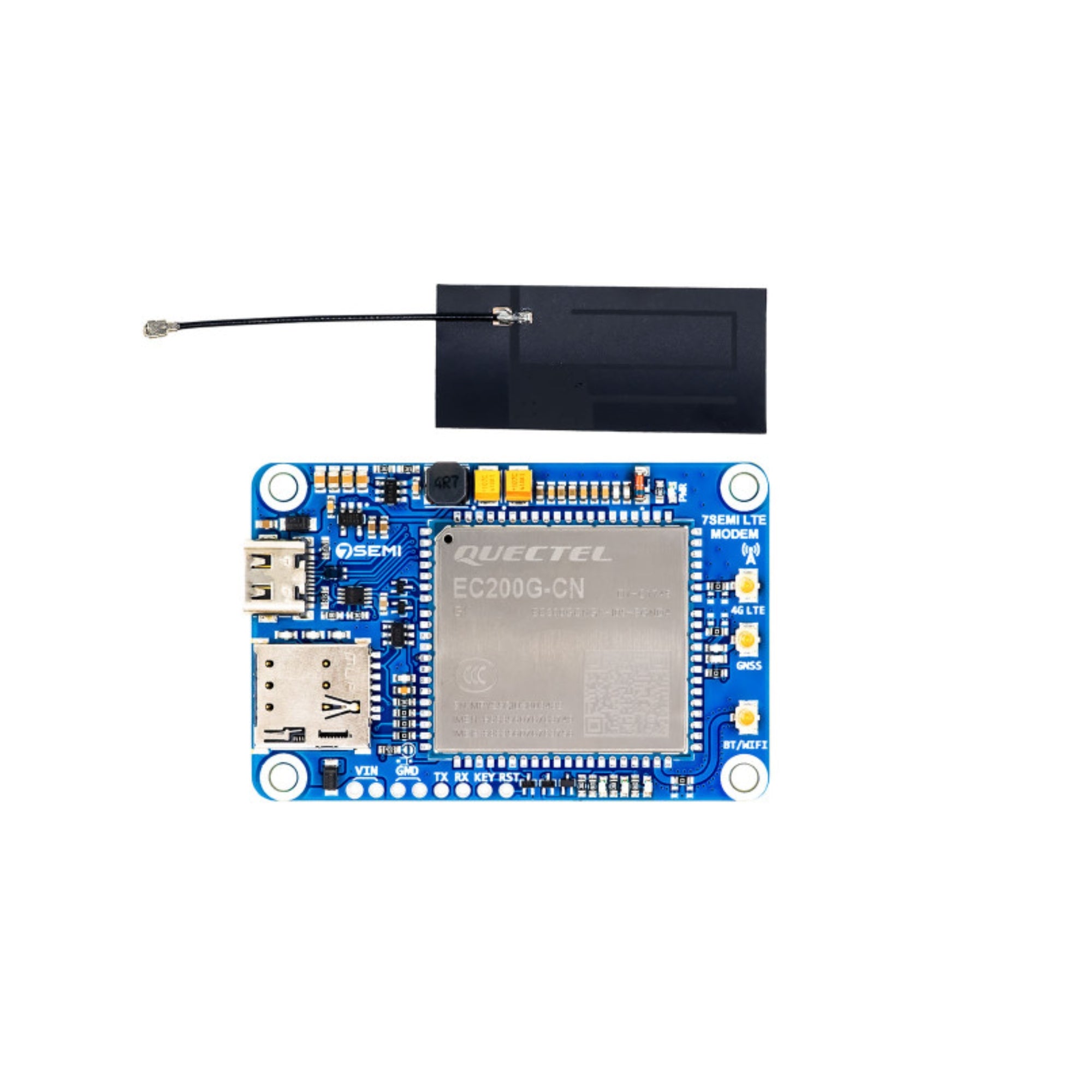

• Antenna Interface: FPC antenna (52 × 24 mm) + IPEX (u.FL) connector
• Operating Temperature: –40 °C to +85 °C
• Module Size (core) of EC200G family: ~28 mm × 31 mm × 2.4 mm (as per datasheet)
• Fallback: Cat1 → 3G → 2G compatibility

Features:

• High-reliability LTE Cat1 wireless connectivity suitable for industrial IoT
• Concurrent GNSS positioning with support for multiple global satellite constellations
• Wide power-input range (5–26 V) for flexible deployment in field environments
• Dual interface (USB-C + UART) for easy integration into development systems, gateways or PCs
• Rugged, compact nano-industrial modem design crafted for M2M applications
• Supports firmware-over-the-air (FOTA) for remote maintenance and upgrades
• Includes FPC antenna and IPEX connector for optimized signal reception
• Broad band support for both FDD and TDD networks, enabling global deployment

Applications:

• IoT gateways, remote sensors and telemetry in industrial automation
• Vehicle tracking and fleet management with embedded GNSS and LTE
• Smart metering and utility infrastructure requiring reliable connectivity and positioning
• Outdoor surveillance, smart-city and infrastructure monitoring systems
• Asset tracking, logistics, environmental monitoring where both data and location are critical
• Embedded modules in kiosks, vending machines, digital signage needing 4G connectivity and GPS
