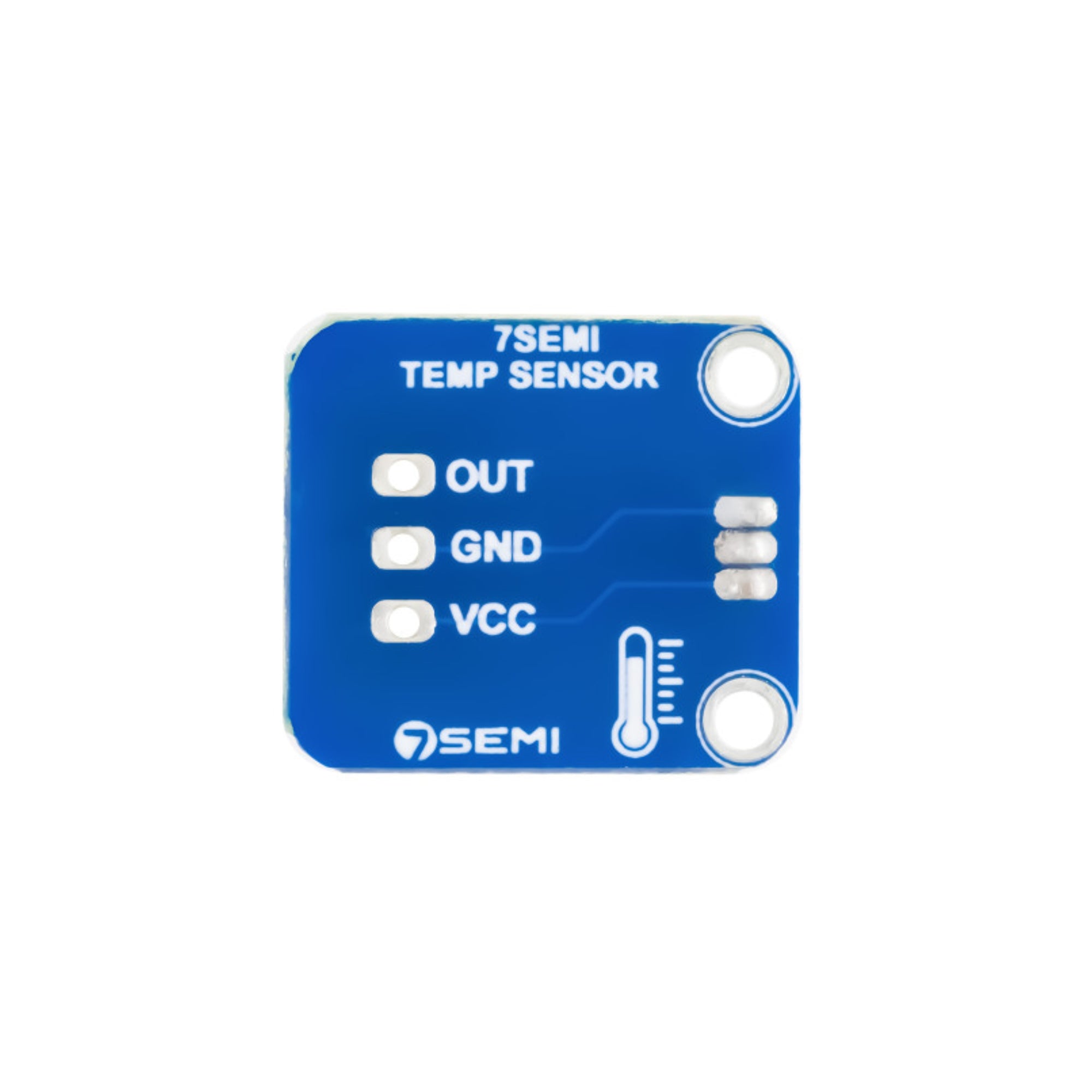

7Semi DS18B20+ 1-Wire Digital Temperature Sensor Breakout with 3Pin Connector

The 7Semi DS18B20+ 1-Wire Digital Temperature Sensor Breakout is a compact, accurate temperature-sensing module based on the DS18B20 digital sensor. It uses the 1-Wire protocol, allowing many sensors to share a single data line. The breakout includes a 3-pin connector for simple integration. With a wide temperature range, factory-calibrated digital output, and strong noise immunity, it is well-suited for HVAC, thermostats, IoT devices, data logging, and industrial temperature monitoring.

Technical Specifications:

• Sensor IC: DS18B20+

• Communication Protocol: 1-Wire digital interface

• Supply Voltage: 3.0V to 5.5V

• Temperature Range: –55°C to +125°C

• Accuracy: ±0.5°C (–10°C to +85°C)

• Resolution: Programmable 9-bit to 12-bit

• Output Type: Digital temperature reading

• Operating Current: Low-power consumption

• Connector: 3-pin (VCC, GND, DATA)

• Unique 64-bit serial ID per sensor

• Parasitic power mode supported

• No calibration required, factory-calibrated device

Features:

• Easy-to-use 1-Wire interface

• Precise temperature sensing with ±0.5°C accuracy

• Wide operating temperature range

• Programmable resolution for speed or precision

• Noise-immune, stable digital output

• Supports multiple sensors on one data line

• Compact 3-pin connector for quick wiring

• Works with Arduino, ESP32, STM32, Raspberry Pi

• Supports parasitic power operation

• Reliable long-term performance

Applications:

• HVAC and thermostat control

• Smart-home and IoT temperature monitoring

• Industrial temperature measurement

• Data logging and environmental tracking

• Server rack and electronics cooling systems

• Food storage and refrigeration

• Liquid temperature sensing (with waterproof housing)

• Battery and power-system thermal monitoring

• Weather stations and outdoor sensors

• Embedded systems needing accurate temperature data
