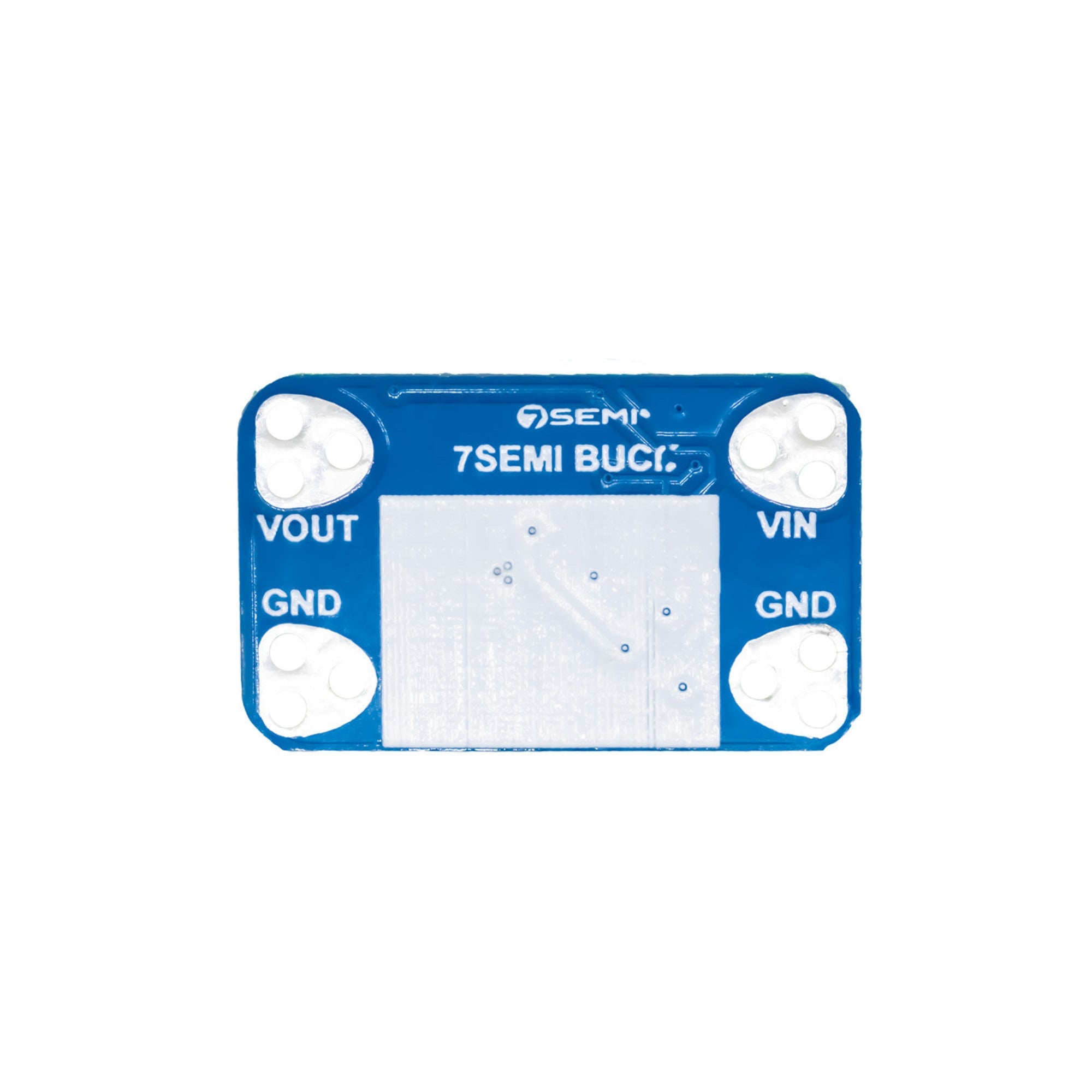

7Semi DC-DC Buck Converter 14V-60V Input to 5V 3A Output- AP66300

The 7Semi DC-DC Buck Converter (AP66300) is a high-performance step-down voltage regulator module designed to efficiently convert input voltages from 14 V to 60 V into a stable 5 V DC output with a maximum output current of 3 A. Built around the AP66300 synchronous buck converter IC, it delivers excellent efficiency, low output ripple, and robust protection features. The converter is ideal for industrial automation, battery-powered devices, automotive electronics, and embedded systems that require a reliable 5 V power rail from high-voltage sources.

Technical Specifications:

• Regulator IC: AP66300 (Diodes Incorporated)

• Conversion Type: Synchronous step-down (buck) converter

• Input Voltage Range: 14 V to 60 V

• Output Voltage: Fixed 5 V DC

• Output Current: Up to 3 A continuous

• Efficiency: Up to 90% (typical at rated load)

• Switching Frequency: 300 kHz (typical)

• Output Ripple: <50 mV (typical)

• Load Regulation: ±1%

• Line Regulation: ±0.5%

• Operating Temperature: -40°C to +125°C

• Protection Features:
   – Overcurrent protection (OCP)
   – Short-circuit protection (SCP)
   – Thermal shutdown (OTP)
   – Under-voltage lockout (UVLO)

• PCB Material: High-quality FR-4 with thick copper traces for current handling

• Cooling: Passive; heatsink optional under continuous high load


Features:

• Wide input voltage range (14 V to 60 V) for flexible application compatibility

• Fixed 5 V, 3 A regulated output ideal for powering logic and peripheral circuits

• High-efficiency synchronous buck topology for minimal power loss

• Built-in protection circuitry for safe and reliable operation

• Low output ripple suitable for sensitive analog and digital systems

• Compact, ready-to-use PCB design for quick integration

• Supports both industrial and automotive-grade environments

• Stable operation under dynamic load and line conditions

• Easy to interface with microcontrollers, sensors, and wireless modules

• Long operational life with thermally stable performance

Applications:

• Industrial automation and control equipment

• IoT and embedded electronic systems

• Automotive and vehicular electronics power supply

• Robotics, drones, and motor control circuits

• LED drivers and display systems

• Battery-powered and solar-based applications

• Communication and networking devices

• Power supply for Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Portable instruments and field-deployable devices

• Test benches, lab instrumentation, and educational electronics
