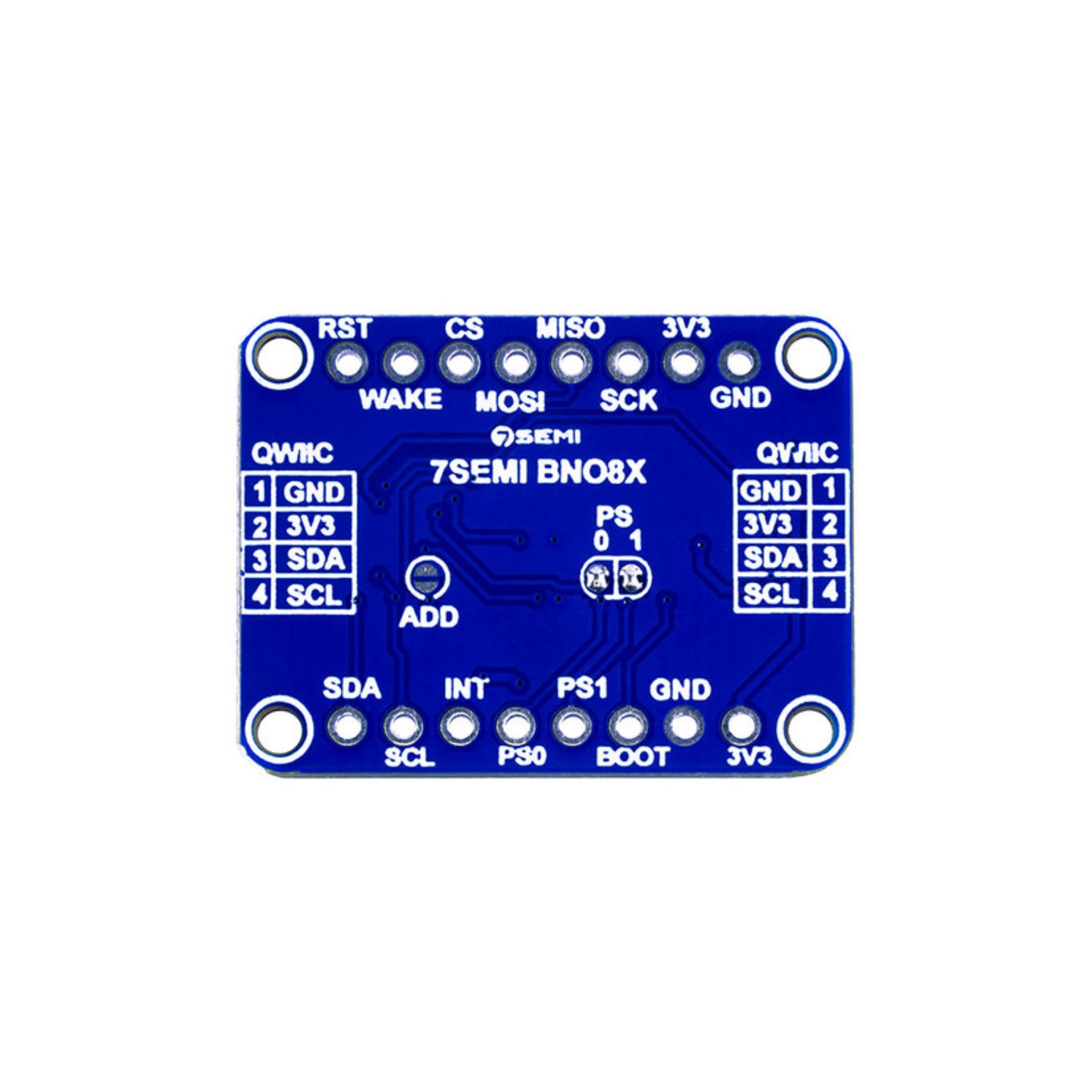

7Semi BNO085 9-DOF Orientation IMU Fusion Breakout Qwiic

The 7Semi BNO085 9-DOF Orientation IMU Fusion Breakout (Qwiic) is a compact, high-performance 9-axis motion sensor module integrating a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. It includes an onboard processor running advanced sensor-fusion firmware to provide ready-to-use orientation data such as quaternions, Euler angles, rotation vectors, linear acceleration, and gravity vectors. With Qwiic connectors for solder-free integration, it is ideal for robotics, drones, AR/VR, motion control, and IoT applications.

Technical Specifications:

• Sensor Type: 9-DOF IMU (accelerometer + gyroscope + magnetometer)

• Fusion Engine: Onboard SH-2/BNO08x sensor-fusion processor

• Accelerometer Range: ±8 g

• Gyroscope Range: ±2000 °/s

• Magnetometer Range: ±8 Gauss

• Interfaces: I²C (Qwiic), SPI, optional UART

• Supply Voltage: 3.3V

• Output Data Types: acceleration, angular velocity, magnetic field, rotation vector, game rotation vector, quaternions, Euler angles, linear acceleration, gravity vector

• Output Rates: gyro vector up to ~1000 Hz, rotation/game vectors up to ~400 Hz, accelerometer up to ~500 Hz, magnetometer up to ~100 Hz

• Calibration: Supports automatic and manual calibration modes

• Qwiic Connectors: JST-SH plug-and-play

Features:

• Full 9-axis orientation sensing with onboard fusion

• Provides drift-corrected quaternions and Euler angles

• Qwiic plug-and-play interface for fast, solder-free wiring

• High sampling rates for real-time motion tracking

• Multi-interface support for flexible integration

• Stable long-term calibration and low drift

• Compact breakout suitable for embedded and wearable devices

• Low-power consumption, ideal for battery-powered designs

• Compatible with Arduino, ESP32, STM32, Raspberry Pi, and more

• Excellent for accurate, low-latency motion sensing applications

Applications:

• Robotics navigation, stabilization, and control

• Drones and UAV attitude sensing

• AR/VR head tracking and motion controllers

• Wearable motion-tracking devices

• IoT systems requiring orientation feedback

• Gesture and activity recognition

• Indoor navigation and dead-reckoning

• Gaming controllers and interactive devices

• Research, prototyping, and motion analysis

• Smart consumer devices responding to movement
