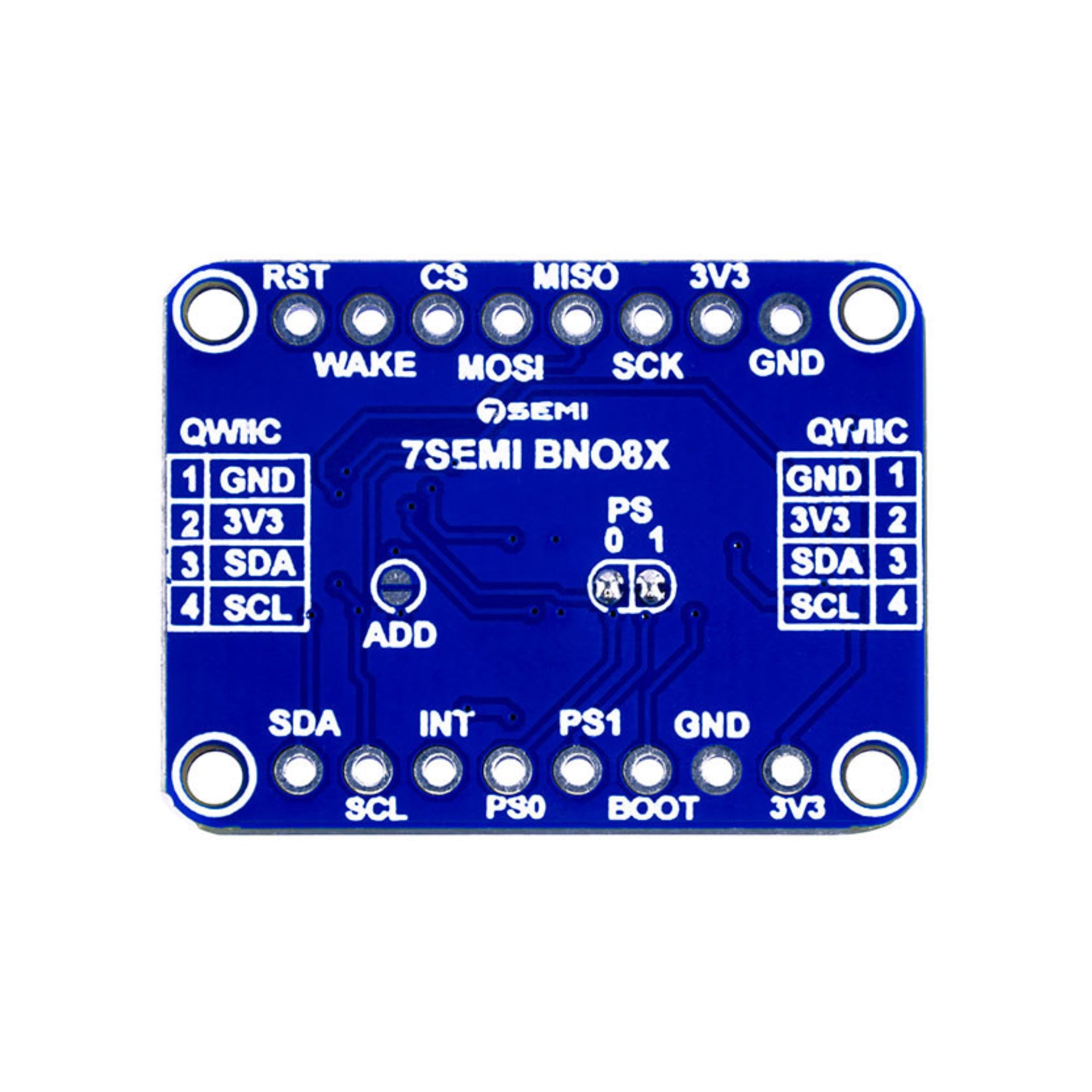

7Semi BNO085 9-DOF Orientation IMU Fusion Breakout Qwiic

The 7Semi BNO085 9-DOF Orientation IMU Fusion Breakout (Qwiic) is a high-performance inertial measurement unit based on the BNO085 sensor from CEVA-Hillcrest. It combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer with an onboard sensor-fusion engine, delivering accurate absolute orientation data without heavy processing load on the host microcontroller. With Qwiic connectors and multiple communication interfaces, it is ideal for motion tracking, navigation, and robotics applications.

Technical Specifications

• Sensor IC: BNO085
• Degrees of Freedom: 9-DOF (Accelerometer + Gyroscope + Magnetometer)
• Sensor Fusion: On-chip fusion engine
• Orientation Outputs: Quaternion, Euler angles, rotation vectors
• Communication Interfaces: I²C, SPI
• Interface Connector: Qwiic (JST-SH, 1 mm pitch)
• Operating Voltage: 3.3 V
• Logic Level: 3.3 V
• Interrupt Pin: Yes
• Additional Pins: RST, BOOT, WAKE, CS
• Form Factor: Compact breakout board

Features

• Fully integrated sensor-fusion processing
• Provides absolute orientation with high accuracy
• Reduces MCU computation and power consumption
• Qwiic plug-and-play connectivity
• Supports multiple output data formats
• Low latency and stable orientation tracking
• Compatible with Arduino, ESP32, STM32, and Raspberry Pi

Applications

• Robotics and autonomous systems
• Motion tracking and gesture recognition
• IMU-based navigation systems
• Drones and UAV orientation sensing
• Virtual reality and augmented reality devices
• Wearable electronics
• Industrial motion monitoring
