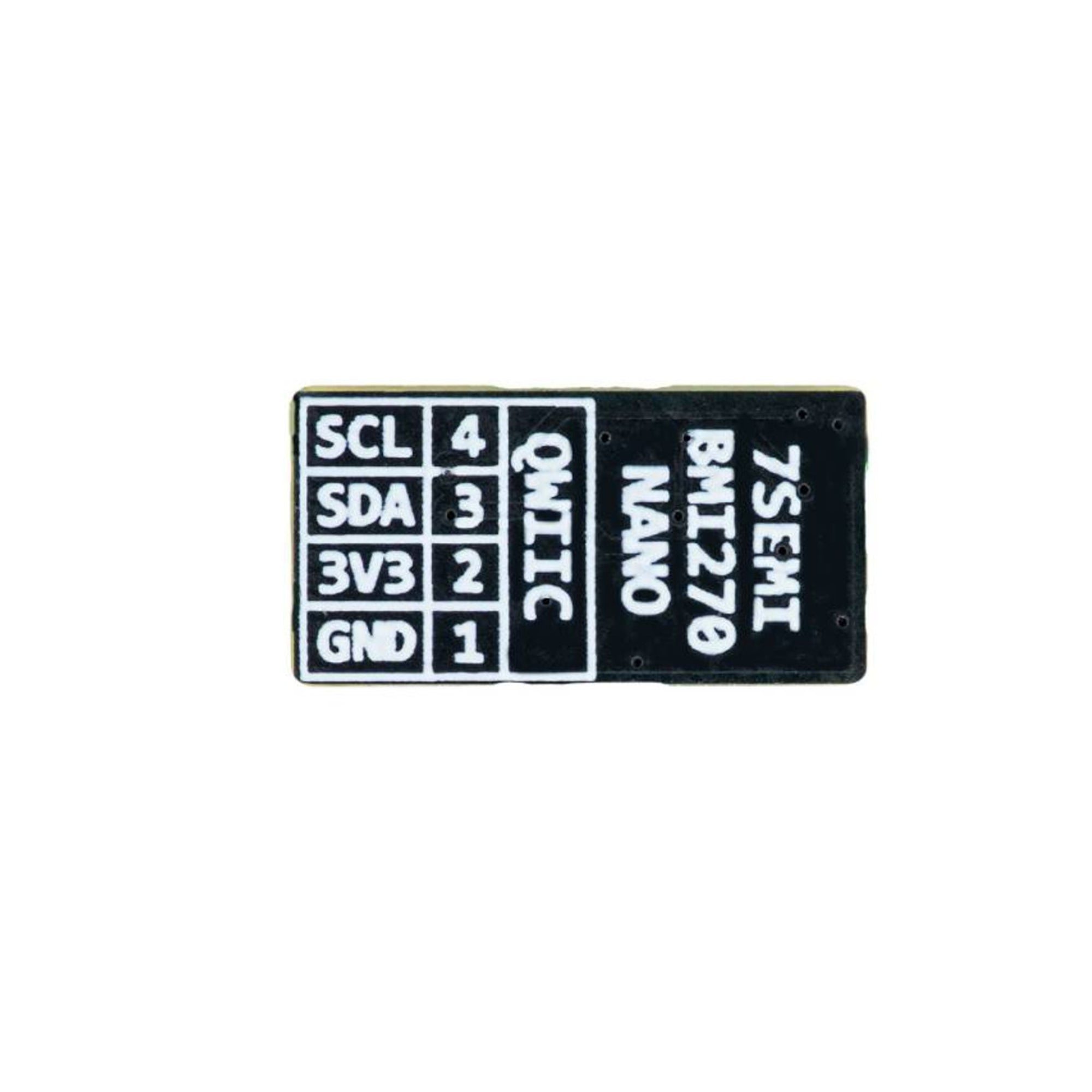

7Semi BMI270 Nano - 6-Axis IMU Sensor Board Qwiic

The 7Semi BMI270 Nano 6-Axis IMU Sensor Board (Qwiic Compatible) is a high-performance motion-sensing module featuring Bosch’s BMI270 inertial measurement unit (IMU). It integrates a 3-axis accelerometer and a 3-axis gyroscope, providing precise motion, orientation, and angular velocity data. Designed for ultra-low power consumption and high accuracy, it is ideal for wearable, IoT, and robotics applications. With its compact design and Qwiic interface, this board offers easy I²C connectivity, making it perfect for motion tracking and gesture recognition in embedded systems.

Technical Specifications:

• Sensor IC: Bosch Sensortec BMI270
• Sensor Type: 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g (selectable)

• Gyroscope Range: ±125, ±250, ±500, ±1000, ±2000 °/s (selectable)

• Output Data Rate (ODR): Up to 6.4 kHz

• Interface: I²C and SPI (Qwiic compatible, default I²C)

• I²C Address: 0x68 (default), configurable

• Resolution: 16-bit for both accelerometer and gyroscope

• Power Supply Voltage: 1.71 V to 3.6 V (typical 3.3 V)

• Operating Current:
   – Normal Mode: ~850 µA
   – Low Power Mode: ~200 µA

• FIFO Buffer: 1024 bytes for motion data logging

• Temperature Range: -40°C to +85°C

• Compatibility: 3.3 V logic microcontrollers and SBCs

• Mounting: Breadboard- and Qwiic-compatible design

Features:

• Integrated 6-axis IMU combining accelerometer and gyroscope

• High-precision motion sensing with low noise and drift

• Ultra-low power consumption ideal for portable and battery devices

• Qwiic-compatible I²C interface for plug-and-play connectivity

• Programmable motion detection, step counting, and gesture recognition

• Selectable measurement ranges for flexible motion analysis

• Built-in temperature sensor for calibration and compensation

• FIFO buffer for efficient data handling and reduced MCU load

• Factory-calibrated for accurate and reliable performance

• Compact and robust breakout suitable for embedded integration

Applications:

• Motion tracking and orientation sensing

• Wearable fitness and health monitoring devices

• Robotics and autonomous vehicle navigation

• Gesture recognition and control interfaces

• IoT and smart home motion detection systems

• Drone stabilization and control

• Gaming controllers and AR/VR systems

• Industrial and machine motion analysis

• Research and educational projects involving IMU-based motion studies
