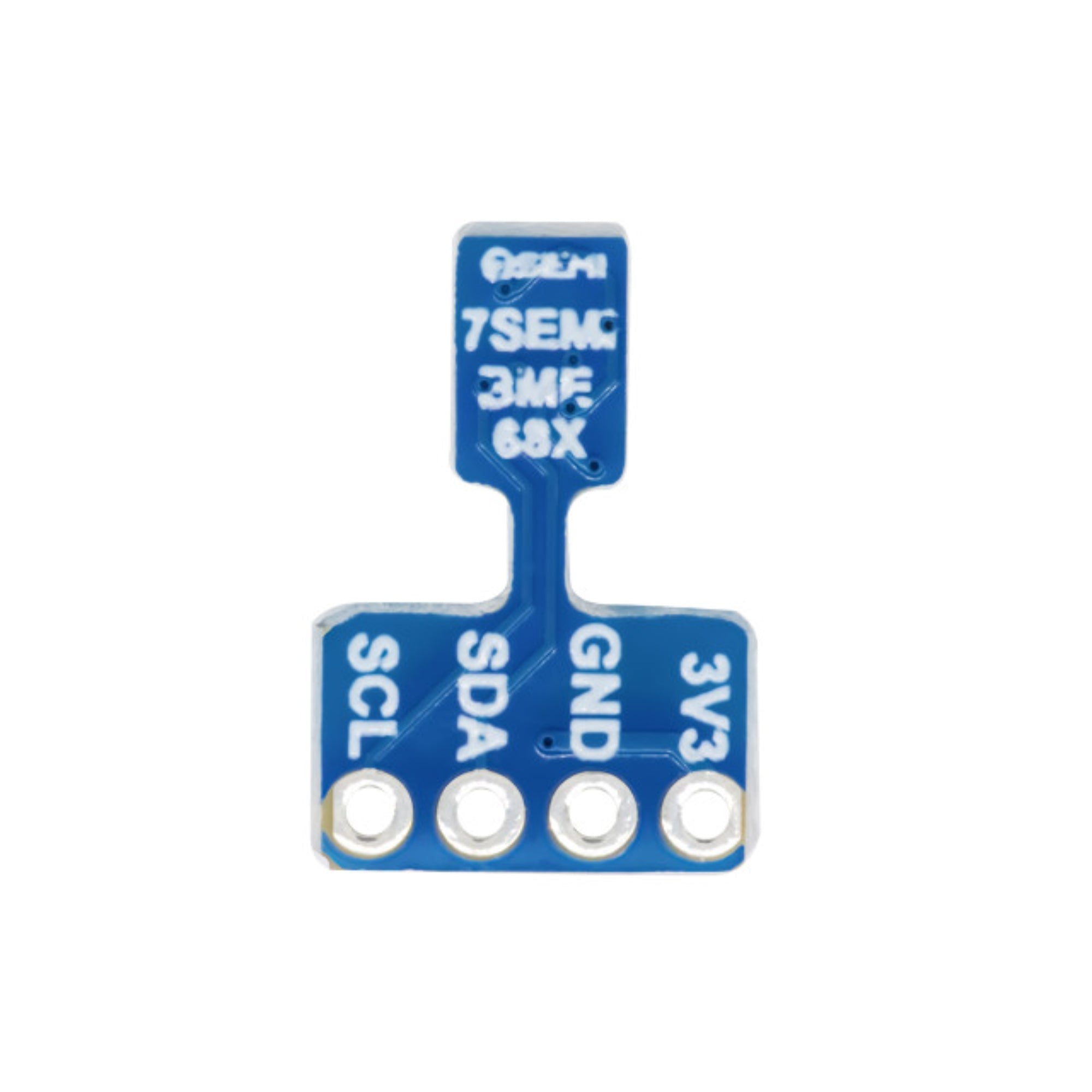

7Semi BME688 Environmental Sensor Nano Breakout 2.54mm Pitch Header

The 7Semi BME688 Environmental Sensor Nano Breakout (2.54mm Pitch Header) is a compact, multifunctional environmental sensing module powered by the Bosch BME688 sensor. It combines gas sensing, barometric pressure, temperature, and humidity measurements in a single nano-sized board. With a standard 2.54mm pitch header, it is fully breadboard-friendly and easy to integrate into IoT, prototyping, and embedded applications. Its AI-enabled gas sensing capabilities make it suitable for advanced air-quality analysis and environmental monitoring.

Technical Specifications:

• Sensor IC: Bosch BME688

• Measurement Parameters: Gas, Pressure, Temperature, Humidity

• Interface: I²C (standard), SPI supported by the sensor

• Supply Voltage: 3.3V

• Temperature Range: -40°C to +85°C

• Humidity Range: 0% to 100% RH

• Pressure Range: 300 hPa to 1100 hPa

• Gas Sensing: VOCs, VSCs, general air-quality detection with AI-based gas scanning

• Gas Scan Speed: ~10.8 seconds per scan

• Humidity Response Time: ~8 seconds (T63%)

• Humidity Accuracy: ±3% RH (typical)

• Pressure Noise: ~0.12 Pa RMS (≈1.7 cm altitude resolution)

• Pressure Sensitivity Error: ±0.25%

• Header Pitch: 2.54mm standard

• Output Type: Digital calibrated output

• Operating Temperature: -40°C to +85°C

• Form Factor: Nano breakout board for compact projects

Features:

• 4-in-1 environmental sensing: temperature, humidity, pressure, and gas

• AI-powered gas detection for VOCs and other volatile compounds

• Compact nano-sized breakout with 2.54mm pitch for easy prototyping

• Digital I²C interface ensures simple communication with microcontrollers

• Suitable for breadboards, perfboards, and custom PCBs

• Wide operating range for both indoor and outdoor applications

• Reduces the need for multiple sensors in environmental monitoring projects

• Ideal for IoT, smart home, and embedded devices

• Low power consumption for portable or battery-powered systems

• Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other platforms

Applications:

• Indoor air quality monitoring

• Smart home and IoT systems

• Environmental and climate stations

• Industrial safety and atmospheric monitoring

• Portable environmental sensing devices

• Data logging and research experiments

• Greenhouse and horticulture environment control

• Weather monitoring and barometric pressure measurement

• HVAC automation and control systems

• Consumer and wearable environmental devices
