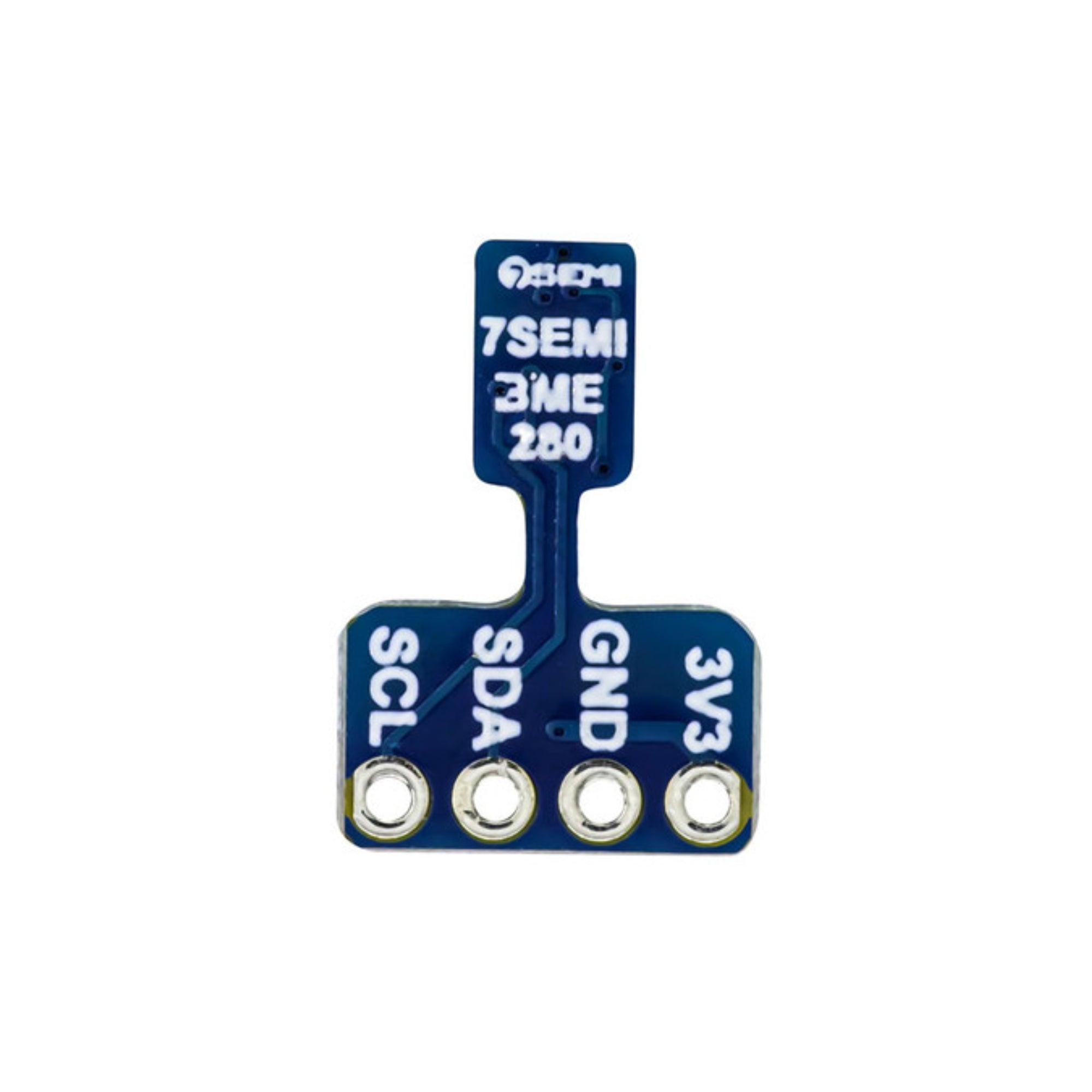

7Semi BME280 Temperature Humidity Pressure Sensor Nano Breakout 2.54mm Pitch Header

The 7Semi BME280 Temperature, Humidity, and Pressure Sensor Nano Breakout is a compact environmental sensing module based on the Bosch BME280 sensor. It provides accurate and reliable measurements of temperature, humidity, and barometric pressure with digital output via I²C or SPI interface. The breakout board features a 2.54mm pitch header, making it breadboard-friendly and easy to integrate into embedded systems, IoT devices, and weather monitoring projects. Its small size and low power consumption make it ideal for portable and long-term environmental sensing applications.

Technical Specifications:

• Sensor IC: Bosch BME280

• Measurement Parameters: Temperature, Humidity, Barometric Pressure

• Interface: I²C and SPI (selectable)

• Supply Voltage: 1.7V to 3.6V (typical 3.3V)

• Logic Level Compatibility: 3.3V and 5V

• Temperature Range: -40°C to +85°C

• Temperature Accuracy: ±0.5°C typical

• Humidity Range: 0% to 100% RH (non-condensing)

• Humidity Accuracy: ±3% RH typical

• Pressure Range: 300 hPa to 1100 hPa

• Pressure Accuracy: ±1 hPa typical

• Output Resolution: 16-bit for each parameter

• I²C Address: 0x76 or 0x77 (selectable)

• Response Time: <1 second for humidity

• Operating Current: 3.6µA (typical active mode)

• Board Type: Nano breakout with 2.54mm pitch header

• Operating Temperature: -40°C to +85°C

• PCB Dimensions: Compact and breadboard-compatible design

Features:

• All-in-one sensor for temperature, humidity, and pressure measurement

• Dual communication support (I²C and SPI) for flexible interfacing

• High accuracy and fast response time

• Fully calibrated digital output ready for immediate use

• Ultra-low power consumption ideal for IoT and portable applications

• Compact nano-sized PCB with standard 2.54mm header pins

• Compatible with Arduino, ESP32, STM32, and Raspberry Pi

• Factory-calibrated sensor ensures reliable and repeatable readings

• Wide temperature and humidity operating range

• Easy integration into breadboards and prototype circuits

Applications:

• Environmental monitoring and weather stations

• Smart home and HVAC automation systems

• Altitude and pressure-based navigation applications

• IoT-based data logging and sensor networks

• Greenhouse and agricultural climate control

• Portable devices and wearable environmental trackers

• Air quality monitoring and indoor comfort measurement

• Robotics and drone altitude measurement systems

• Educational and research-based sensor projects

• Industrial process and environmental control systems
