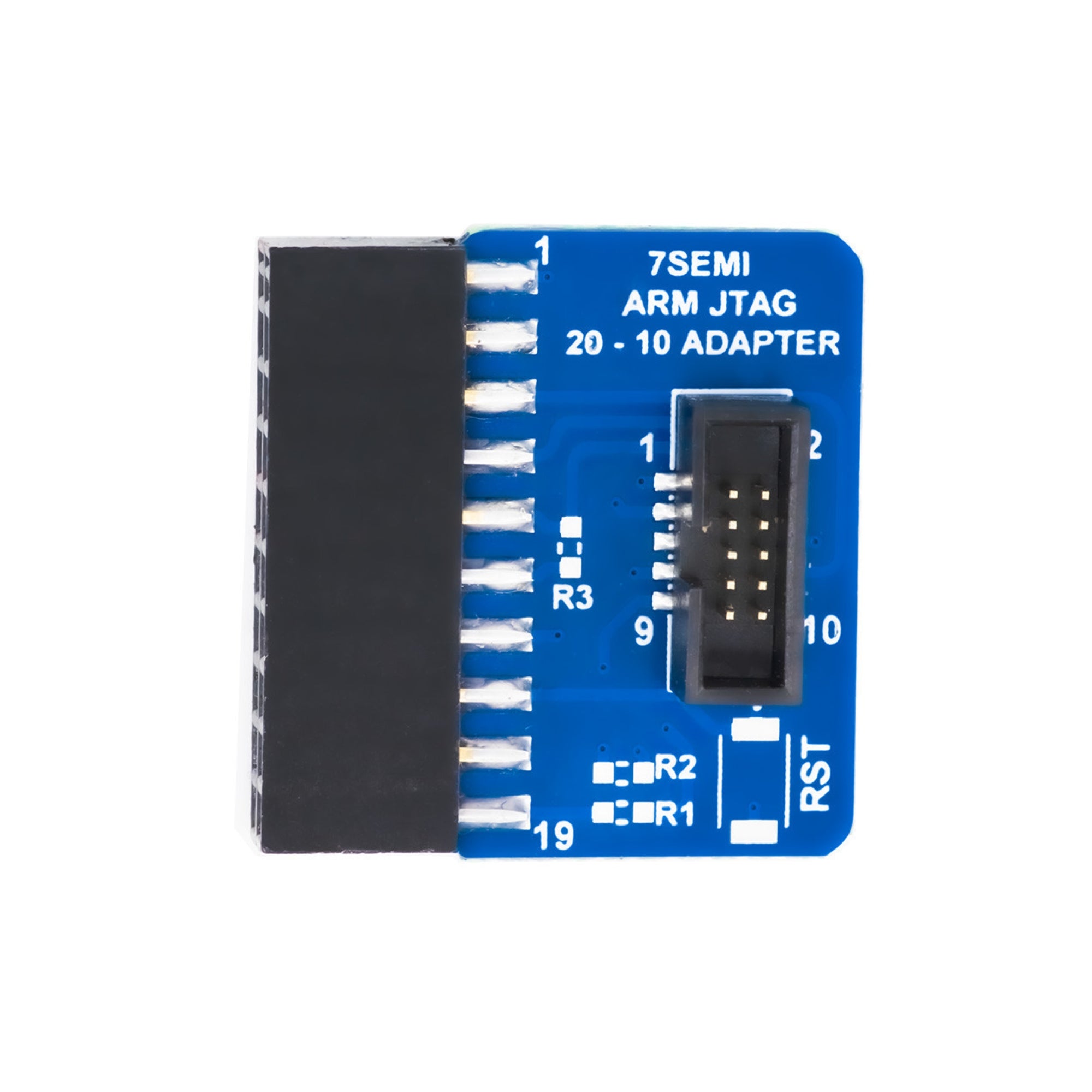

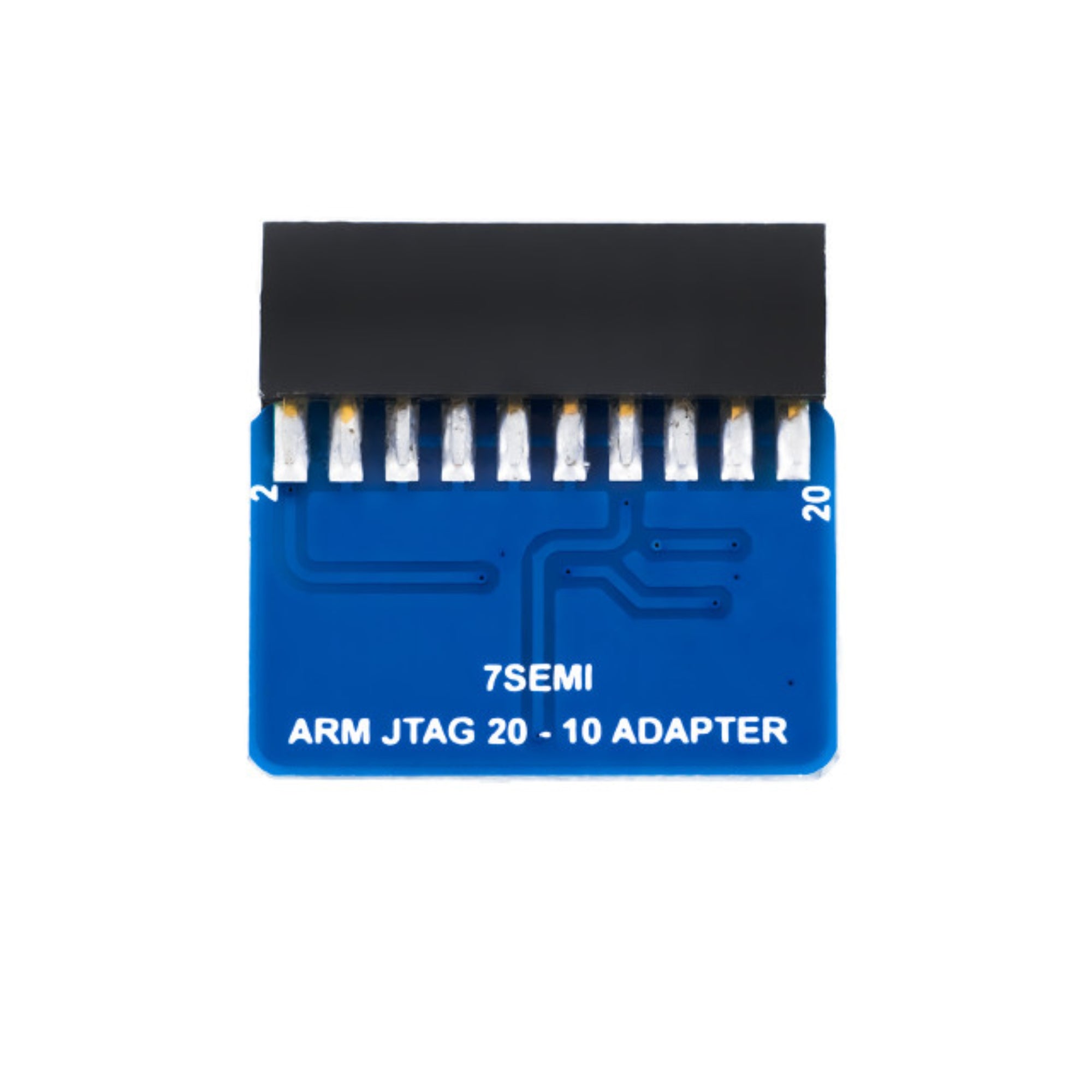

7Semi ARM-JTAG-20-10 - Plug-in Adapter (JTAG 20-Pin 0.1" to 10-Pin 0.05" Adapter 20 cm Cable)

The 7Semi ARM-JTAG-20-10 Plug-in Adapter is a reliable and convenient interface converter designed to connect standard ARM 20-pin (0.1") JTAG or SWD programmers to 10-pin (0.05") target headers. It includes a high-quality 20 cm ribbon cable for flexible and organized connections. This adapter simplifies debugging and programming of ARM-based microcontrollers by providing seamless compatibility between full-size and compact JTAG connectors commonly found on development boards.

Technical Specifications:

• Connector Type (Programmer Side): 20-pin 0.1" (2.54 mm) male header

• Connector Type (Target Side): 10-pin 0.05" (1.27 mm) male header

• Cable Length: 20 cm (flat ribbon cable)

• Supported Interfaces: JTAG and SWD (Serial Wire Debug)

• Compatibility: ARM Cortex-M microcontrollers and other ARM-based devices

• Pin Mapping: Fully compliant with ARM standard 20-pin to 10-pin conversion

• Material: High-quality flexible ribbon cable with durable connectors

• Operating Temperature: -40°C to +85°C

• Color: Standard gray ribbon with black connectors

• Mounting: Plug-and-play, no soldering required

Features:

• Converts 20-pin 2.54 mm JTAG connector to 10-pin 1.27 mm header

• Supports both JTAG and SWD debugging interfaces

• 20 cm flexible ribbon cable provides easy connectivity in tight spaces

• Ensures reliable and stable signal transmission

• Fully compatible with ARM standard pinout specifications

• High-quality connectors for long-term durability and repeated use

• Compact and lightweight design for portability

• Plug-and-play operation — no external configuration needed

Applications:

• Programming and debugging ARM Cortex-M microcontrollers

• Interface conversion for ST-Link, J-Link, or other ARM debuggers

• Embedded system development and testing

• Prototyping and hardware validation setups

• Educational and training environments for ARM development

• R&D and field use for quick interface adaptation

• Industrial applications requiring compact JTAG/SWD connections
