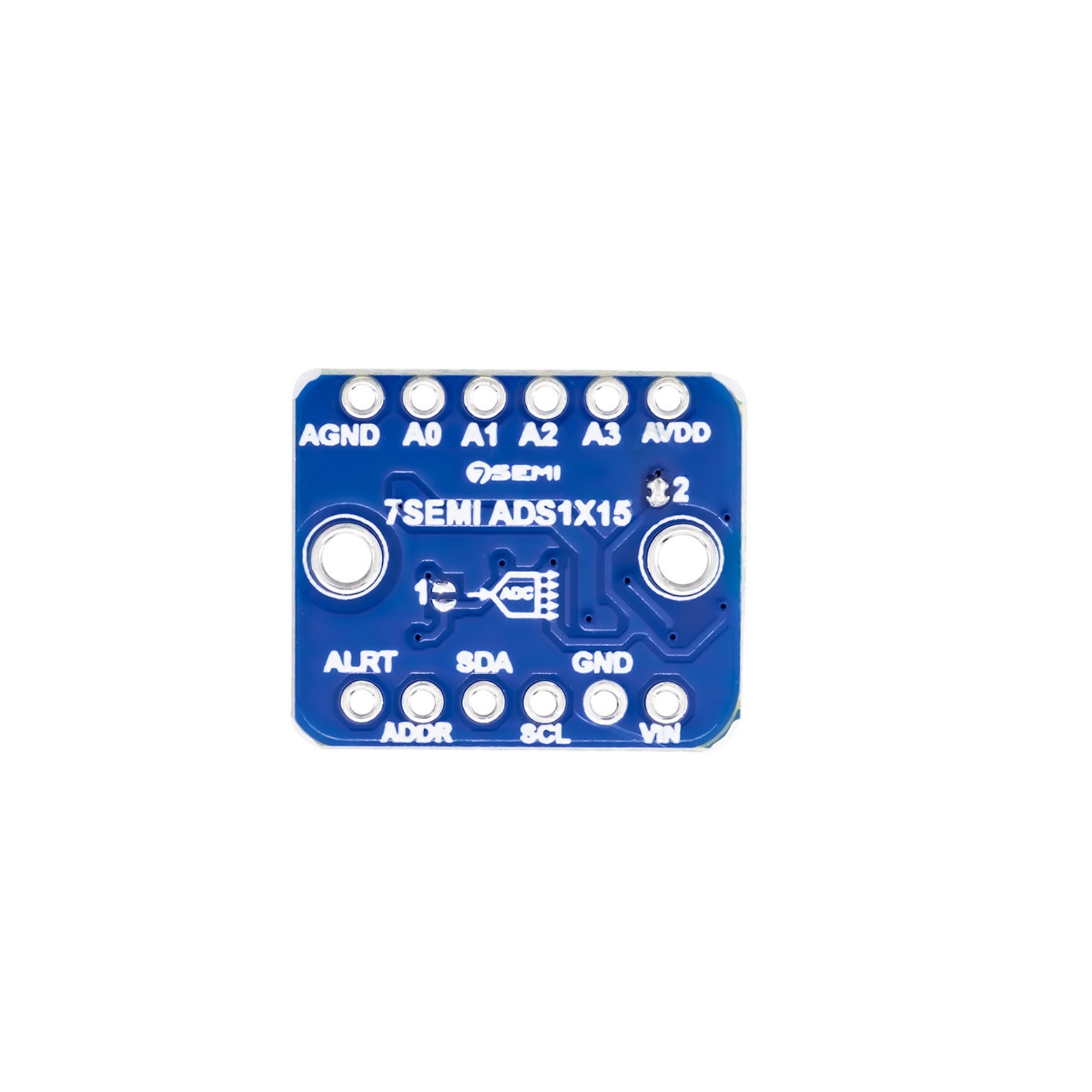

7Semi ADS1015 12bit 4-Channel ADC Board with PGA I2C

The 7Semi ADS1015 12-bit 4-Channel ADC Board with PGA (Programmable Gain Amplifier) is a compact, high-precision analog-to-digital converter module based on the Texas Instruments ADS1015 IC. It provides four single-ended or two differential analog input channels with 12-bit resolution and an integrated programmable gain amplifier for signal scaling. Communication is handled via the I²C interface, making it compatible with a wide range of microcontrollers. Ideal for sensor interfacing and voltage measurement, this board is perfect for embedded systems, IoT applications, and data acquisition projects.

Technical Specifications:

• ADC IC: Texas Instruments ADS1015

• Resolution: 12-bit (4096 steps)

• Channels: 4 single-ended or 2 differential inputs

• Programmable Gain Amplifier (PGA) Settings: ±6.144 V, ±4.096 V, ±2.048 V, ±1.024 V, ±0.512 V, ±0.256 V

• Interface: I²C (supports standard, fast, and high-speed modes up to 3.4 MHz)

• Input Voltage Range: ±VDD/GND depending on PGA setting

• Operating Voltage: 2.0 V to 5.5 V

• Typical Current Consumption: 150 µA (active mode)

• Data Rate: Configurable (128 to 3300 samples per second)

• Comparator Function: Programmable threshold-based alert output

• I²C Address: Configurable via ADDR pin (up to 4 devices on one bus)

• Input Type: Differential or single-ended

• Logic Level Compatibility: 3.3 V and 5 V systems

• Operating Temperature: -40°C to +125°C

• PCB: High-quality FR-4 board with 2.54 mm header pins


Features:

• 4-channel 12-bit ADC with internal PGA for high-accuracy measurements

• Selectable input configuration (single-ended or differential)

• Built-in programmable comparator for alert or interrupt generation

• I²C interface compatible with popular MCUs (Arduino, ESP32, STM32, Raspberry Pi, etc.)

• Adjustable sampling rates for precision or speed optimization

• Wide input voltage range and configurable gain control

• Low power consumption suitable for portable applications

• Simple to integrate with existing analog signal systems

• Compact design with clear pin labelling for easy prototyping

• Ideal for amplifying low-voltage sensor signals

Applications:

• Sensor signal conditioning and analog voltage measurement

• Battery monitoring and power management systems

• Data acquisition and instrumentation projects

• Industrial control and automation systems

• IoT and environmental monitoring applications

• Biomedical and scientific measurement equipment

• Audio and sound analysis circuits

• Educational and research-based electronics experiments
