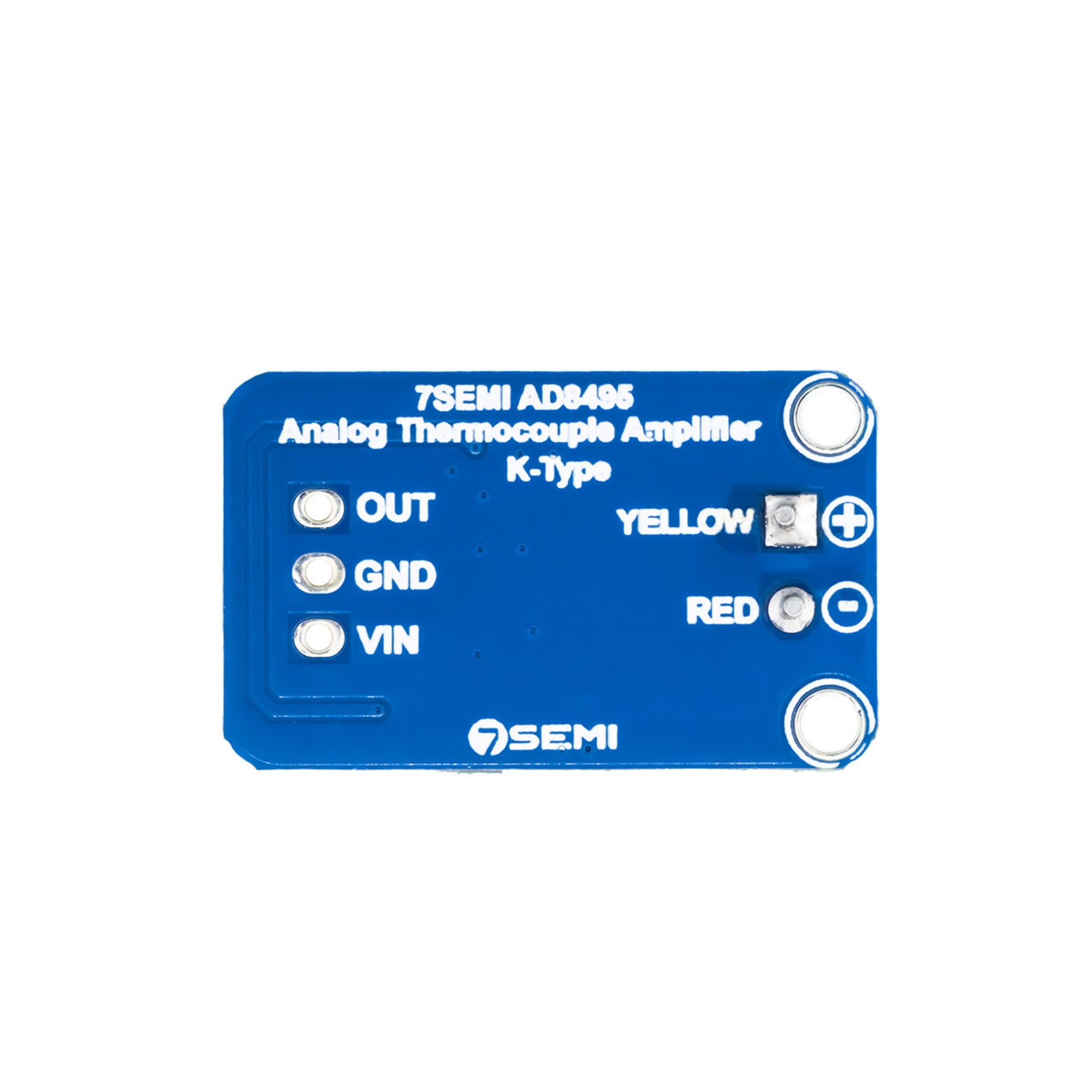

7Semi AD8495 Analog K-Type Thermocouple Amplifier Breakout

The 7Semi AD8495 Analog K-Type Thermocouple Amplifier Breakout is a precision analog-output temperature measurement module designed for K-type thermocouples. It uses the AD8495 amplifier, which provides cold-junction compensation and a linear analog voltage output proportional to temperature. This breakout is ideal for high-temperature applications such as furnaces, ovens, industrial processes, engines, exhaust systems, and laboratory experiments requiring wide-range and accurate temperature sensing.

Technical Specifications:

• Amplifier IC: AD8495

• Supported Thermocouple Type: K-type

• Output Type: Analog voltage output (5 mV/°C scale factor)

• Output Equation: Temperature (°C) = (Vout – 1.25 V) / 0.005

• Supply Voltage Range: 2.7V to 36V

• Temperature Measurement Range:
  With 5V supply: approx. –250°C to +750°C
  With 3.3V supply: approx. –250°C to +410°C (due to output swing limits)

• Cold-Junction Compensation: Built-in

• Input Type: Differential thermocouple input

• Amplifier Current Consumption: ~180 µA typical

• Connector Type: Screw terminal or pin headers (depending on breakout version)

• Sensor Type: Analog thermocouple amplifier

Features:

• Designed exclusively for K-type thermocouples

• Built-in cold-junction compensation for accurate readings

• Linear analog voltage output for easy microcontroller/ADC interfacing

• Wide supply voltage range suitable for 3.3V and 5V systems

• Wide temperature measurement capability (cryogenic to high-temperature)

• Simple to use - just power the board and read the analog voltage

• High accuracy and stable output

• Compact breakout, easy to integrate into embedded systems

• Fast response suitable for real-time temperature monitoring

• Reliable solution for industrial and scientific high-temperature measurements

Applications:

• Industrial furnace and kiln temperature monitoring

• Oven and heater temperature control

• 3D printer hot-end or heated bed monitoring (within supported range)

• Exhaust and flue gas temperature measurement

• HVAC thermocouple-based sensing

• Laboratory and scientific thermal experiments

• Manufacturing process temperature control

• High-temperature industrial instrumentation

• Thermal profiling and calibration equipment

• Embedded system temperature monitoring using K-type thermocouples
