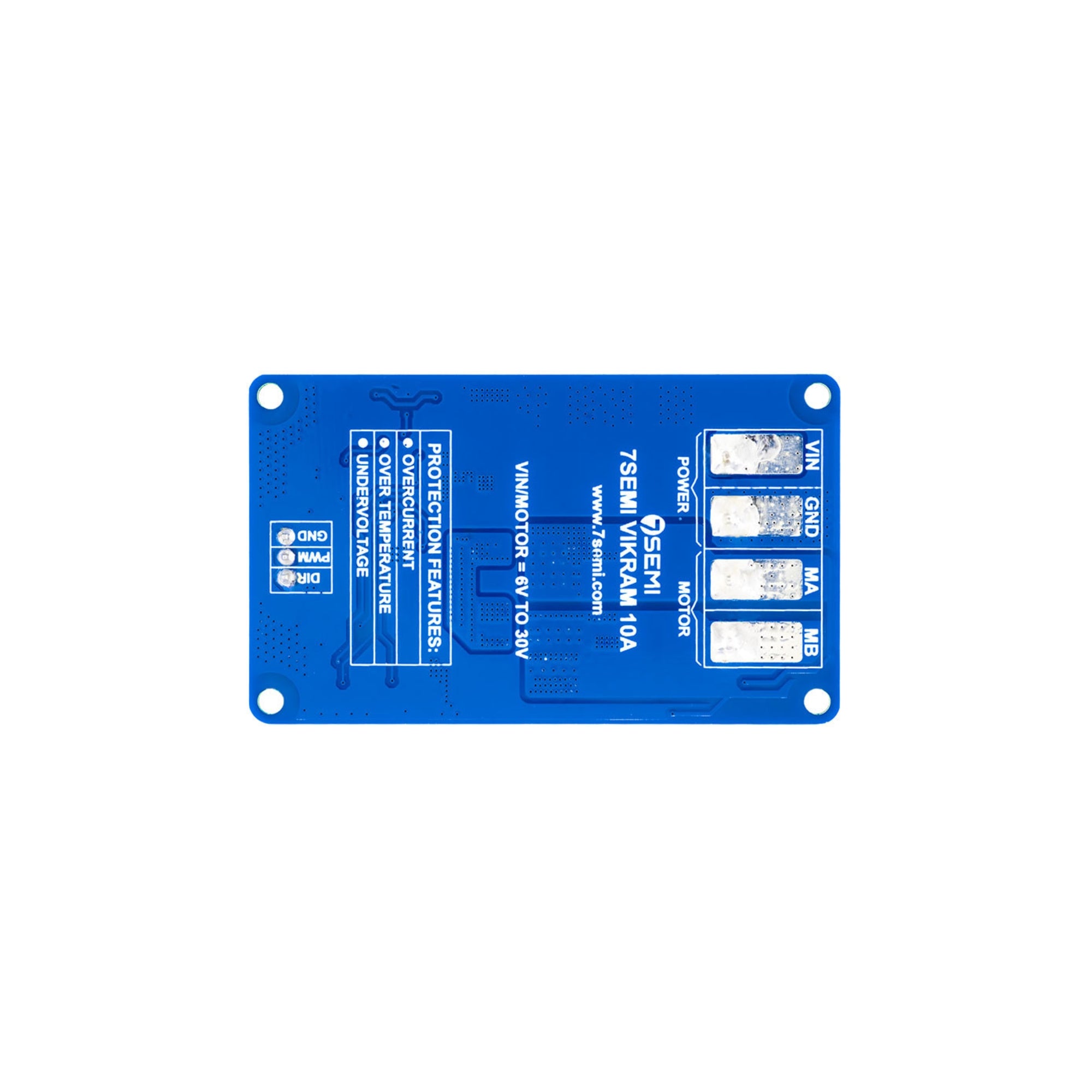

7Semi 30V 10A Single Channel Motor Driver Vikram-3010

The 7Semi Vikram-3010 30V 10A Single Channel Motor Driver is a high-power H-Bridge motor driver module designed to control large DC motors efficiently and reliably. Built around the Texas Instruments DRV8701 gate driver and high-current MOSFETs, it supports up to 30V supply voltage and delivers 10A continuous current (with peak up to 14A). It provides full bidirectional control with PWM-based speed regulation and direction management. With built-in protection features such as under-voltage, overcurrent, and thermal shutdown, this module is ideal for robotics, automation, and motion control applications.

Technical Specifications:

• Driver Architecture: Full H-Bridge (single-channel DC motor control)

• Driver IC: Texas Instruments DRV8701 with external power MOSFETs

• Motor Voltage (VM): 6.5 V to 30 V

• Continuous Output Current: 10 A

• Peak Output Current: 14 A (short duration)

• Logic Input Voltage: 3.3 V / 5 V compatible

• Control Inputs: PWM (speed control), DIR (direction), ENABLE

• PWM Frequency: Up to 100 kHz supported

• Efficiency: >90% typical at rated load

• Protection Features:
   – Under-voltage lockout (UVLO)
   – Overcurrent protection (OCP)
   – Thermal shutdown (TSD)
   – Shoot-through prevention

• Operating Temperature: -40°C to +150°C (junction)

• Interface Type: 2.54 mm header pins for easy connection

• PCB: High-quality FR-4 board with wide copper traces for current handling

• Cooling: Passive or active cooling recommended for continuous high load

Features:

• Single-channel 30V, 10A high-current DC motor driver

• Supports bidirectional motor control with PWM speed adjustment

• Compatible with 3.3V and 5V logic microcontrollers (Arduino, ESP32, STM32, etc.)

• High-efficiency H-Bridge design with low RDS(on) MOSFETs

• Integrated protection features for safe operation under all conditions

• Thermal and overcurrent safeguards enhance system reliability

• Simple 3-pin control (PWM, DIR, EN) for easy interfacing

• Compact, rugged PCB suitable for both development and deployment

• Excellent choice for robotics, automation, and motion control systems

• Capable of driving motors, solenoids, or actuators smoothly and efficiently

Applications:

• Robotics and automation motor control systems

• Electric vehicles and smart mobility prototypes

• Conveyor belts, pumps, and fan speed controllers

• Industrial and commercial automation equipment

• Smart agriculture machinery and irrigation systems

• IoT-based motorized devices and tools

• RC vehicles, drones, and robotic arms

• Educational and research-based motor control projects

• Motion control in mechatronic and embedded systems
