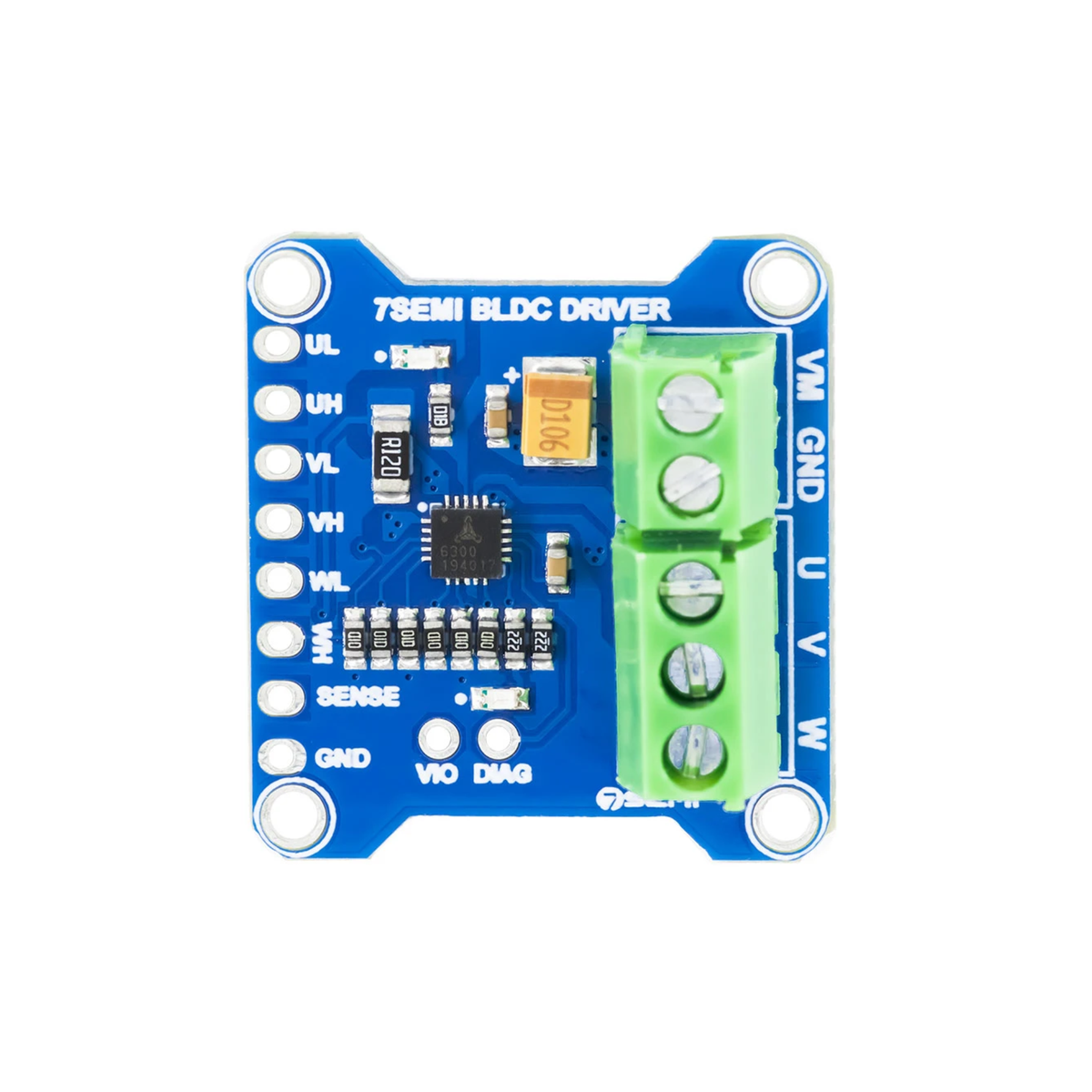

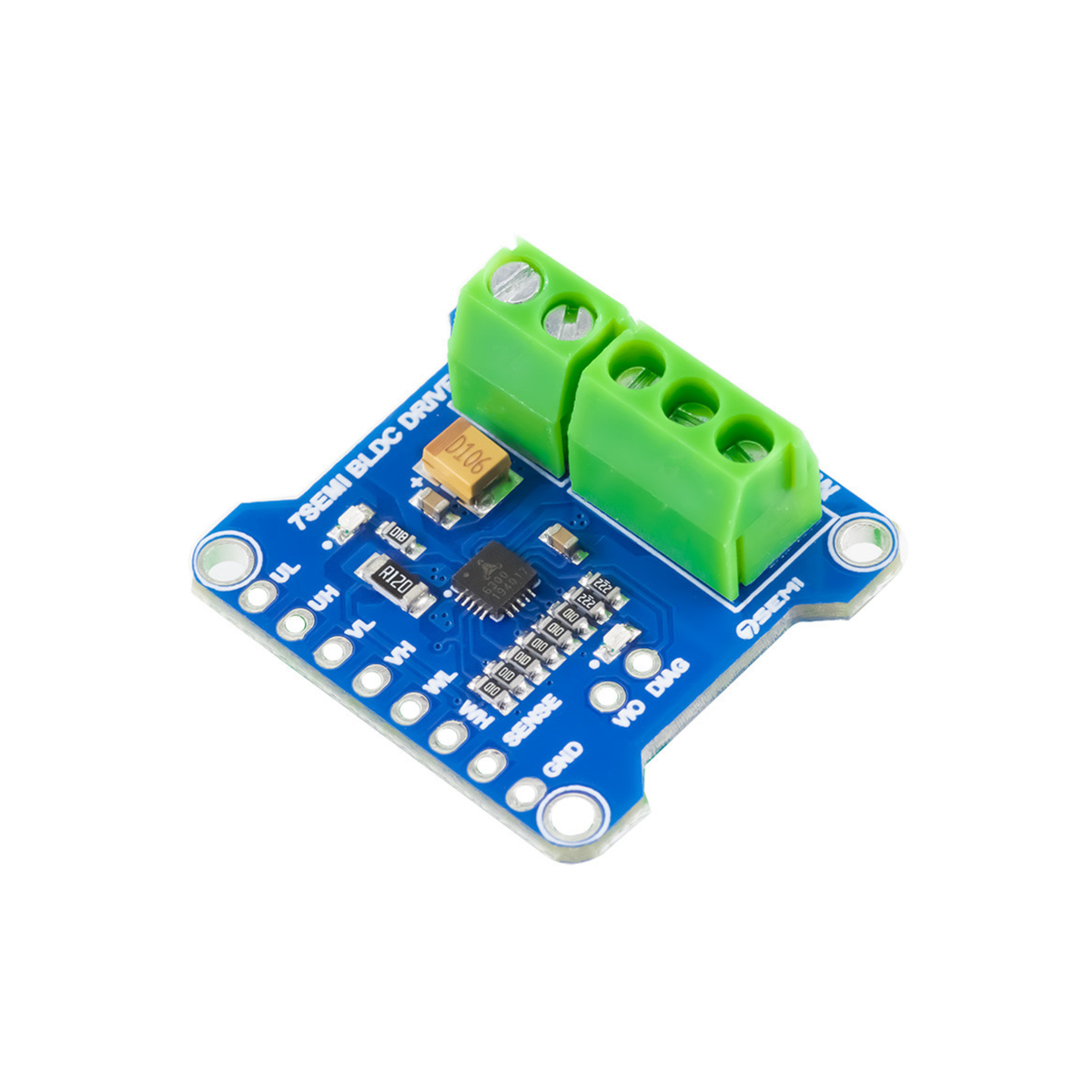

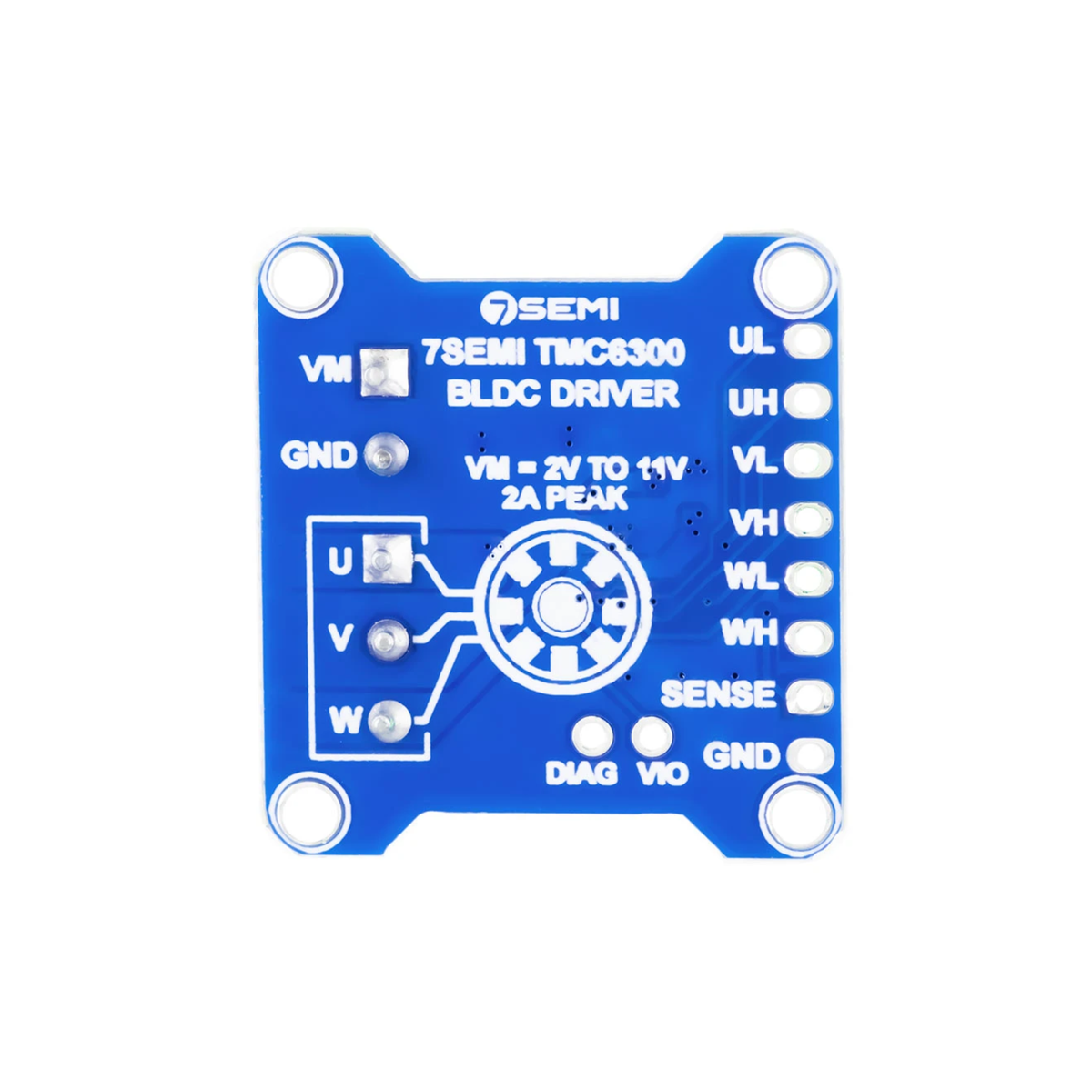

7Semi 3-Phase TMC6300 BLDC PMSM Brushless Motor Driver Breakout

The 7Semi 3-Phase TMC6300 BLDC PMSM Brushless Motor Driver Breakout is a compact motor-control board designed for low-voltage 3-phase BLDC and PMSM motors. It uses the TMC6300 motor driver IC and provides independent high-side and low-side control for all three motor phases. The board supports six PWM control inputs, current sensing and diagnostic feedback, making it suitable for precise microcontroller-based motor control. Its low-voltage operating range and compact breakout design make it useful for robotics, battery-powered devices and embedded motor-control applications.

Technical Specifications:

• Motor Driver IC: TMC6300
• Supply Voltage: 2V to 11V DC
• Output Current: Up to 2A peak, approximately 1.4A RMS
• Motor Outputs: 3-phase U, V and W
• Control Inputs: 6 PWM inputs for high-side and low-side phase control

Features:

• Supports 3-phase BLDC and PMSM motors
• Independent high-side and low-side MOSFET control
• Provides current-sense and diagnostic outputs
• Built-in temperature and short-circuit protection
• Compact, breadboard-friendly breakout design

Applications:

• Small BLDC motor control systems
• PMSM motor development and testing
• Robotics and mobile platforms
• Battery-powered embedded systems
• Microcontroller-based motor-control projects
