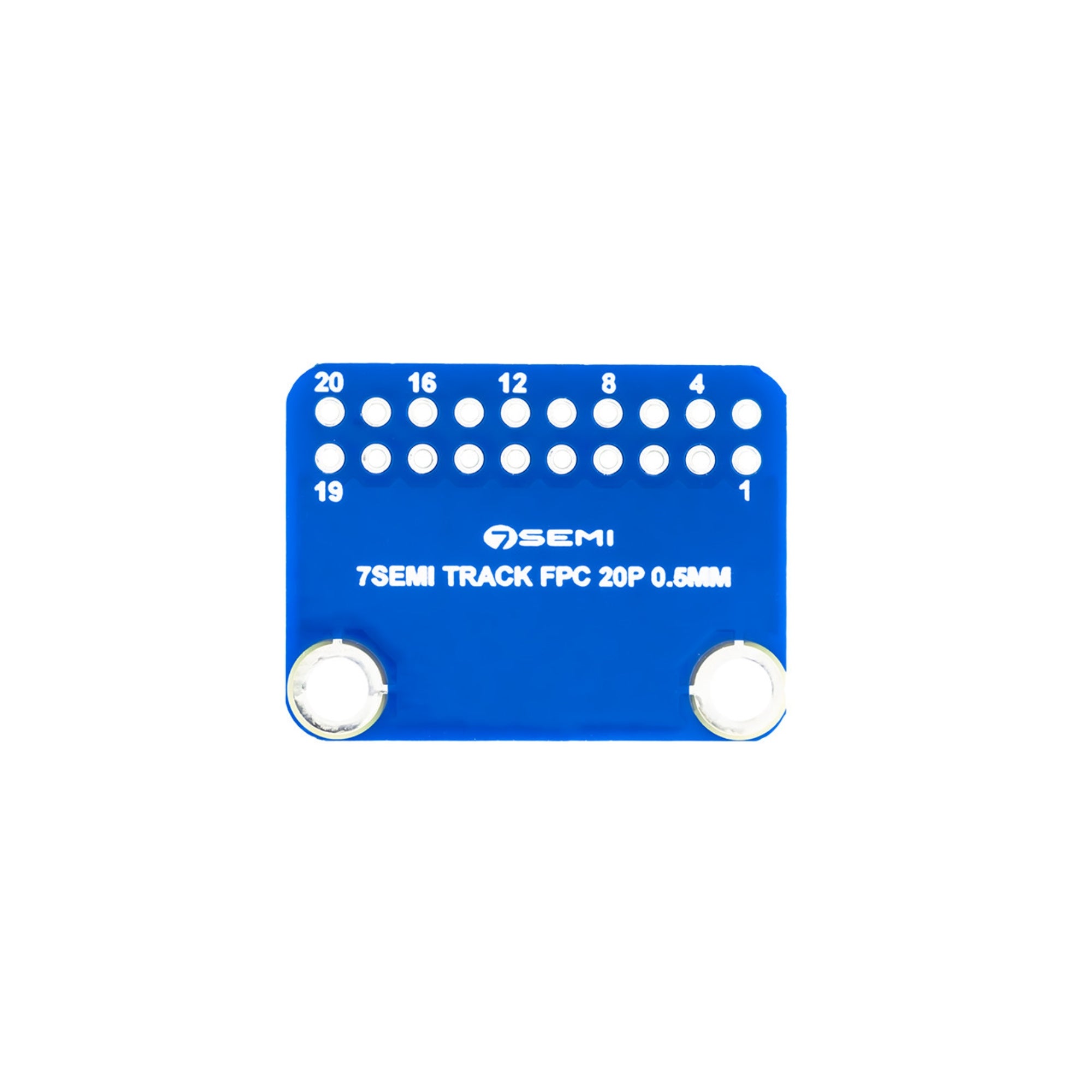

7Semi 20 Pin 0.5mm FFC FPC Connector Breakout Board

The 7Semi 20 Pin 0.5mm FFC FPC Connector Breakout Board is a compact and reliable adapter designed to easily interface 0.5mm pitch flat flexible cables (FFC) or flat printed cables (FPC) with standard 2.54mm pitch pin headers. It simplifies the connection between fine-pitch ribbon cables and breadboards or custom PCBs, making it ideal for prototyping, testing, and integration of display modules, cameras, and other FFC/FPC-based components.

Technical Specifications:

• Connector Type: 20-pin FFC/FPC female connector

• Connector Pitch: 0.5mm

• Breakout Pitch: 2.54mm standard header spacing

• Supported Cable Type: Flat Flexible Cable (FFC) or Flat Printed Cable (FPC)

• Contact Type: Slide-lock or flip-lock ZIF (Zero Insertion Force)

• Operating Voltage: Up to 50V (typical for signal applications)

• Current Rating: Up to 0.5A per contact (typical)

• Operating Temperature: -40°C to +85°C

• PCB Material: High-quality FR-4

• Board Dimensions: Compact size for easy integration

• Mounting Type: Through-hole pin headers for breadboard or PCB connection

• Orientation: Horizontal or top-contact type connector

Features:

• Breaks out fine-pitch 0.5mm FFC/FPC connectors to 2.54mm headers

• Simplifies connection of flat ribbon cables to development boards or PCBs

• ZIF connector design ensures easy cable insertion and secure locking

• Compatible with 20-pin flat cables used in displays, cameras, and sensors

• Compact and durable PCB for stable electrical connections

• Clearly labeled pinout for quick identification and wiring

• Supports both 3.3V and 5V signal systems

• Ideal for rapid prototyping and hardware debugging

• Reusable and easy to integrate into various electronic projects

• Lightweight and suitable for compact embedded designs

Applications:

• Interfacing FFC/FPC ribbon cables with breadboards or microcontrollers

• Connection of LCD, OLED, or TFT display modules

• Camera module and image sensor prototyping

• Integration of touch panels and flexible PCBs

• IoT and embedded hardware development

• Signal routing and adapter for fine-pitch connectors

• Testing and debugging of FFC/FPC-based circuits

• DIY electronics, educational, and prototype projects

• Robotics and automation equipment wiring

• Repair or modification of electronic devices with flat ribbon cables
