7Semi 10 Pin 0.5mm FFC FPC Connector Breakout Board

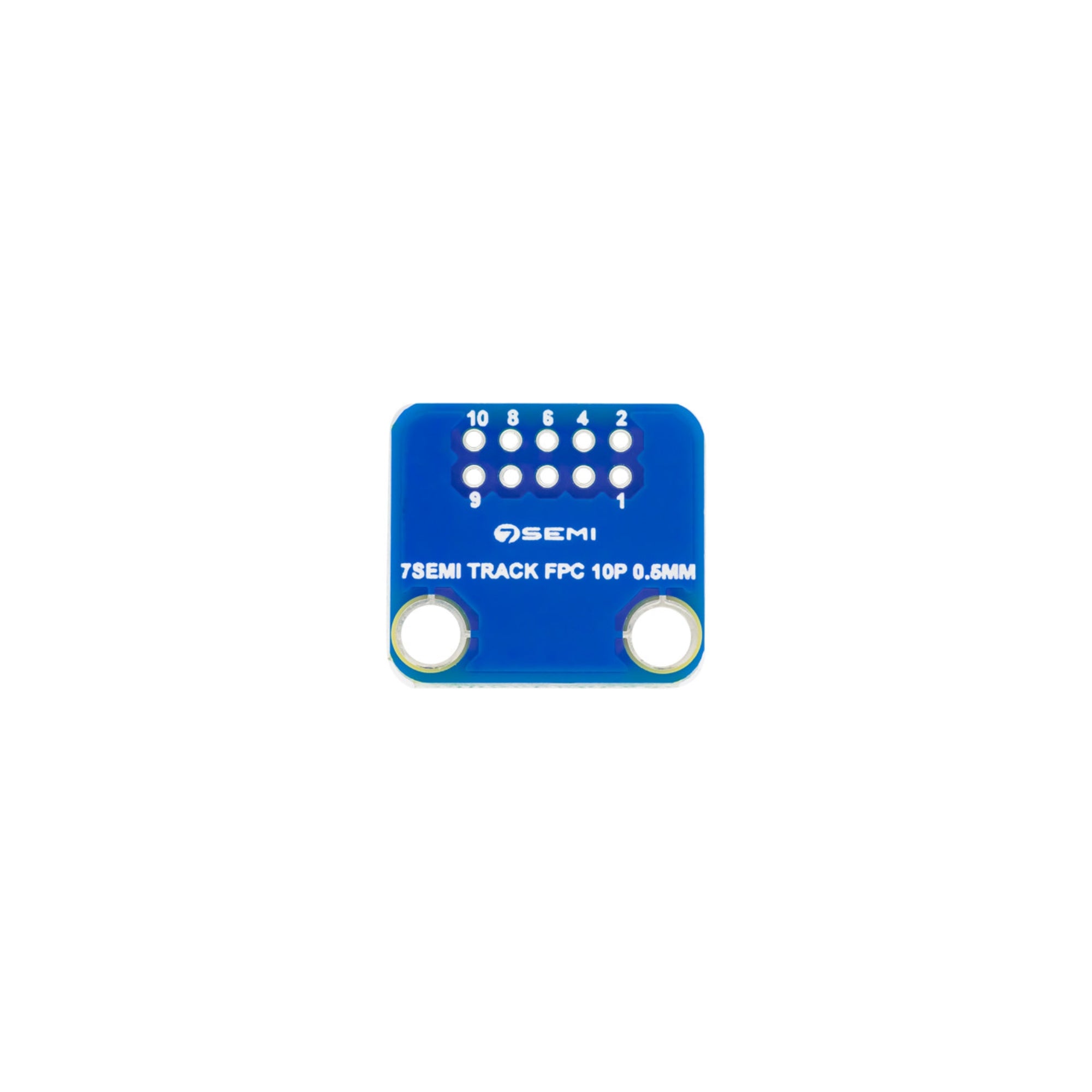

The 7Semi 10-Pin 0.5 mm FFC/FPC Connector Breakout Board is a compact adapter designed to convert fine-pitch 0.5 mm FFC/FPC cable connections into a standard 2.54 mm (0.1″) header format. It uses a low-profile 10-pin FFC/FPC connector and breaks out each pin to dual rows of through-hole pads compatible with breadboards and standard pin headers. This simplifies prototyping, testing, and interfacing flexible flat cables with microcontrollers, development boards, and custom PCBs.

Technical Specifications:

• Connector Type: 10-pin FFC/FPC socket
• Pitch: 0.5 mm
• Connector Height: Approximately 2 mm (low-profile)
• Output Pin Spacing: 2.54 mm (0.1″) dual-row pads
• Board Size: Approximately 22 mm × 20 mm
• Mounting Style: SMT connector pre-soldered
• Compatibility: 0.5 mm pitch flat cables (FFC/FPC)
• Pin Labels: Clearly printed on PCB for easy identification

Features:

• Converts fine-pitch 0.5 mm FFC/FPC cables to standard 2.54 mm pin headers
• Low-profile connector for compact designs
• Breadboard-friendly dual-row breakout layout
• Easy integration into prototyping and development setups
• Clear pin numbering to avoid wiring errors
• Ideal for working with displays, cameras, sensors, or modules using FFC/FPC connectors
• Saves time by eliminating the need for custom PCBs for fine-pitch connectors

Applications:

• Prototyping connections between flat cables and development boards
• Interfacing FFC/FPC-based displays, cameras, or sensors
• Robotics and embedded electronics using flexible cable assemblies
• Converting ultra-fine pitch connector interfaces to accessible test points
• Educational labs and DIY electronics involving flat-cable devices
• Debugging, measurement, and testing setups requiring FFC/FPC accessibility
