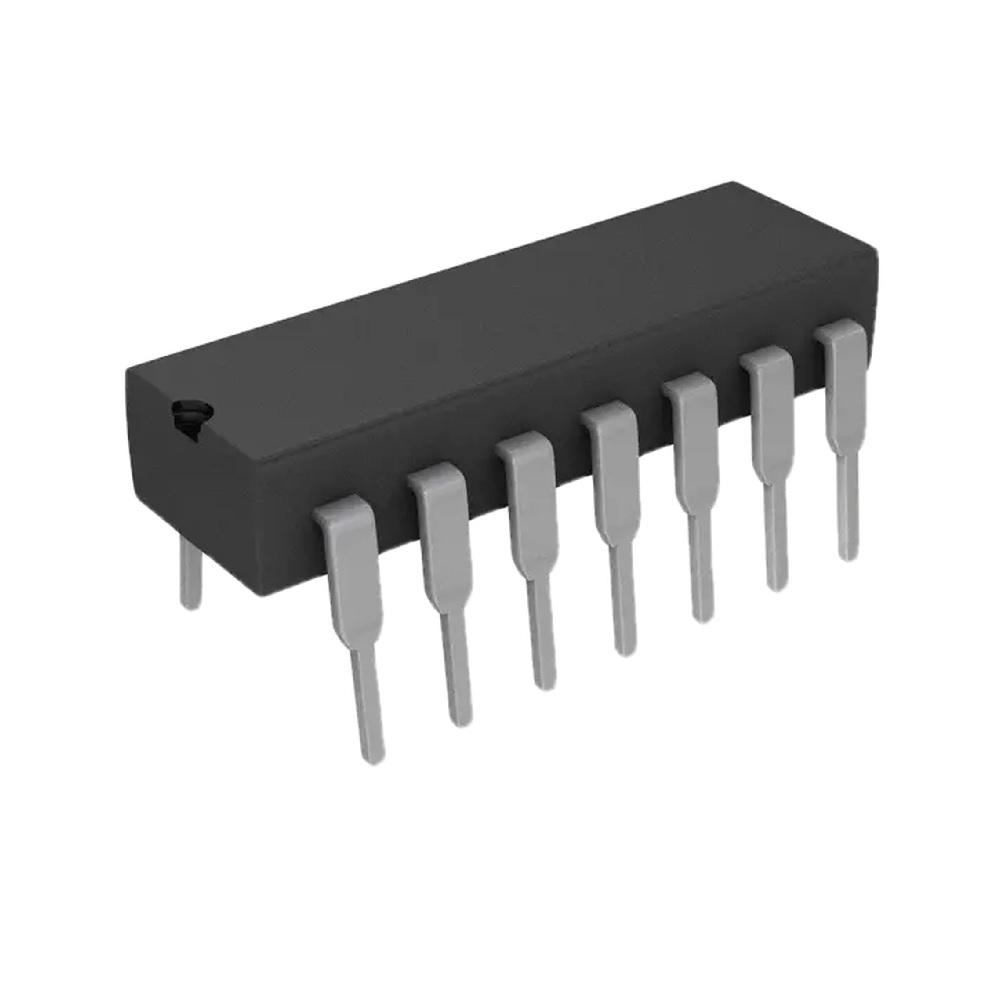

7486 Quad 2-Input EXOR Gate IC PDIP-14

Send Inquiry


The 74HCT86 is a high speed CMOS Logic quad 2-input XOR Gate. 74HCT86 contain four independent EXOR gates in one package. Logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption.

Technical Specification:

  • Operating Voltage Range: 2.0 to 6.0 V
  • Input Current: 1 uA
  • Powering Current: 20 uA
  • Output Current at VCC: 4 mA
  • Fan-Out: 10 LS-TTL Load
  • Propagation Delay: 10 ns
  • Temperature Range: -55 °C to +125 °C


  • Significant power reduction compared to LSTTL logic ICs
  • Large operating voltage
  • Its operating conditions are wide
  • It has TTL outputs
  • Its power consumption is low


  • Logic Buffer circuit
  • Basic Logic Circuits
  • Parity Checker
  • Controlled Inverter
  • Digital Comparator
  • Networking and Digital Systems
