Description
74HC series ICs are High-speed logic gates with very low power consumption that utilize advanced silicon-gate CMOS technology and 74HC32 is one of them. 74HC32 ICs contain 4 independent, 2 input OR gate.
Technical Specification:
- Operating Voltage Range: 2.0 to 6.0 V

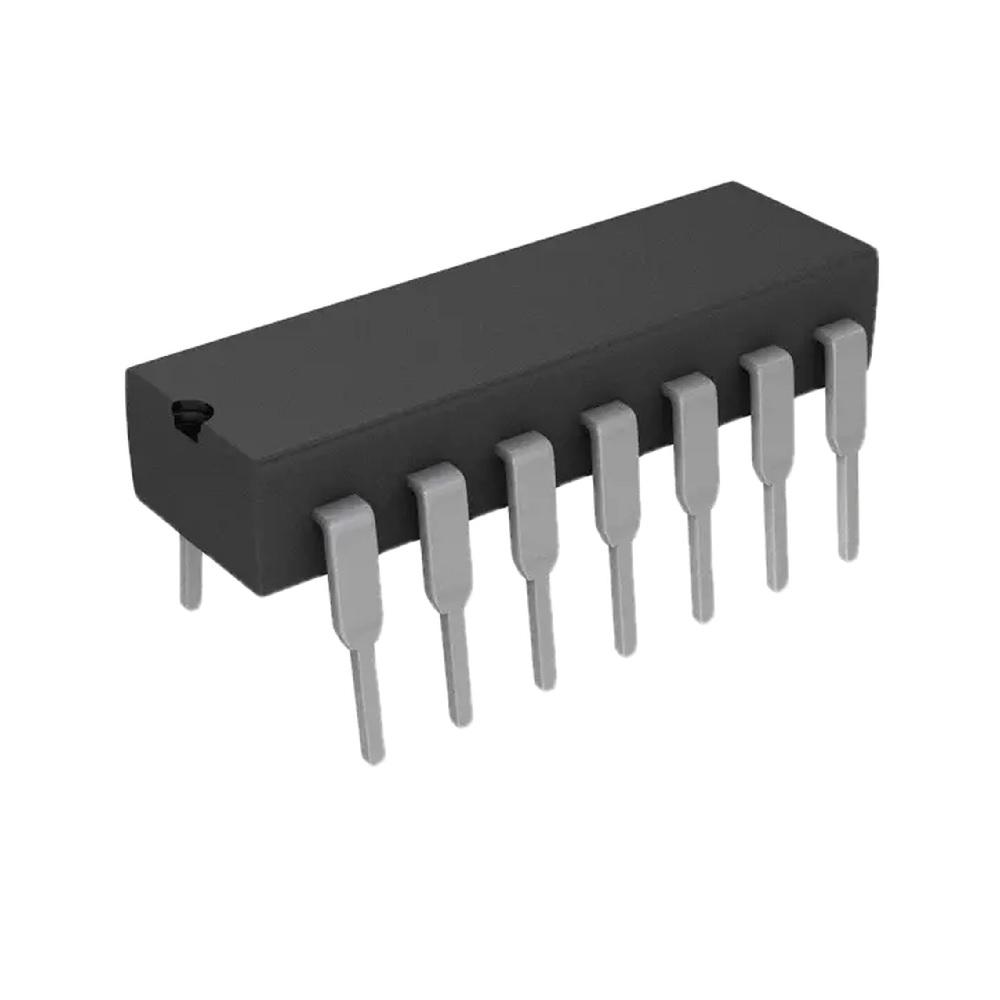

- Package: DIP−14
- Input Current: 1 uA
- Powering Current: 20 uA
- Output Current at VCC: 4 mA
- Fan-Out: 10 LS-TTL Load
- Propagation Delay: 8 ns
- Temperature Range: -65 °C to +150 °C
Features:
- Four 2-Input Logic OR Gates
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range
- Wide Operating Conditions
Applications:
- Toys
- Musical Instruments
- Medical Healthcare and Fitness
- Grid Infrastructure
- Electronic Point of Sale
- Test and Measurement
- Factory Automation and Control
- Building Automation
