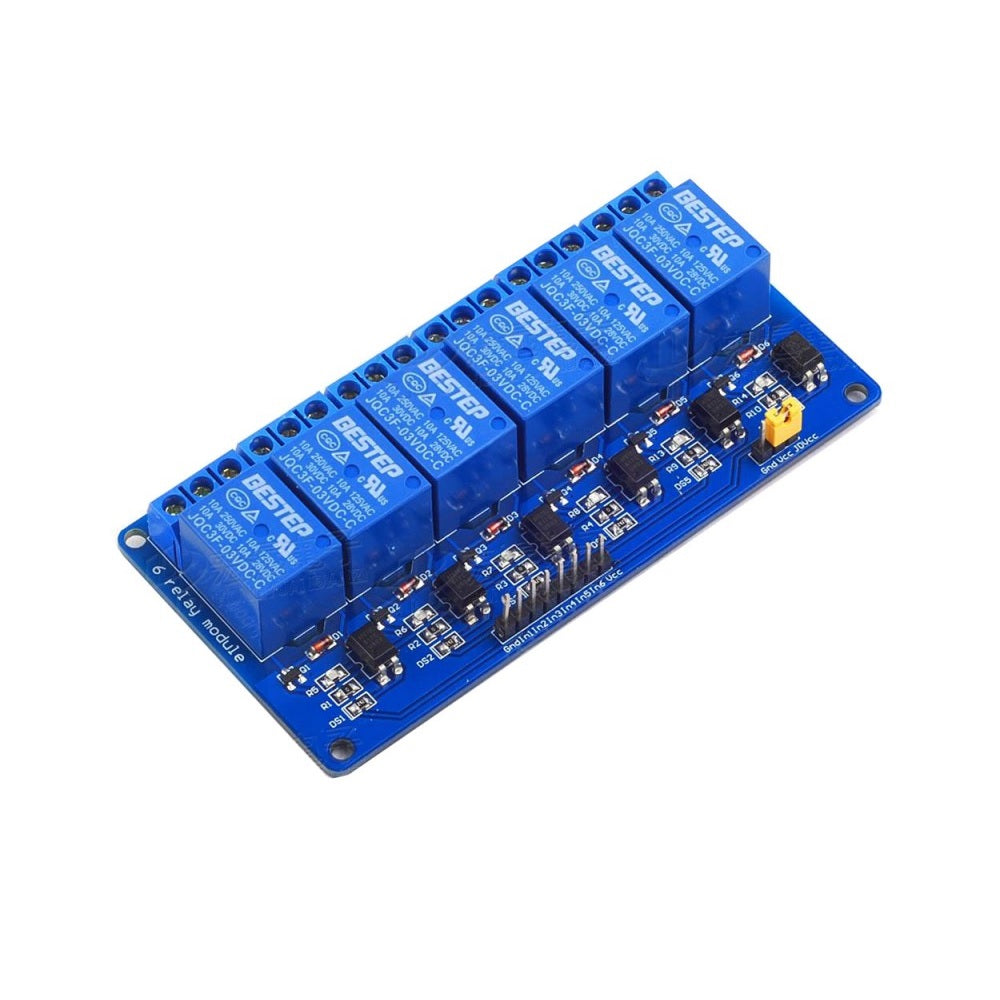

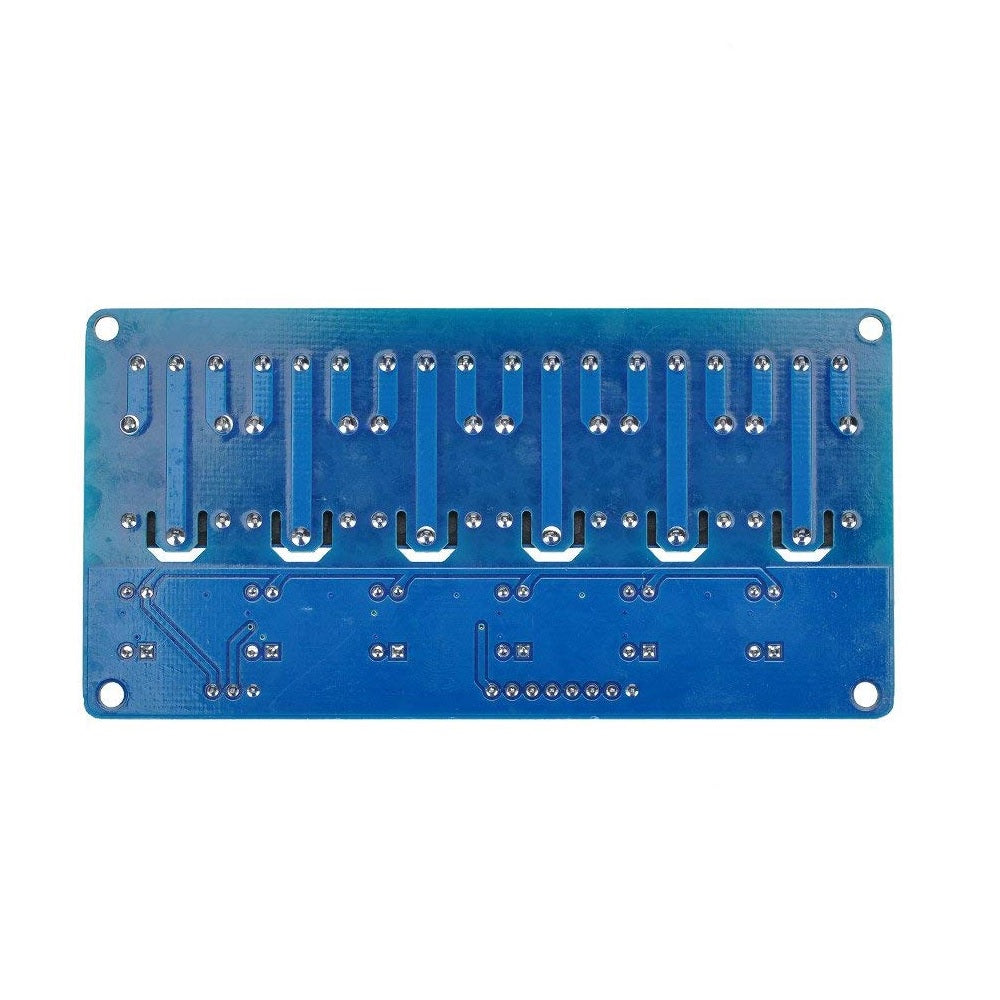

6 Channel 5V Relay Module with Optocoupler

SKU: VM00462

Price:
Sale price Rs. 0.00
(excl.18% GST)
Rs. 0.00

Description

6 channel relay output module which can be used to activate up to 250V, 10A. lnput IN1, IN2, IN3, IN4, IN5, IN6 signal wire, low level is effective, has low level trigger. The trigger terminal has optocoupler isolation.

Technical Specification:

  • Operating Voltage: 3V ~ 5V
  • Supply Current: 20mA
  • Trigger Voltage: 5V
  • Switching Voltage: 250@10A
  • Switching Voltage: 30@10A
  • Operating Temperature: -40°C to 85°C
  • Storage condition: – 65°C to 125°C
  • Size: 104mm*53mm*17mm (L*W*H)

 Features:

  • 6-way relay output module contact capacity is 10A 250V
  • Input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective
  • Using single-chip design, reliable performance, strong anti-interference, not false triggering and superior performance
  • The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated
  • Each relay has an action indicator light. With 4 fixed bolt holes, easy installation

Applications:

  • Industrial area
  • PLC control
  • Home intelligent control
