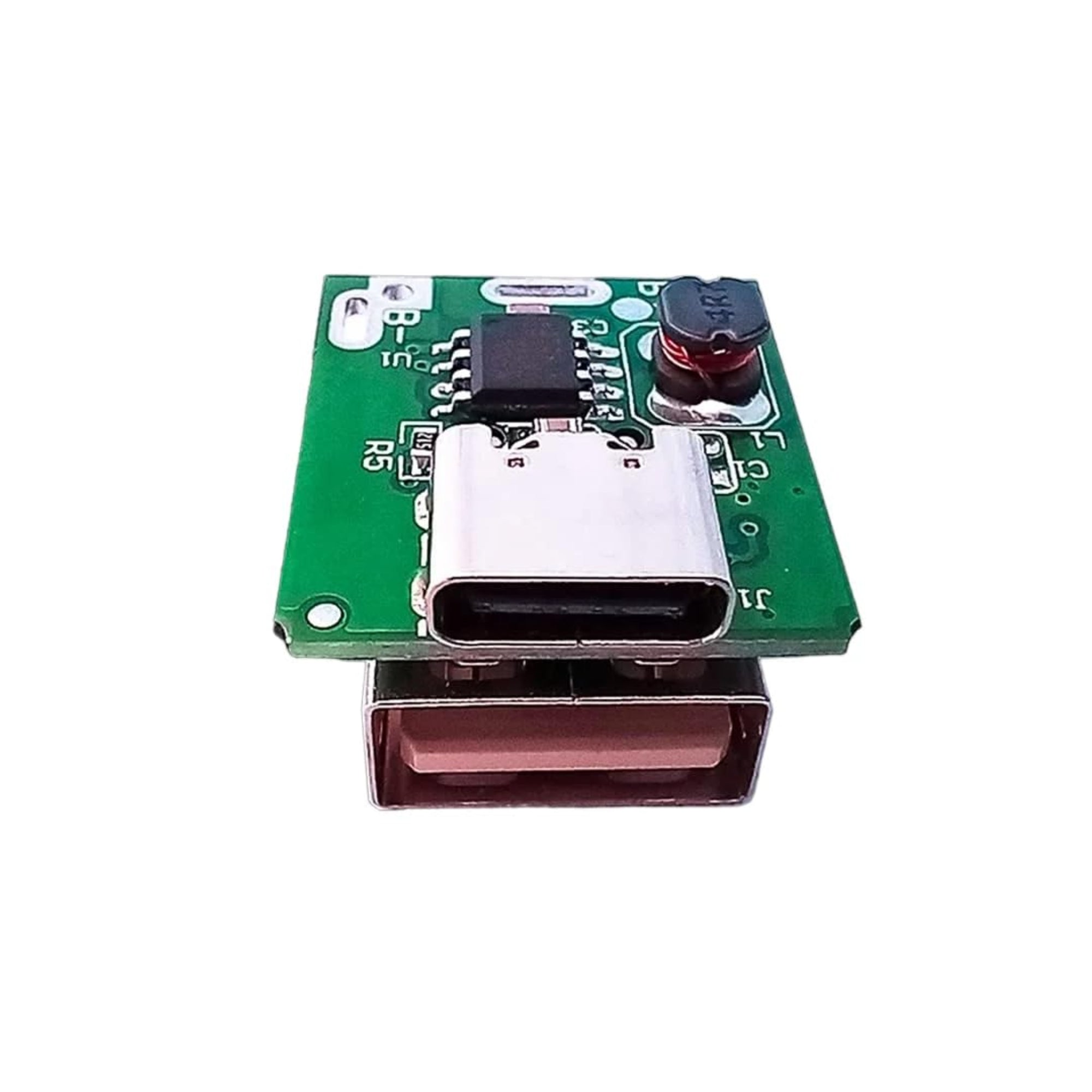

5V Booster and Charging Module Type C

The 5V Booster & Charging Module (Type-C) is a compact power management board designed for single-cell lithium battery applications. It integrates a Type-C input for charging and a DC-DC boost converter to step up the battery voltage to a stable 5V output. This module is commonly used in DIY power banks, portable electronics, and embedded projects where reliable 5V power is required from a Li-ion or Li-poly battery.

Technical Specification:

• Input power: 3.0–4.2V (single-cell Li-ion/Li-poly battery)
• Charging interface: USB Type-C
• Charging voltage: 5V
• Charging current: typically up to 1A (varies by design and thermal conditions)
• Output voltage: 5V regulated
• Output current: up to ~1A (depending on input voltage and efficiency)
• Conversion type: Boost (step-up) DC-DC
• Efficiency: up to ~85–90% (load dependent)
• Protection: over-charge, over-discharge, short-circuit (module dependent)
• Form factor: small PCB, lightweight, surface-mount components

Features:

• Integrated Type-C charging port
• Boosts single-cell battery voltage to stable 5V
• Compact and lightweight design
• High conversion efficiency
• Built-in battery protection support
• Easy integration into portable projects
• Suitable for power bank and USB power applications

Applications:

• DIY power banks
• Portable electronic devices
• Arduino, ESP32, and IoT projects
• Battery-powered embedded systems
• USB-powered gadgets and accessories
• Wearable and handheld electronics
