Description
This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels. Recommended to use with Arduino Due, Raspberry pi and any board that has 3.3v logic levels.
The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the HV' pin, low voltage (3.3V for example) to LV', and ground from the system to the GND pin.

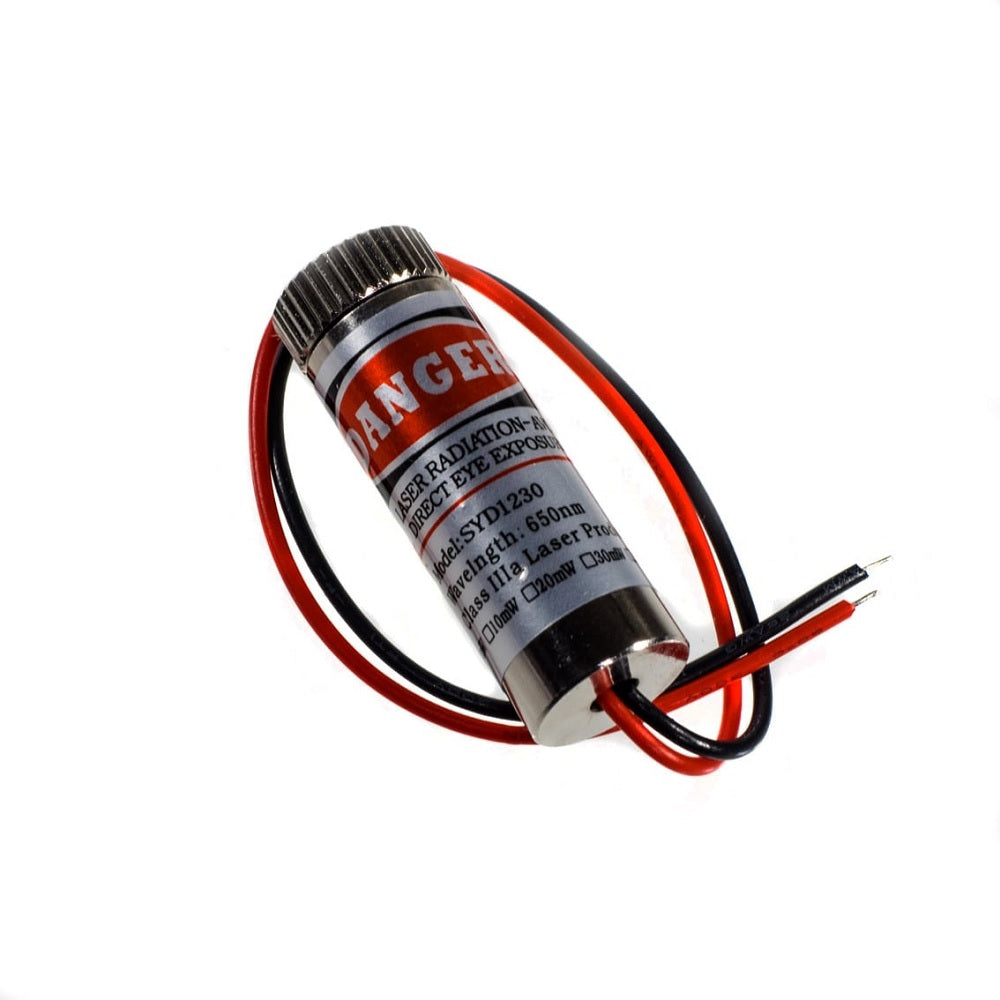

Technical Specification:
- Input Voltage: 3V – 6V DC
- Input Current: 40mA
- Wavelength: 650nm
- Output Type: Red POINT
- Cable Length: 130 mm
- Size: 35mm*12mm*14mm (L*W*H)
Features:
- Laser Type: Red CROSSLINE Laser
- Easy to install, durable, and portable
- The Focus line’s Intensity can be adjusted with the help of a lens ring head
- The red cord is an anode, the black cord is a cathode
Applications:
- Can be used to aim for positioning
- Can be used for laser test instruments
- Can be used for concentricity positioning
- Can be used for positioning medical equipment
- Can be used for signal equipment production
