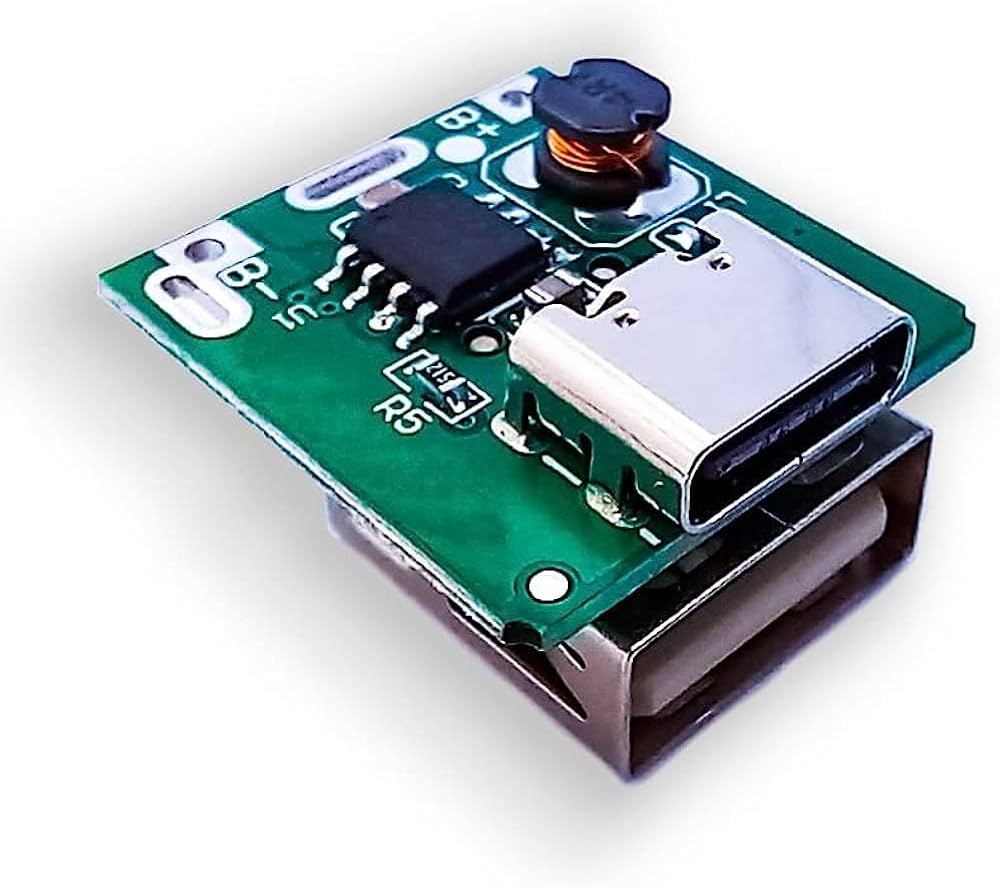

Type-C USB 5V 1A Step-Up Boost Converter Power Bank Charging Module with Charging Protection

This 5V/1A Boost & Charge Type-C module is a compact power management solution designed for single-cell lithium battery applications. It integrates battery charging via a USB Type-C interface and a step-up (boost) converter to provide a stable 5V output, making it ideal for portable and battery-powered electronics. The module simplifies power design by combining charging and boosting functions on a single PCB.

Technical Specifications:

• Input power: USB Type-C

• Battery type: Single-cell Li-ion / Li-Po (3.0–4.2V)

• Charging voltage: 5V (via Type-C)

• Charging current: Up to 1A

• Output voltage: 5V DC

• Output current: Up to 1A

• Conversion type: Boost (step-up)

• Protection features: Over-charge, over-discharge, short-circuit protection

• PCB size: Compact, lightweight design

• Connector type: USB Type-C, solder pads for battery and output

Features:

• Integrated battery charging and 5V boost in one module

• USB Type-C input for modern power compatibility

• Stable 5V output suitable for microcontrollers and USB devices

• Supports portable and wearable electronics

• Built-in safety and protection circuitry

• Easy integration with minimal external components

Applications:

• Power banks and portable chargers

• Battery-powered IoT and embedded systems

• Arduino, ESP32, Raspberry Pi Pico portable projects

• DIY electronics and prototyping

• Wearable and handheld devices

• Rechargeable 5V supply for sensors and modules
