Description

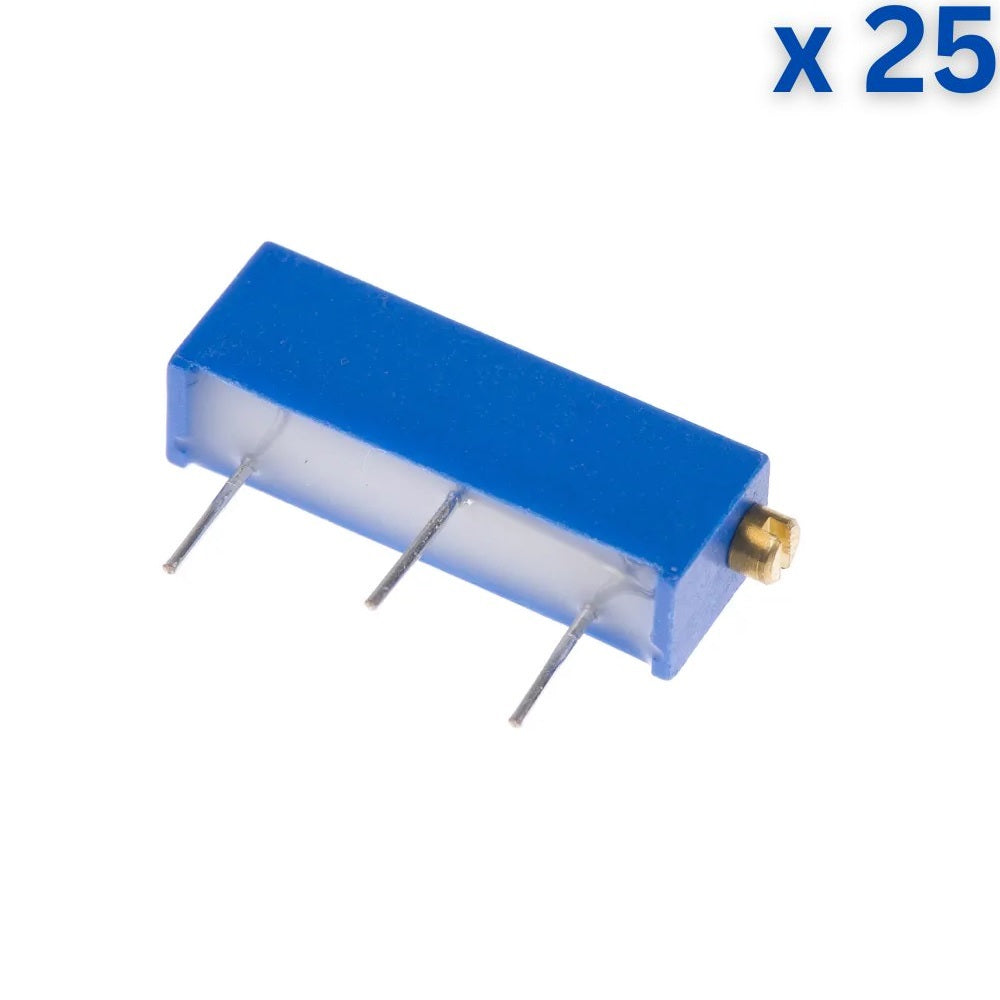

A Trimpot is another type of potentiometer that comes in small package. It has three leads and can be easily mounted on breadboard or perf board for quick prototyping. The value of the pot can changed by varying the knob on top of it. This is 5KΩ variable resistor (3006 Package) which has a single turn, which can be used to preset a value.
Technical Specification:
- Series: 3006P
- Power (Watts): 0.75W, 3/4W
- Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Number of Turns: 15
- Adjustment Type: Side Adjustment
- Resistive Material: Cermet
- Mounting Type: Through Hole
- Termination Style: PC Pins
- Size / Dimension: Rectangular - 0.250" x 0.190" Face (6.35mm x 4.83mm)
- Size : 19x5x7mm
- Weight : 2gm
Features:
- 3/4 ” Rectangular / Multiturn Cermet / Industrial / Sealed
- Panel mount option available
- Transparent housing available can be set visually without hook-up and instrumentation (“P” style only)
Pin Description:
Applications:
- Audio control
- Television
- Motion control
- Transducers
- Computation
- Home Electrical Appliances
- Oscillators
