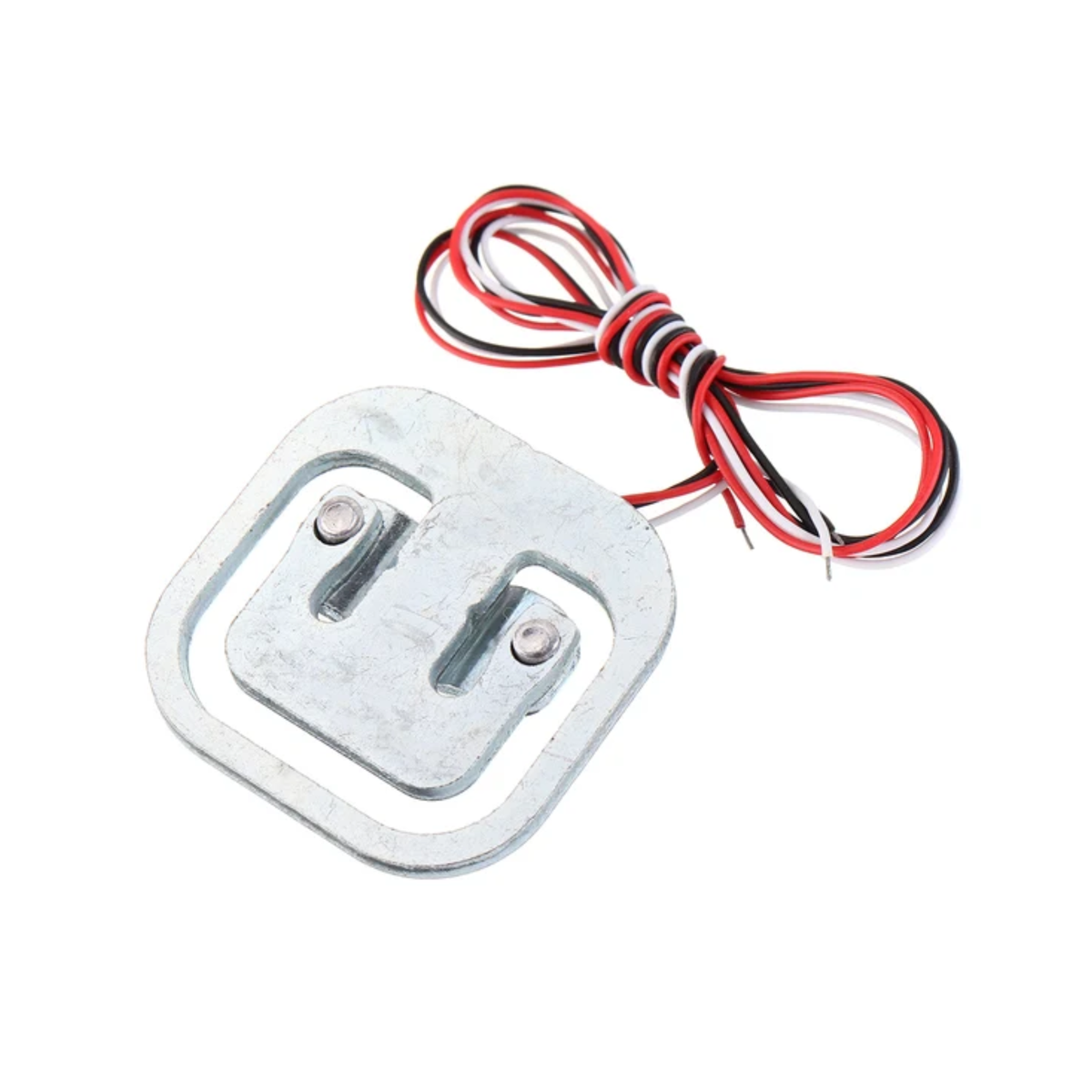

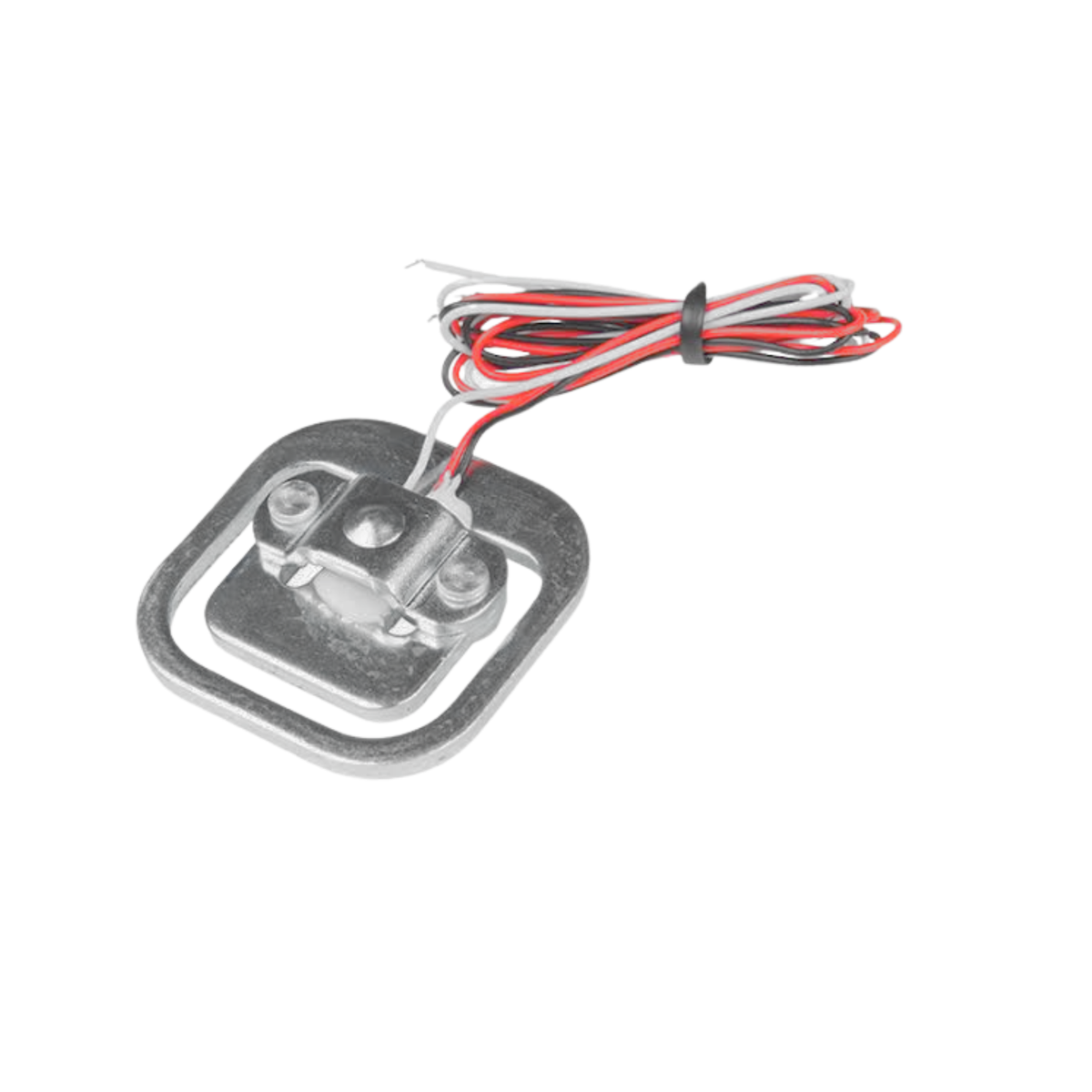

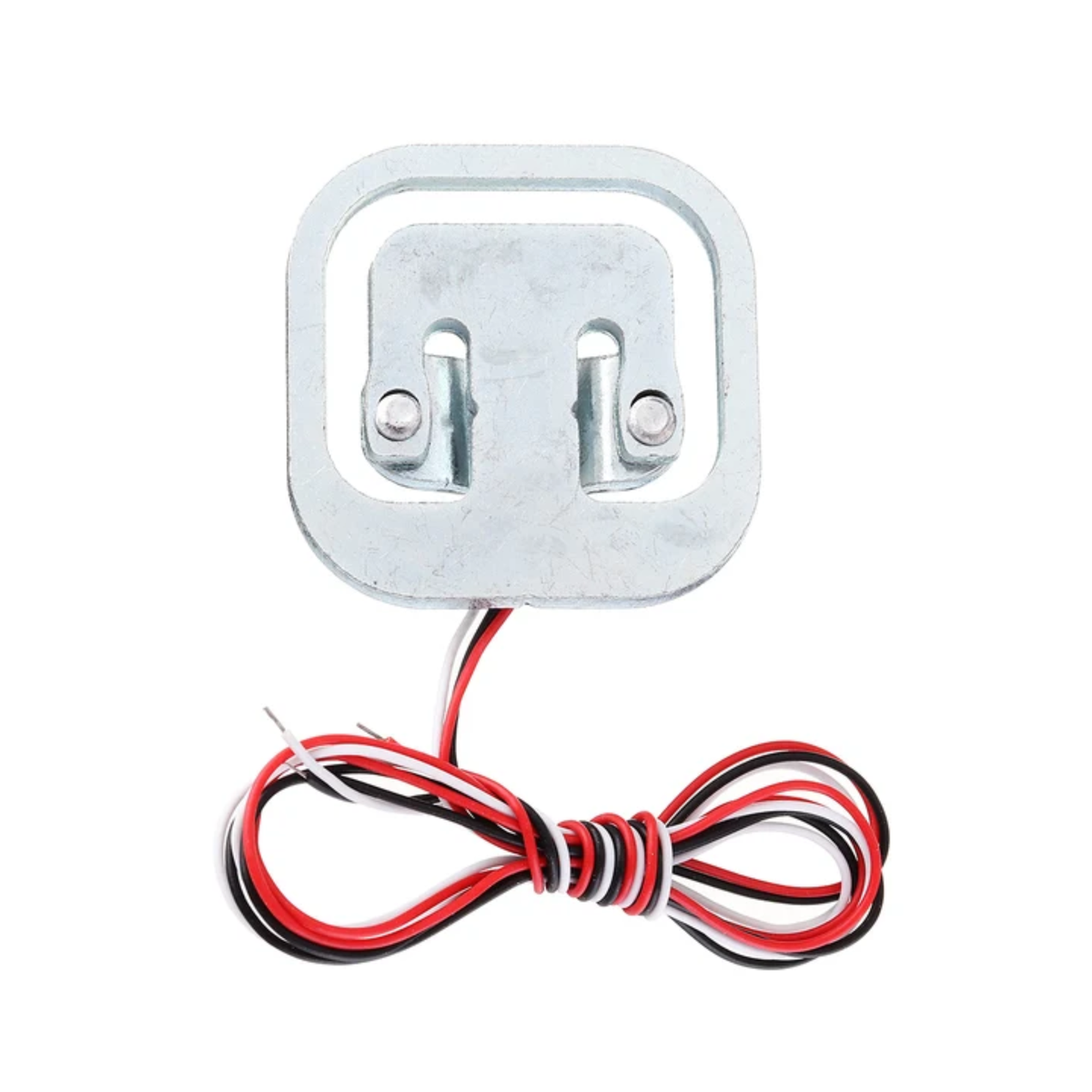

50kg Half-Bridge Load Cell Sensor for Body Scales

The 50Kg Miniature Load Cell is a compact strain-gauge weight sensor designed for measuring force and weight in electronic weighing systems. It uses a half-bridge configuration and provides a small electrical signal proportional to the applied load. The sensor is commonly used with an HX711 load-cell amplifier and microcontrollers for digital weight measurement.

Technical Sepcifications:

• Load Capacity: 50 kg per sensor
• Sensor Type: Half-Bridge Strain Gauge Load Cell
• Wiring: 3-Wire – Red, Black and White
• Excitation Voltage: 3V–10V DC
• Input Resistance: Approx. 1000Ω
• Output Resistance: Approx. 1000Ω
• Output Sensitivity: Approx. 0.8–1.0 mV/V
• Operating Temperature: Approx. -10°C to +60°C
• Safe Overload: Up to 150% F.S.

Features:

• Compact miniature construction
• Supports loads up to 50 kg
• Half-bridge strain gauge sensing
• Three-wire electrical connection
• Good repeatability for weighing applications
• Can be combined with multiple load cells
• Compatible with HX711 load-cell amplifier modules
• Suitable for integration with Arduino and other microcontrollers

Applications:

• Digital weighing scales
• Bathroom and body weighing scales
• Platform weighing systems
• Electronic weighing machines
• DIY weight measurement projects
• Arduino weighing projects
• Force and load monitoring systems
• Smart weighing and automation systems
