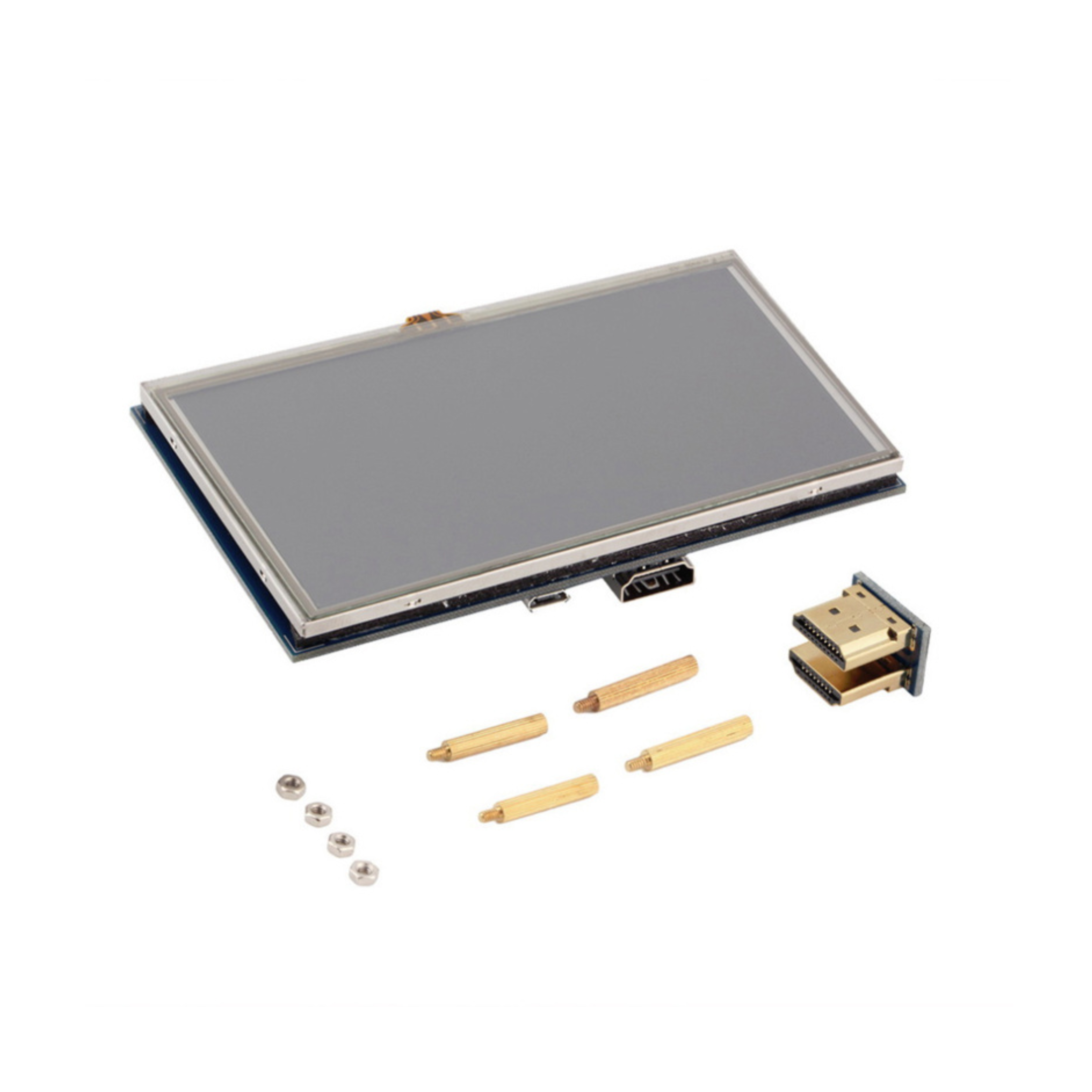

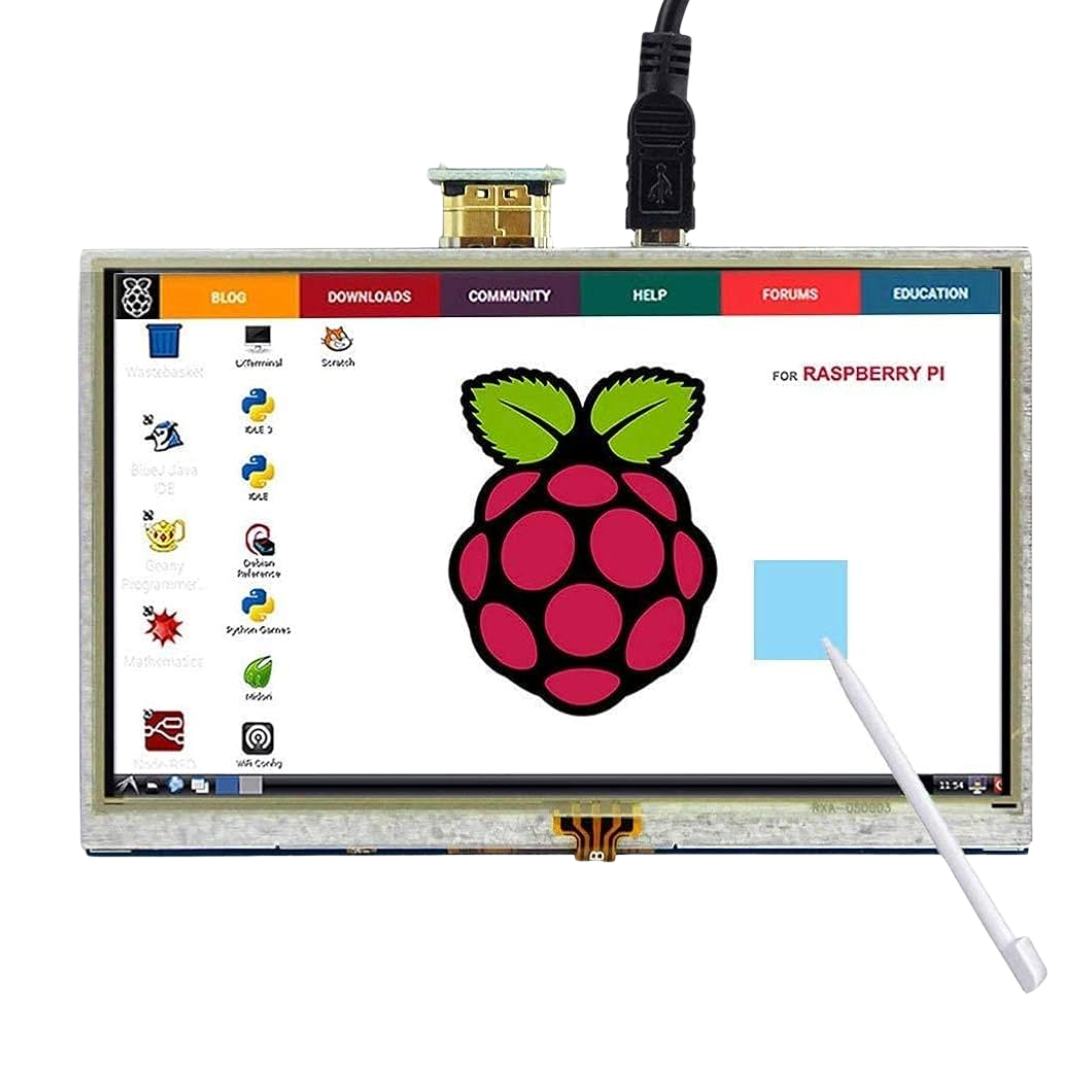

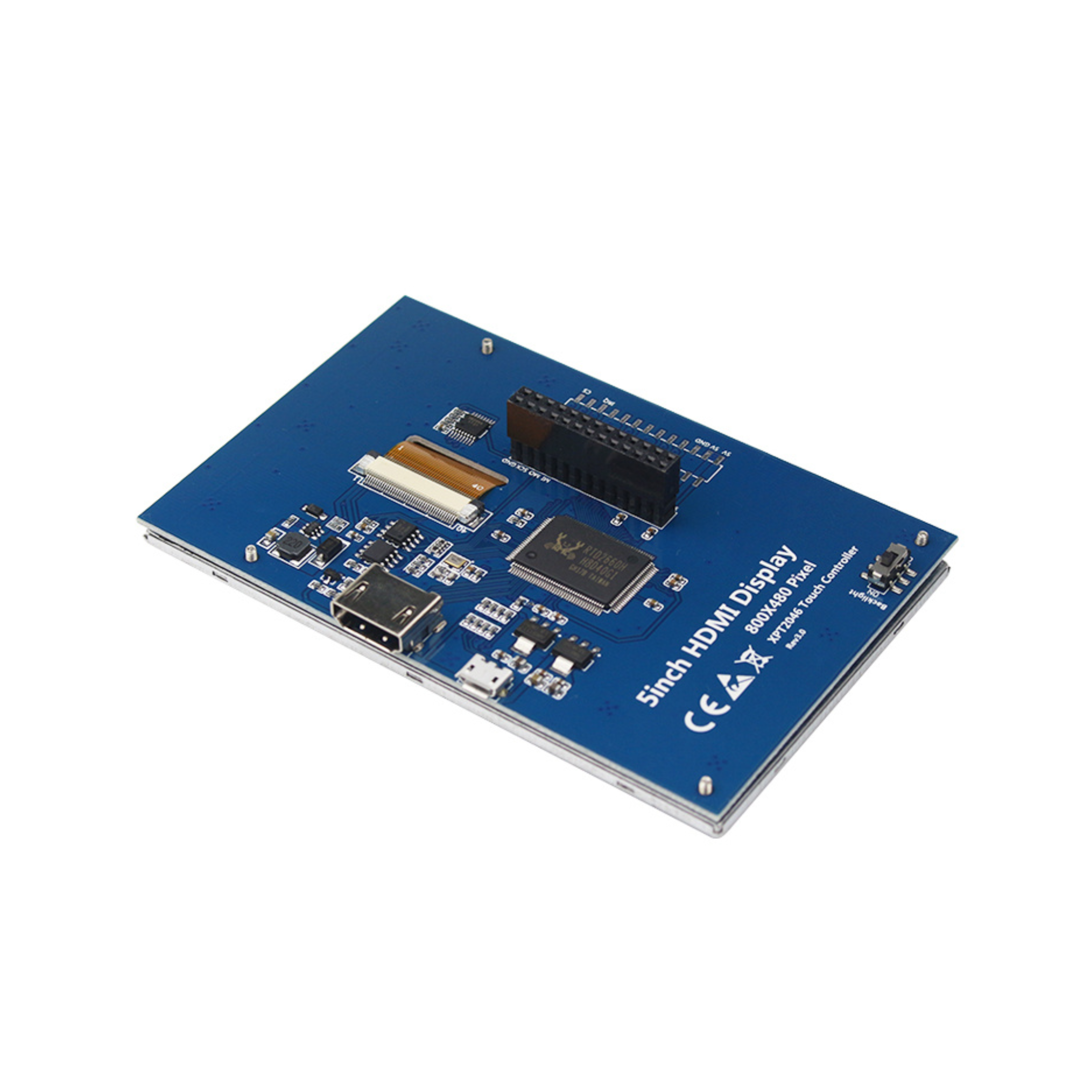

5" TFT Touch Screen Display for Raspberry Pi

The 5-inch TFT Touch Screen Display is a compact LCD module designed primarily for use with Raspberry Pi boards. It provides a high-resolution visual interface combined with touch functionality, allowing users to interact directly with applications without the need for external peripherals like a mouse or keyboard. The display connects via HDMI for video output and USB for touch input, making it easy to set up and use in embedded and portable systems.

Technical Specifications:

• Display Size: 5 inches

• Display Type: TFT LCD

• Resolution: 800 × 480 pixels

• Touch Type: Resistive touch (stylus or finger input)

• Interface: HDMI (display), USB (touch)

• Operating Voltage: 5V DC

• Power Consumption: ~500–800 mA

• Aspect Ratio: 16:9

• Viewing Angle: Wide viewing angle

• Backlight: LED backlight

• Mounting: Supports Raspberry Pi mounting with standoffs

Features:

• Plug-and-play compatibility with Raspberry Pi

• Supports touch input via USB interface

• Compact and portable design

• Compatible with multiple operating systems (Raspberry Pi OS, Ubuntu, etc.)

• Resistive touch allows use with stylus or gloves

• HDMI interface ensures high-quality display output

• Adjustable brightness and backlight

• Can be used as a standalone HDMI monitor

• Easy mounting on Raspberry Pi boards

Applications:

• Portable Raspberry Pi projects

• DIY tablets and handheld devices

• Embedded system interfaces

• Home automation control panels

• Industrial control displays

• Media centers and mini PCs

• Educational and development projects
