Description

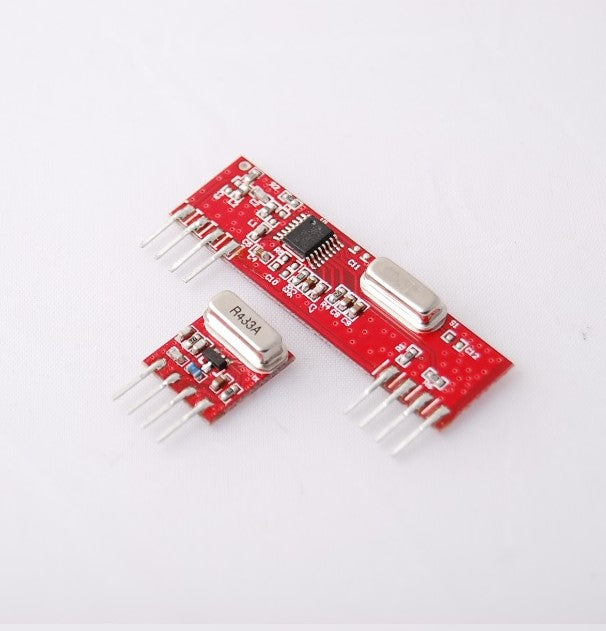

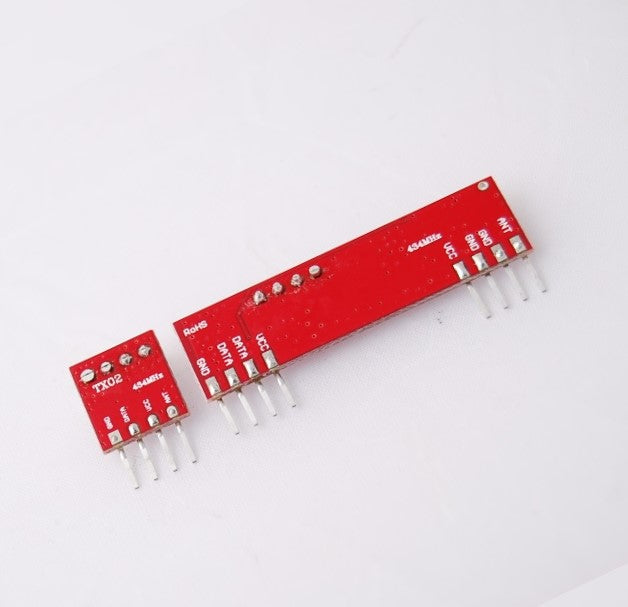

433Mhz RF receiver and transmitter module and is ideal for short-range wireless control applications where quality is a primary concern. The transmitter Module employs a SAW-stabilized oscillator, ensuring accurate frequency control for best range performance. The transmitter Power supply ranges from a 3-12V , making it ideal for battery-powered applications. The receiver module requires no external RF components except for the antenna. The super-regenerative design exhibits exceptional sensitivity at a very low cost.
Technical Specification:
RF Transmitter parameters:
- Frequency Range: 433.92 MHZ
- Supply Voltage: 3~12V
- Output Power : 4~16dBm
- Circuit Shape: Saw
- Temperature Range: - 40 degree C ~ + 80 degree C
RF Receiver 433Mhz parameters:
- Receiver Frequency:433.92 MHZ
- Typical sensitivity: -105dBm
- Supply Current: 2.5mA
- IF Frequency: 500KHz
- Operation voltage: 5 Volts
Features:
- Complete Radio Transmitter
- Transmit Range Up To 50m
- CMOS / TTL Input
- No Adjustable Components
- Very Stable Operating Frequency
- Low Current Consumption (Typ 11mA)
- Wide Operating Voltage (1.5-5v)
- ASK Modulation
Applications:
- Remote Gate Controls
- Remote Sensing
- Data Capture
- Sensor Reporting
