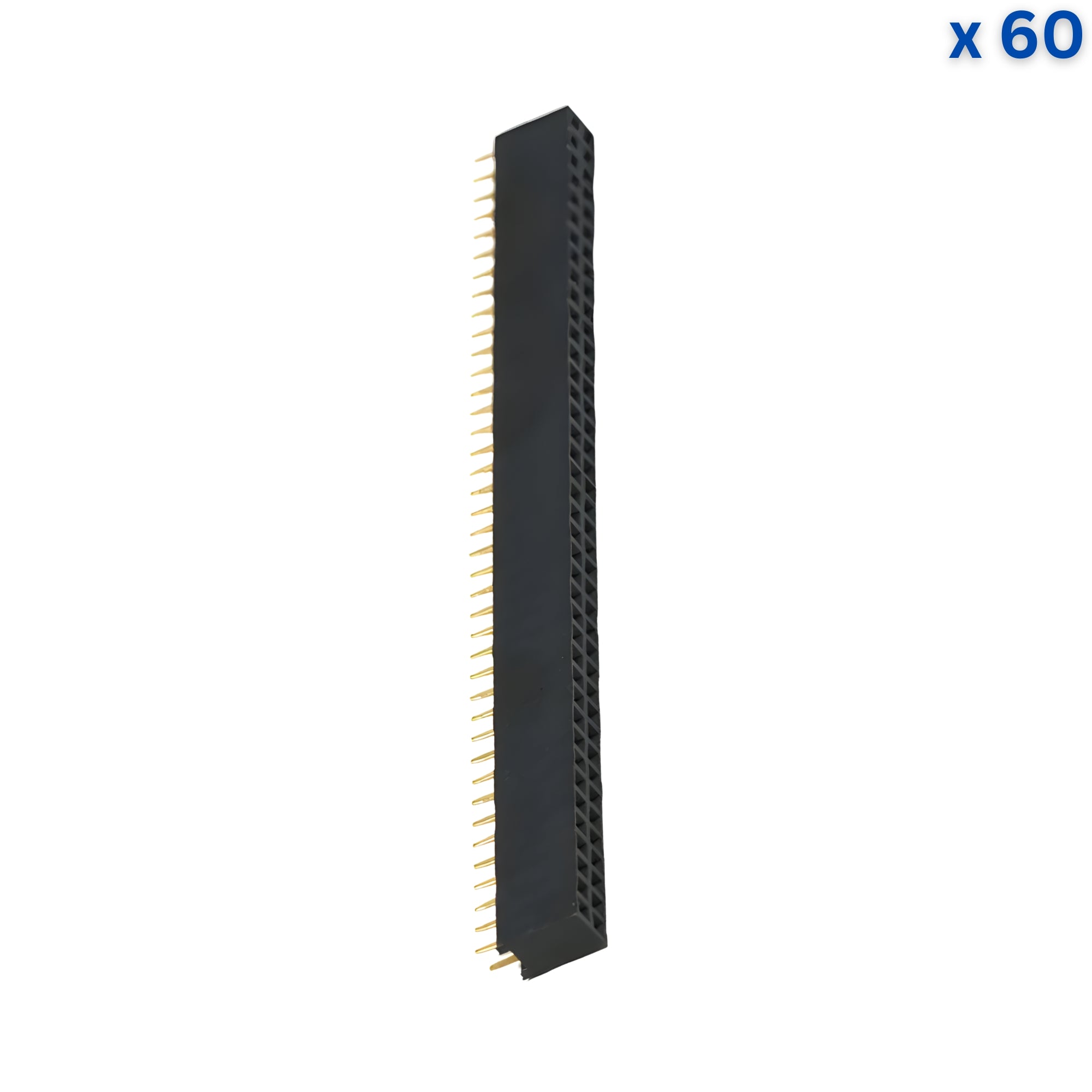

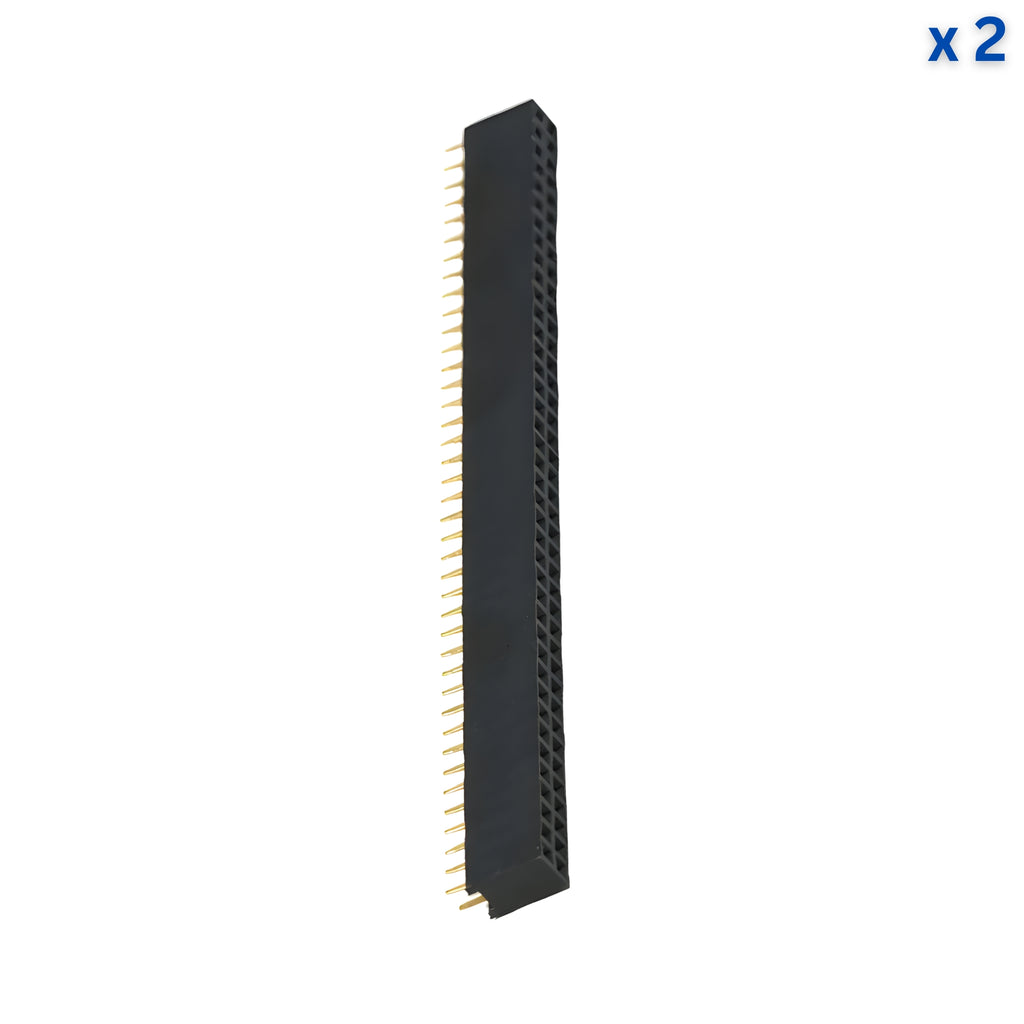

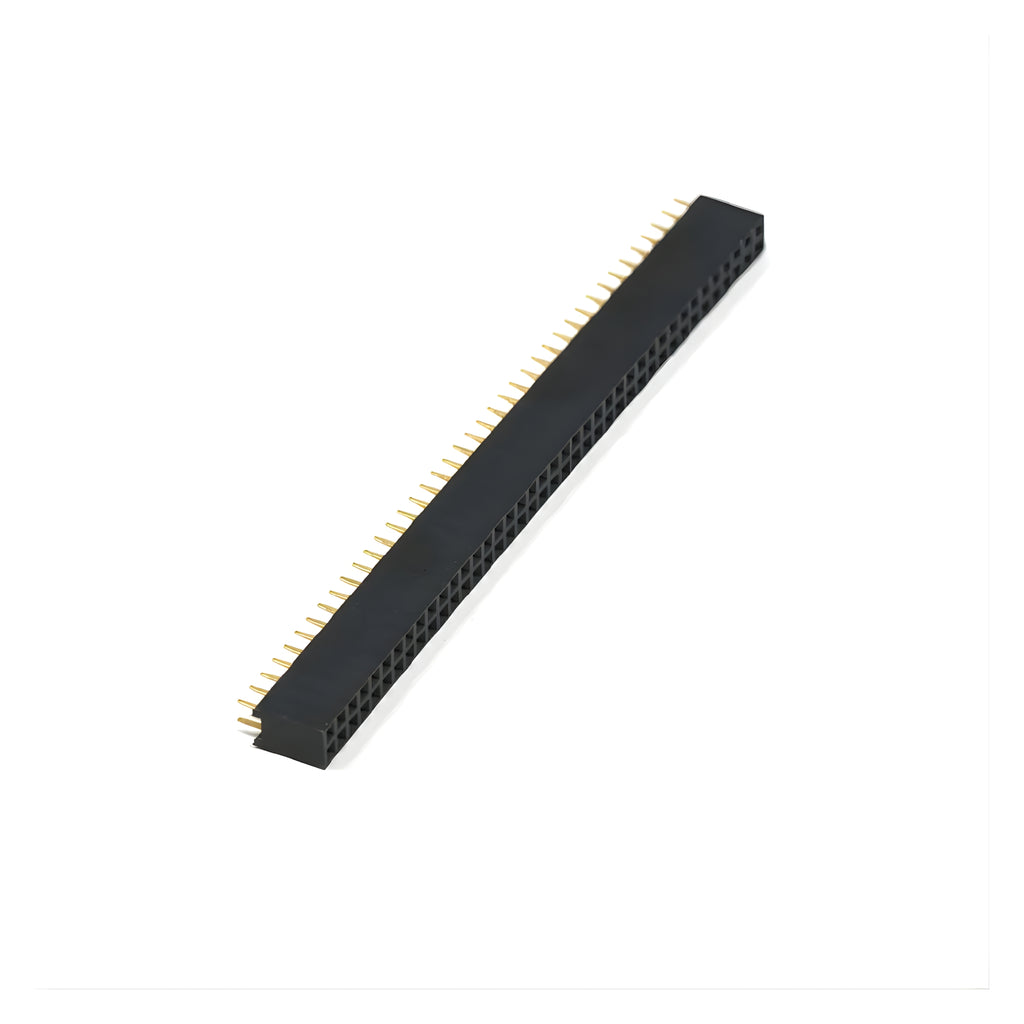

40x2 2mm Female Pin Header

The 40×2 2.0 mm Female Pin Header is a dual-row socket header designed for compact, high-density PCB connections. With a 2.0 mm pitch and 80 total contacts arranged in two parallel rows, it is ideal for modern microcontrollers, embedded modules, and board-to-board interconnections where space savings are critical. The female socket design allows secure and repeatable mating with corresponding male pin headers while maintaining a clean, professional PCB assembly.

Technical Specification:

• Product Type: Female Pin Header (Socket)

• Configuration: 2 × 40 pins (80 positions)

• Pitch: 2.0 mm

• Mounting Type: Through-hole (THT)

• Row Spacing: 2.0 mm

• Pin Orientation: Straight

• Contact Material: Copper alloy

• Contact Plating: Gold-plated or tin-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~0.5–1 A per contact (typical)

• Rated Voltage: Up to 100 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required pin count

Features:

• Compact 2.0 mm pitch for high-density designs

• Dual-row configuration increases signal capacity

• Secure female socket contact for reliable mating

• Suitable for standard through-hole soldering

• Durable insulating body with good mechanical strength

• Can be customized by cutting to shorter lengths

Applications:

• Microcontroller and processor boards

• Embedded systems and IoT hardware

• Board-to-board and module-to-module connections

• FPGA, DSP, and communication modules

• Consumer electronics and industrial control PCBs
