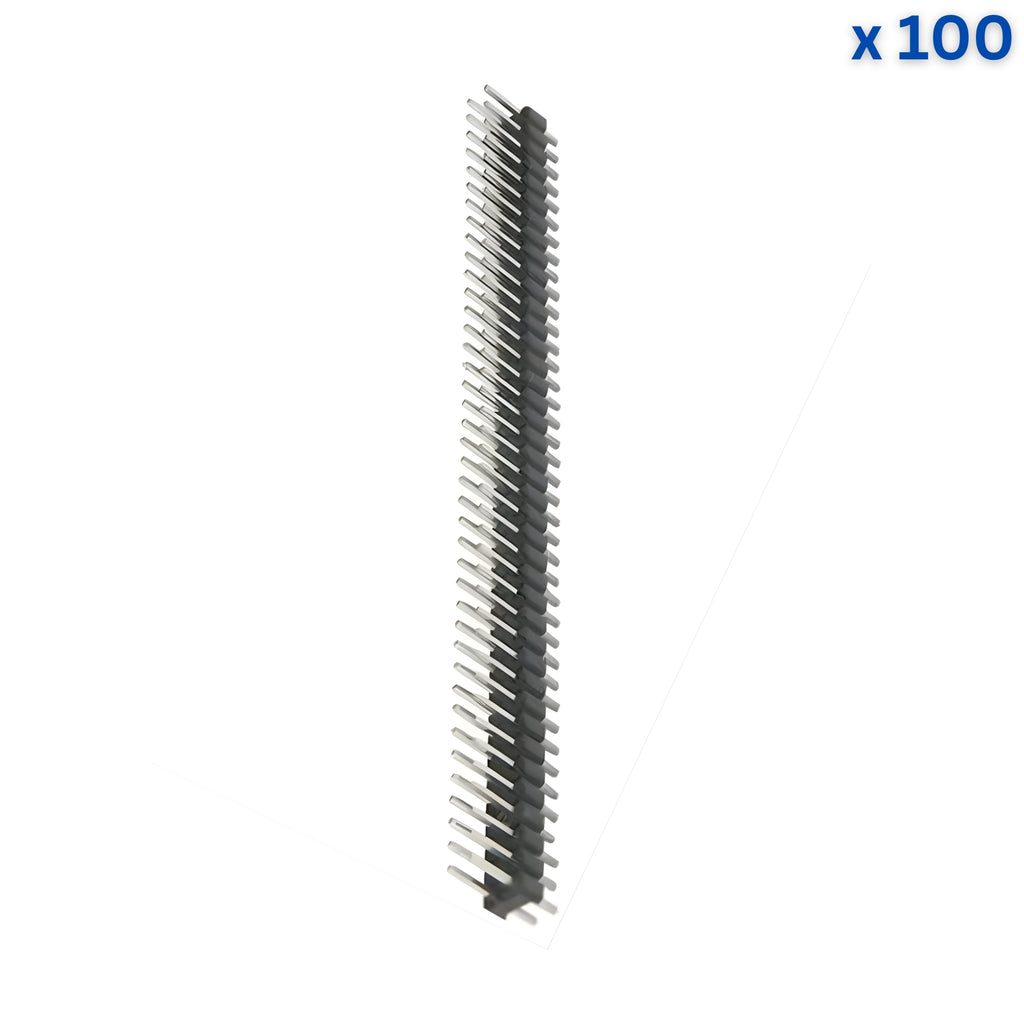

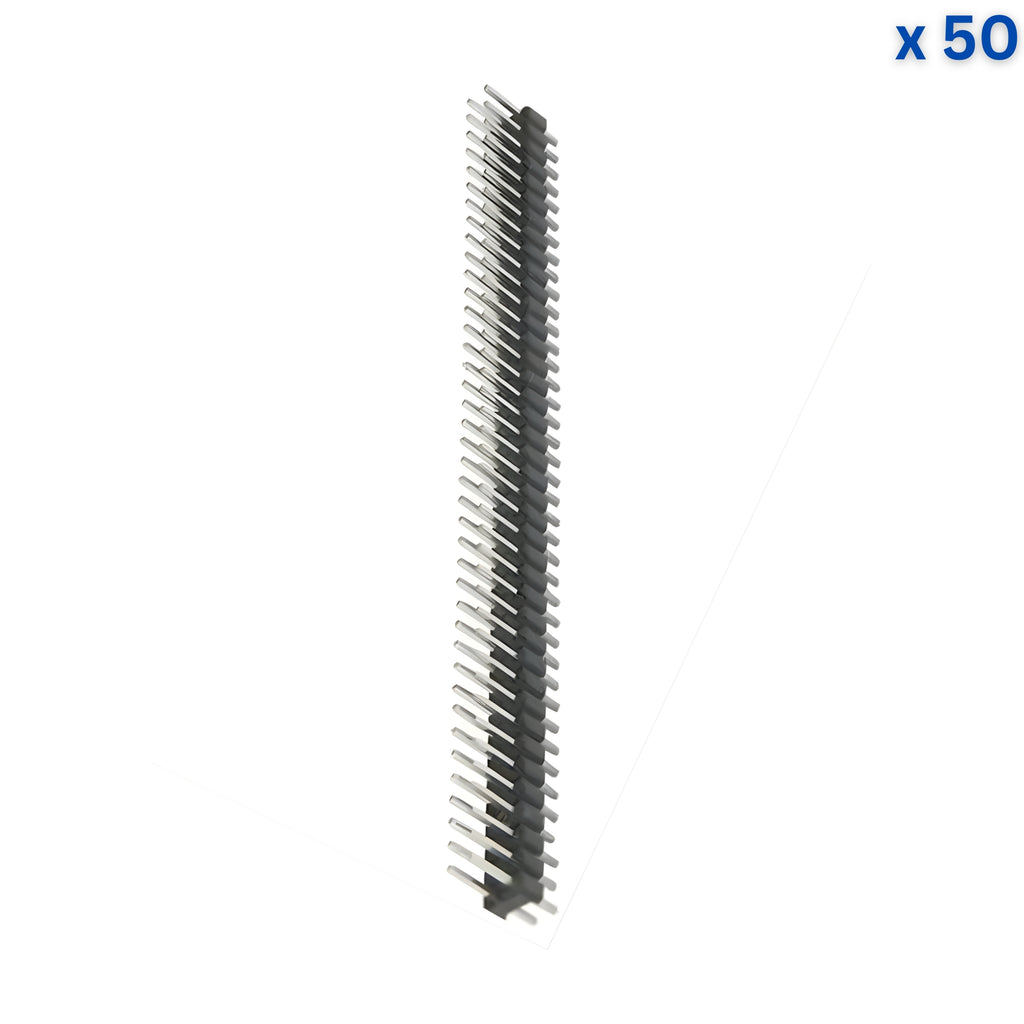

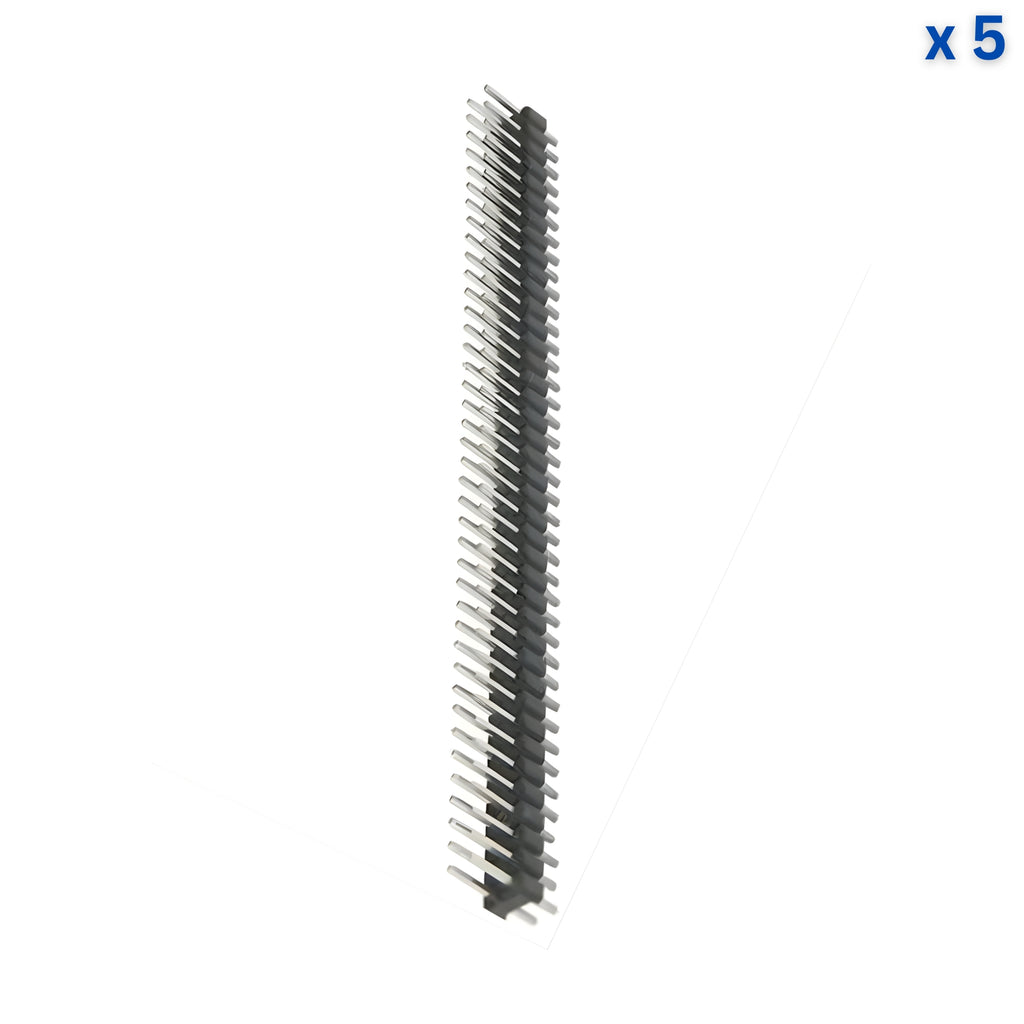

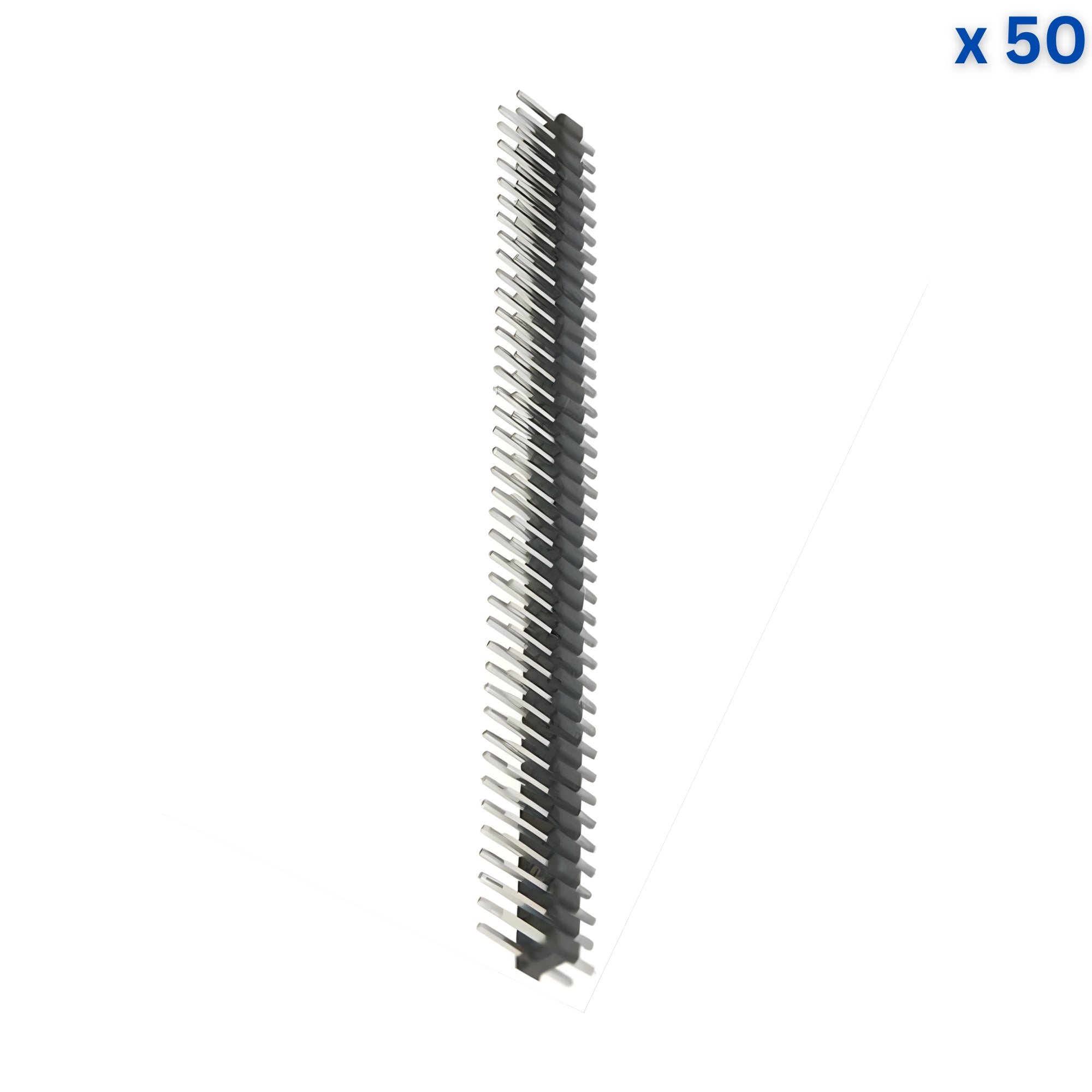

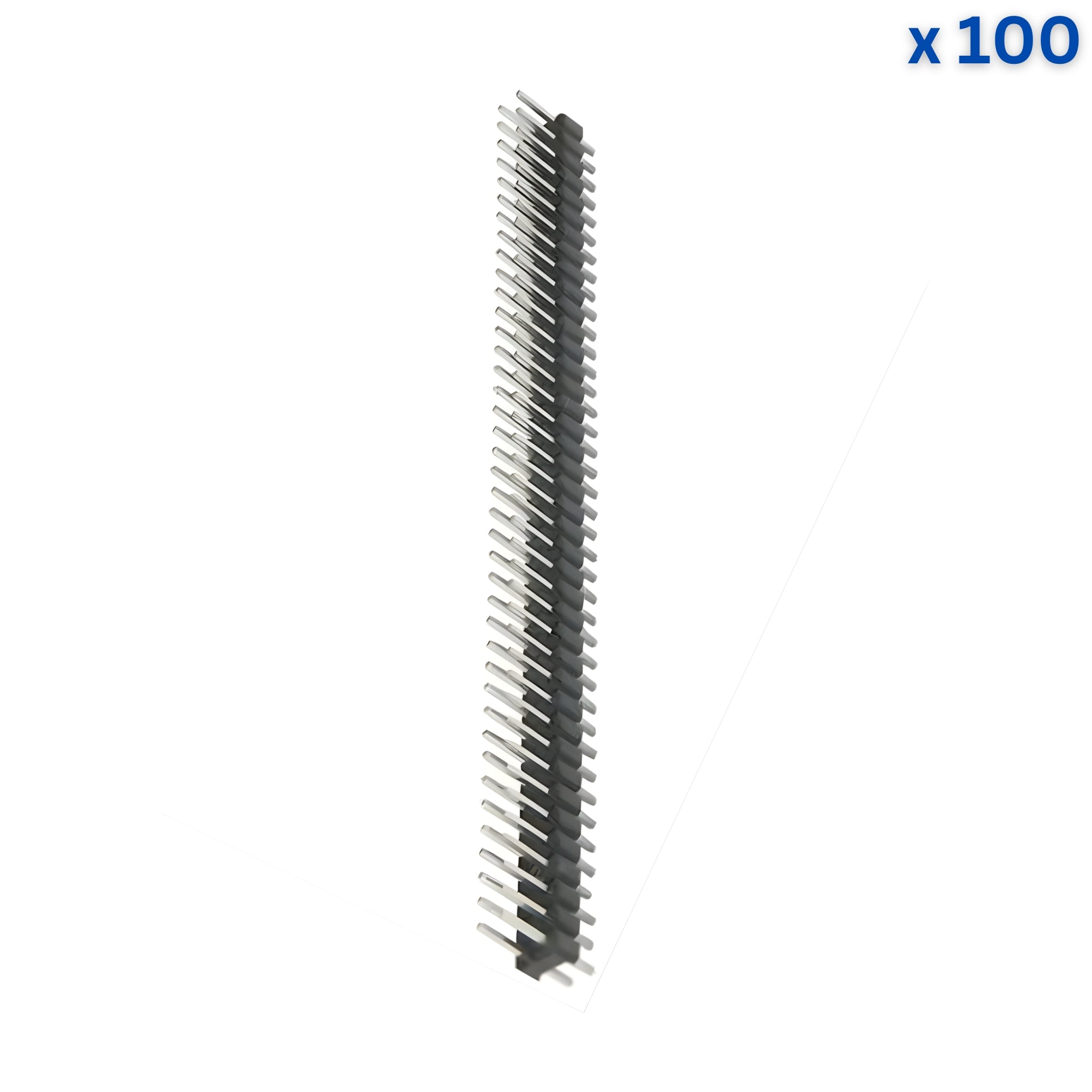

40x2 2mm Male Pin Header

The 40×2 2.0 mm Male Pin Header is a dual-row, fine-pitch connector designed for compact and high-density PCB interconnections. With 80 pins arranged in two parallel rows at a 2.0 mm pitch, it provides reliable board-to-board and module connections while saving space compared to standard 2.54 mm headers. This header is well suited for modern embedded systems, communication modules, and compact development boards.

Technical Specification:

• Product Type: Male Pin Header

• Configuration: 2 × 40 pins (80 pins total)

• Pitch: 2.0 mm

• Row Spacing: 2.0 mm

• Mounting Type: Through-hole (THT)

• Pin Orientation: Straight

• Contact Material: Copper alloy

• Contact Plating: Tin-plated or gold-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~0.5–1 A per pin (typical)

• Rated Voltage: Up to 100 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required pin length

Features:

• Compact 2.0 mm pitch for high-density PCB layouts

• Dual-row design supports more signals in less space

• Strong and stable through-hole soldering

• Compatible with 2.0 mm female headers and sockets

• Durable construction for reliable electrical performance

• Customizable length by cutting to size

Applications:

• Microcontroller and processor boards

• Embedded systems and IoT devices

• Board-to-board and module-to-module connections

• FPGA, communication, and interface modules

• Consumer electronics and industrial control systems
