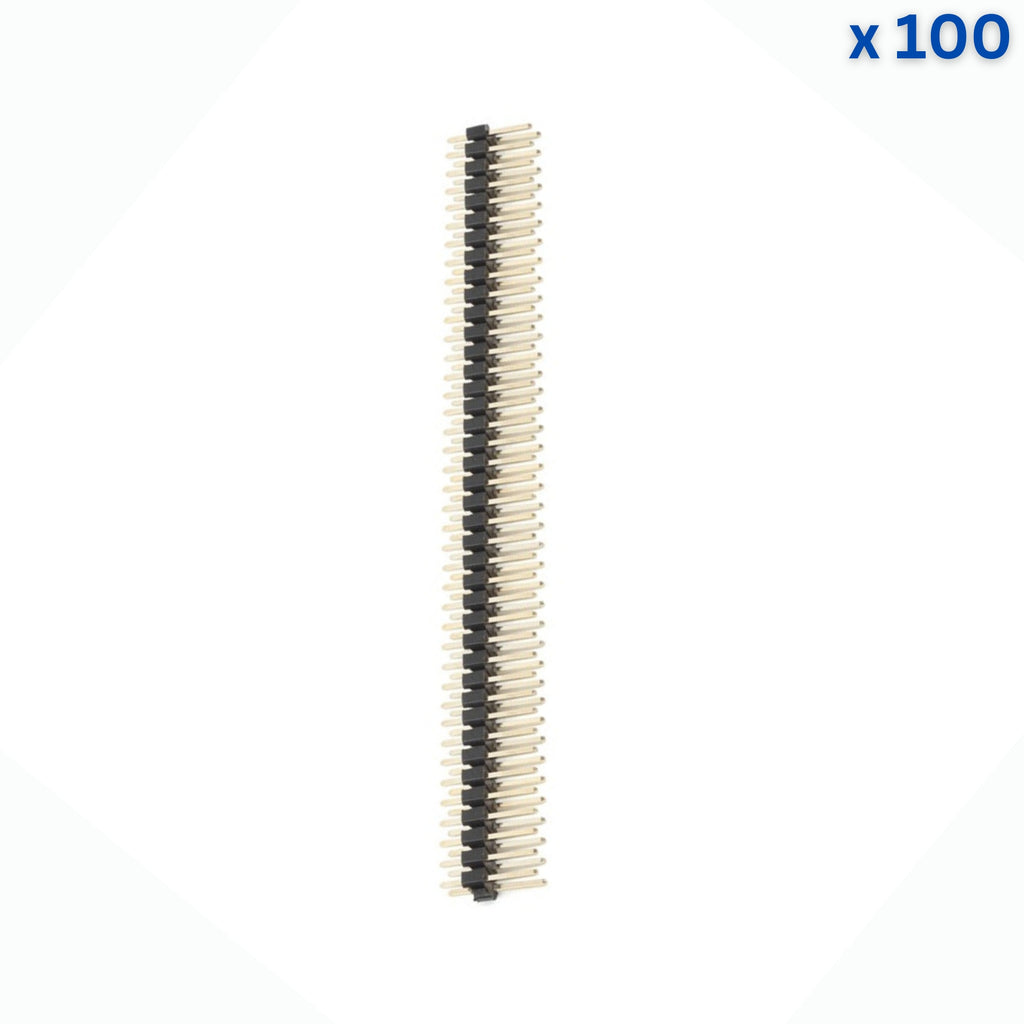

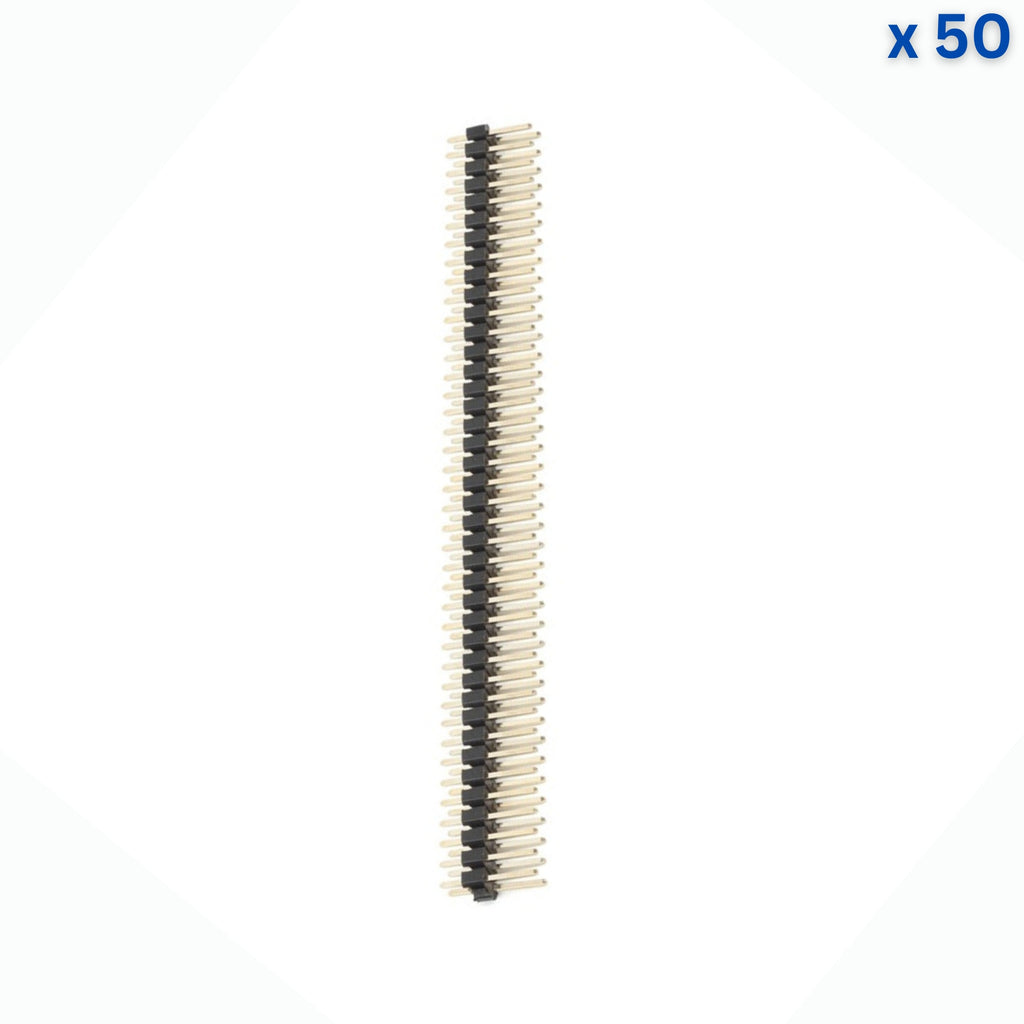

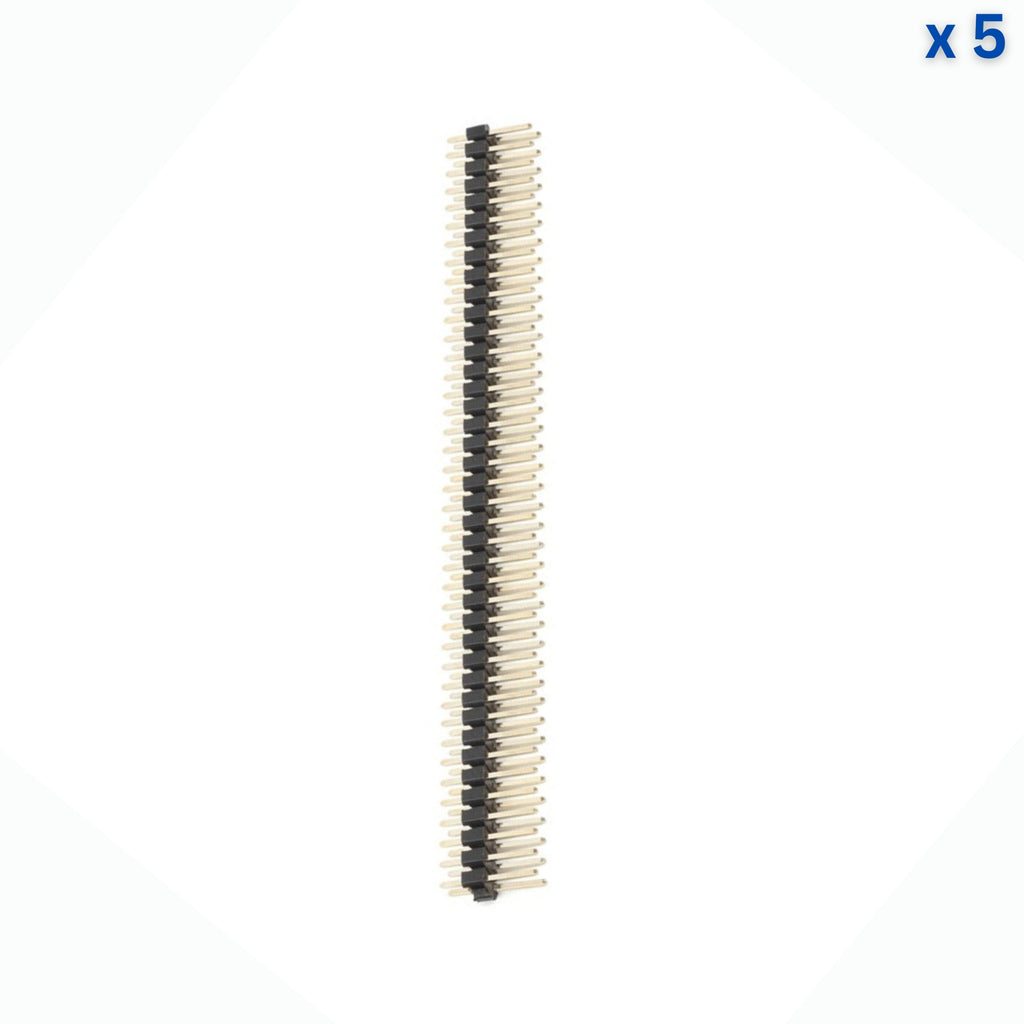

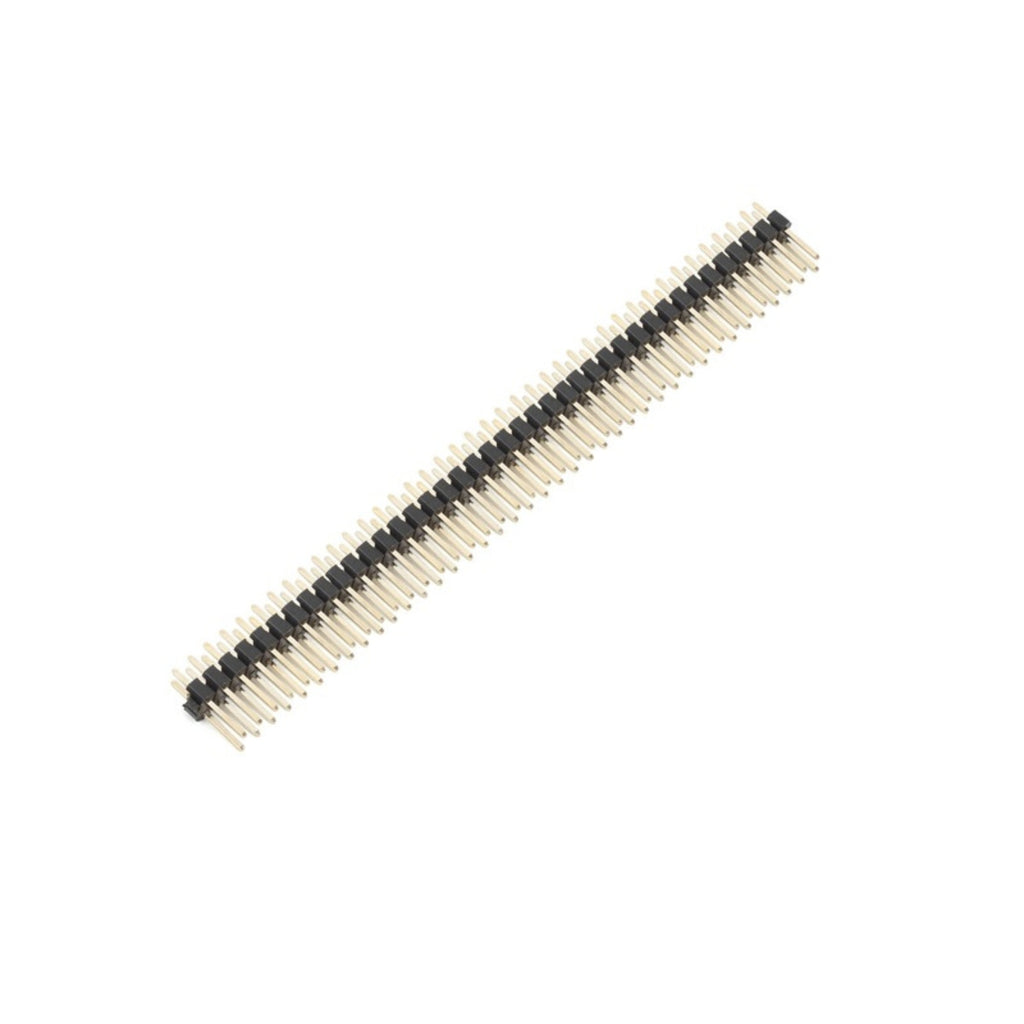

40x2 15mm 2.54mm Gold Male Pin Header

The 40×2 15 mm 2.54 mm Pitch Gold Male Pin Header is a double-row, straight male connector designed for dependable PCB interconnections. Featuring a standard 2.54 mm pitch and 15 mm pin length, it is well suited for board stacking, inter-board connections, and development platforms. Gold-plated pins provide low contact resistance, enhanced corrosion resistance, and long service life, making it ideal for both prototyping and production use.

Technical Specifications:

• Product Type: Male Pin Header

• Configuration: 2 × 40 pins

• Pitch: 2.54 mm (0.1 inch)

• Pin Length: ~15 mm

• Mounting Type: Through-Hole (THT)

• Orientation: Straight / Vertical

• Contact Material: Copper alloy

• Contact Plating: Gold-plated

• Insulator Material: Black thermoplastic

• Rated Current: ~1–3 A per pin (typical)

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C

• Cuttable: Yes (can be cut to required pin count)

Features:

• Standard 2.54 mm pitch ensures wide compatibility

• Double-row layout for higher connection density

• Gold-plated contacts for excellent conductivity and durability

• 15 mm pin length suitable for stacking and socket mating

• Robust mechanical strength after soldering

• Easily customizable length for flexible designs

Applications:

• Arduino, ESP32, Raspberry Pi, and compatible boards

• PCB stacking and shield connections

• Embedded systems and IoT devices

• Prototyping and development boards

• Industrial control and consumer electronics assemblies
