Description

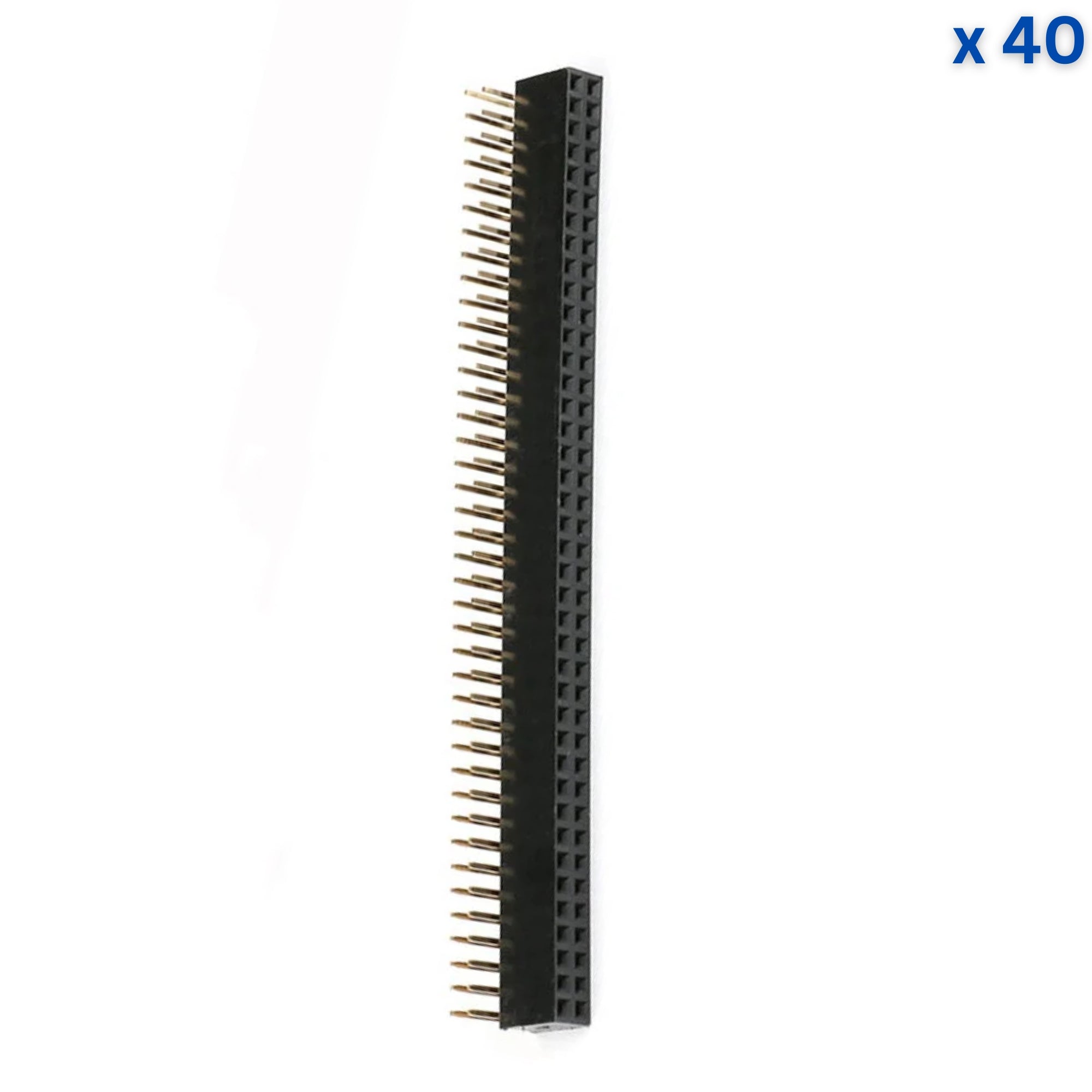

The 40×2 10 mm 2.54 mm Pitch Right Angle Female Pin Header is a dual-row through-hole connector designed for horizontal (right-angle) board-to-board or board-to-cable connections. With 80 female contacts arranged in two rows and a 10 mm insulated body height, it allows signals to be routed parallel to the PCB, making it ideal for space-constrained designs and side-entry connections. The standard 2.54 mm pitch ensures wide compatibility with common male headers and development boards.
Technical Specification:
- Product Type: Right Angle Female Pin Header
- Configuration: 2 × 40 pins (80 pins total)
- Pitch: 2.54 mm (0.1 inch)
- Row Spacing: 2.54 mm
- Insulator Height: 10 mm
- Mounting Type: Through-hole (THT)
- Pin Orientation: Right Angle (90°)
- Contact Material: Copper alloy
- Contact Plating: Tin-plated or gold-plated (typical)
- Insulator Material: Black thermoplastic
- Rated Current: ~1 A per pin (typical)
- Rated Voltage: Up to 250 V (typical)
- Operating Temperature: −40 °C to +105 °C (typical)
- Cuttable: Yes, can be cut to required pin length
Features:
- Standard 2.54 mm pitch for universal compatibility
- Right-angle design for horizontal PCB connections
- Dual-row configuration supports high-density interfaces
- 10 mm body height provides clearance and stability
- Strong and reliable through-hole soldering
- Durable construction for repeated mating cycles
Applications:
- Side-entry connections on PCBs
- Arduino, Raspberry Pi, and microcontroller expansion boards
- Board-to-board interconnections in compact enclosures
- Prototyping and development platforms
- Embedded systems and industrial electronics
