40x2 10mm 2.54mm Pitch Female Pin Header

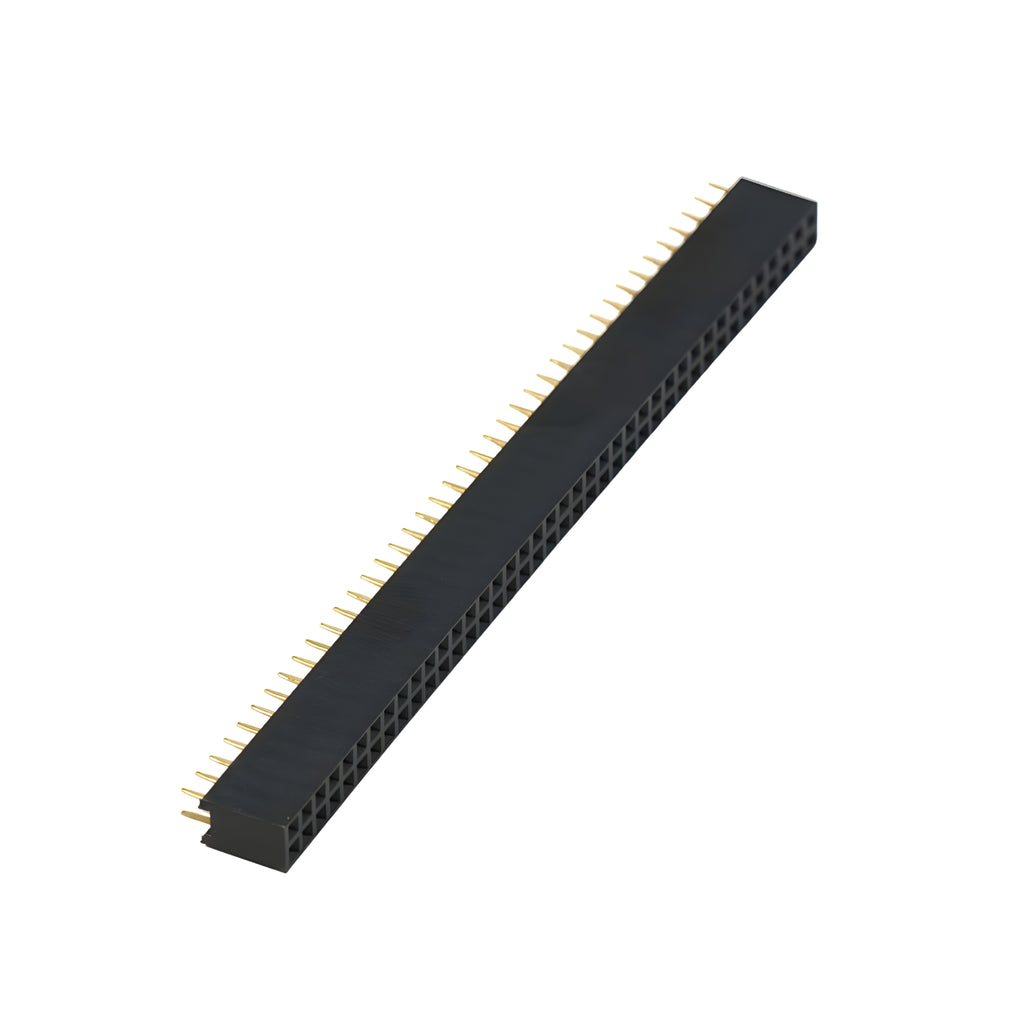

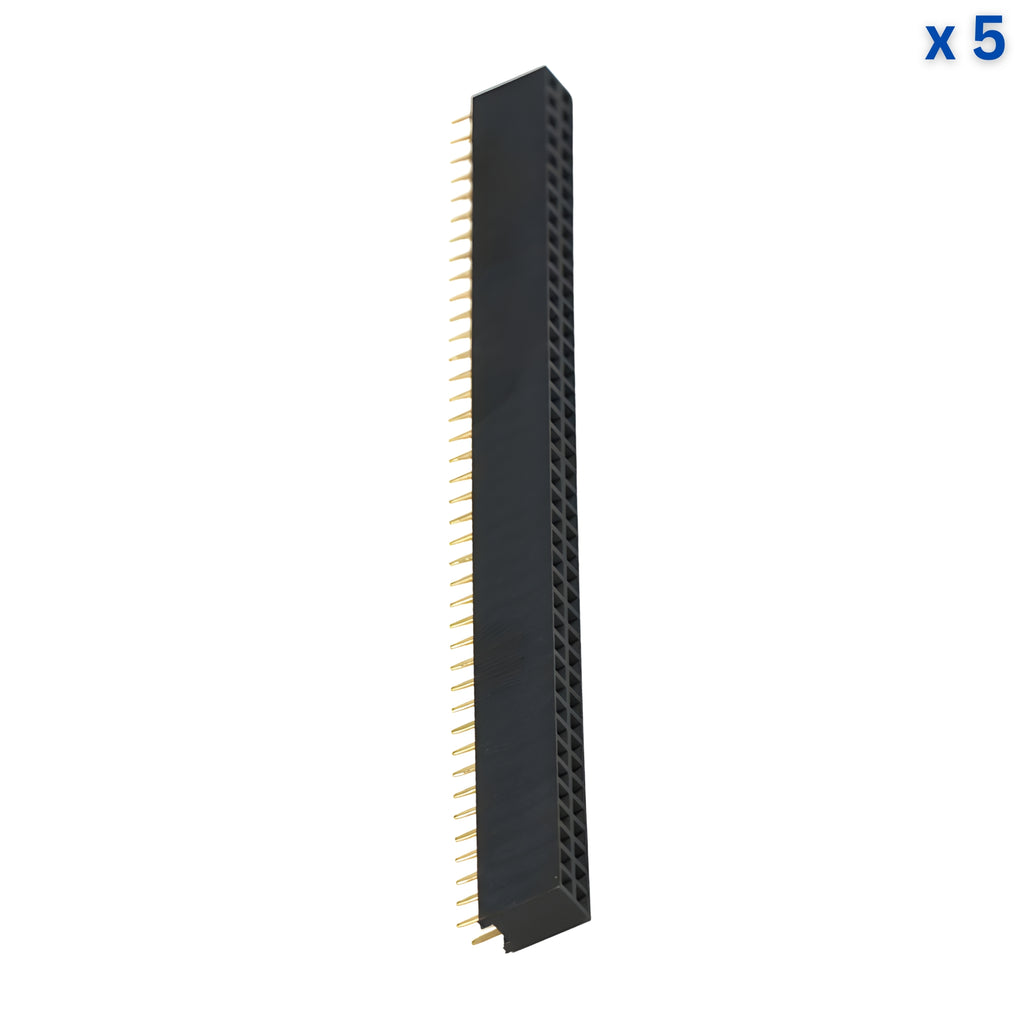

The 40×2 10 mm 2.54 mm Pitch Female Pin Header is a dual-row through-hole connector designed for stacking and interfacing PCBs with extended height clearance. Featuring 80 female contacts arranged in two rows with standard 2.54 mm spacing and a 10 mm body height, it is ideal for applications where components or boards need to be connected with vertical separation. This header is widely used in development boards, shield stacking, and modular electronic assemblies.

Technical Specification:

• Product Type: Female Pin Header

• Configuration: 2 × 40 pins (80 pins total)

• Pitch: 2.54 mm (0.1 inch)

• Row Spacing: 2.54 mm

• Insulator Height: 10 mm

• Mounting Type: Through-hole (THT)

• Pin Orientation: Straight

• Contact Material: Copper alloy

• Contact Plating: Tin-plated or gold-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin (typical)

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required pin length

Features:

• Standard 2.54 mm pitch for broad compatibility

• Dual-row design supports high pin count connections

• 10 mm height suitable for board stacking and clearance

• Strong and reliable through-hole solder joints

• Compatible with standard 2.54 mm male pin headers

• Durable construction for repeated insertions

Applications:

• Arduino and microcontroller shield stacking

• Raspberry Pi and development board interfaces

• Board-to-board connections with height separation

• Prototyping and test fixtures

• Embedded systems and industrial control electronics
