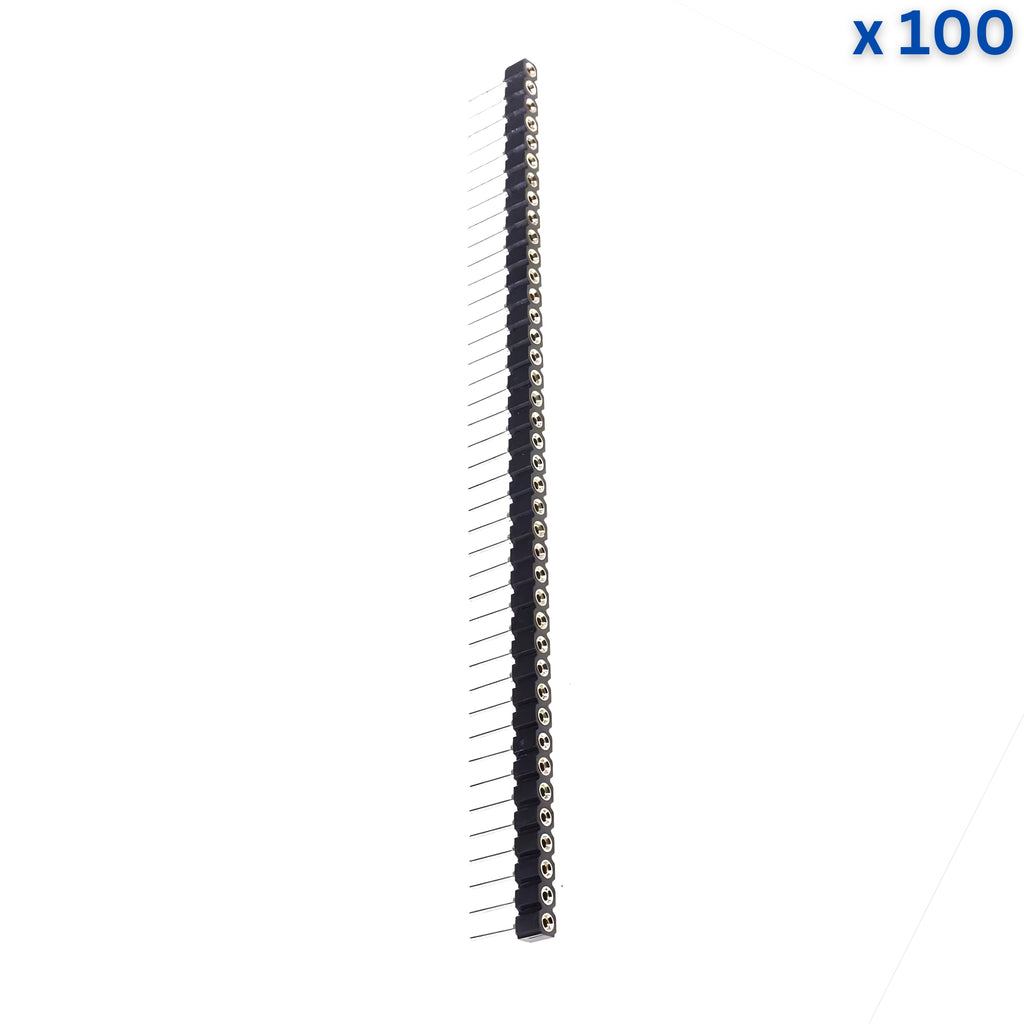

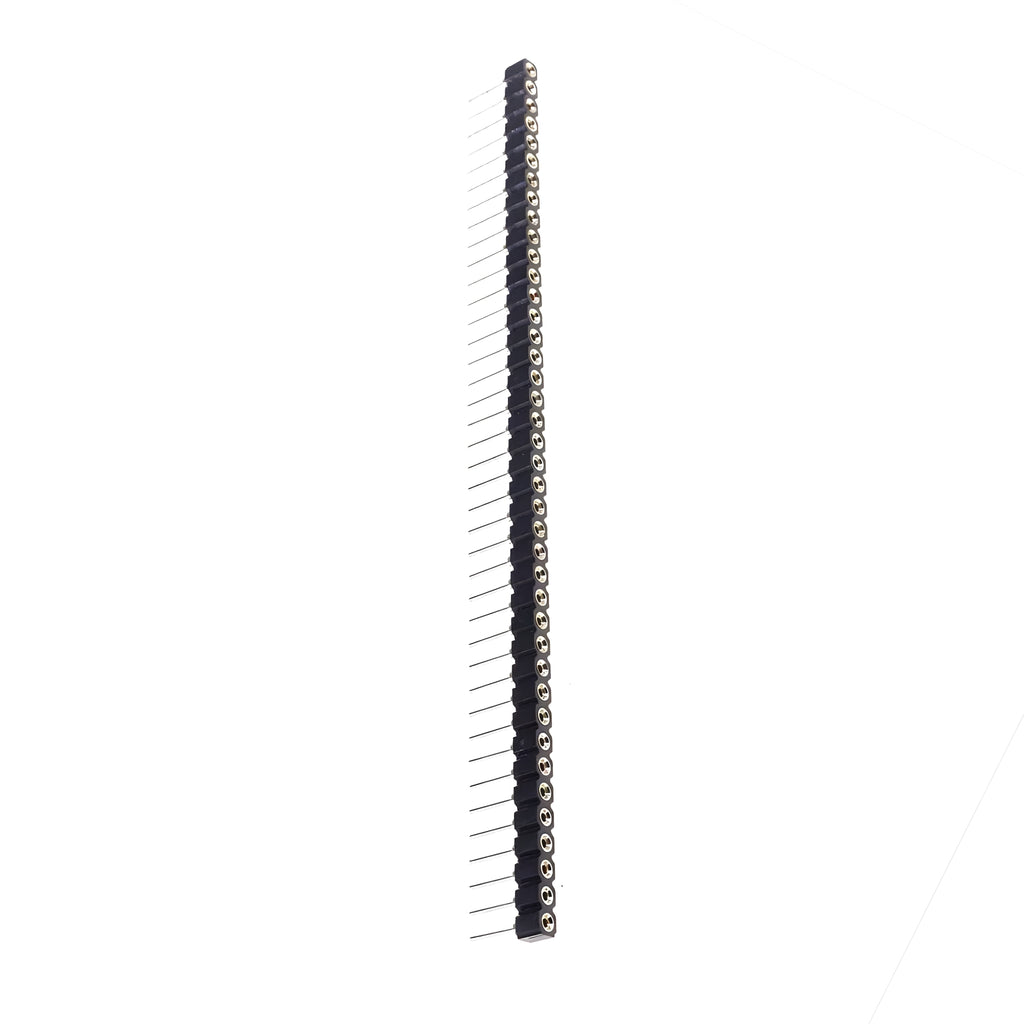

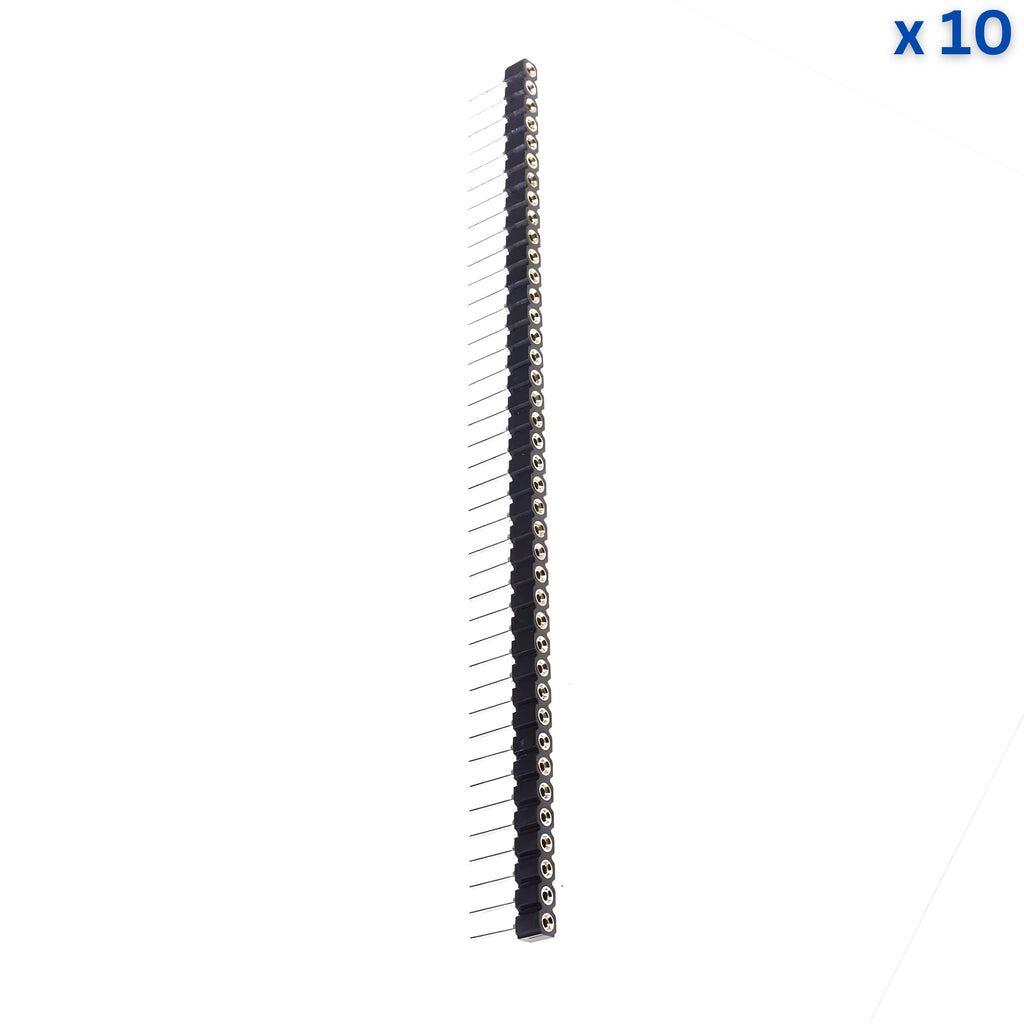

40x1 Single In Line Female Pin Header

The 40×1 Single In Line Female Pin Header is a single-row through-hole socket header designed to provide reliable and reusable connections between PCBs and male pin headers. With a standard 2.54 mm pitch, it is widely compatible with Arduino, Raspberry Pi, ESP, and other development boards. The female socket design allows easy insertion and removal of mating pins, making it ideal for prototyping, testing, and modular circuit designs.

Technical Specification:

• Product Type: Single In Line Female Pin Header

• Configuration: 1 × 40 positions

• Pitch: 2.54 mm (0.1 inch)

• Mounting Type: Through-Hole (THT)

• Orientation: Straight

• Contact Type: Female socket

• Contact Material: Phosphor bronze or copper alloy

• Contact Plating: Tin-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per contact

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required length

Features:

• Standard 2.54 mm pitch for universal compatibility

• Female socket allows repeated insertion and removal

• Through-hole mounting provides strong mechanical stability

• Easy to cut into smaller pin counts as needed

• Suitable for breadboards, PCBs, and development boards

• Durable insulation and reliable electrical contact

Applications:

• Arduino, ESP32, Raspberry Pi, and compatible boards

• Breakout boards and shield connections

• Prototyping and breadboard extensions

• Embedded systems development

• Educational electronics projects

• Test and measurement setups
