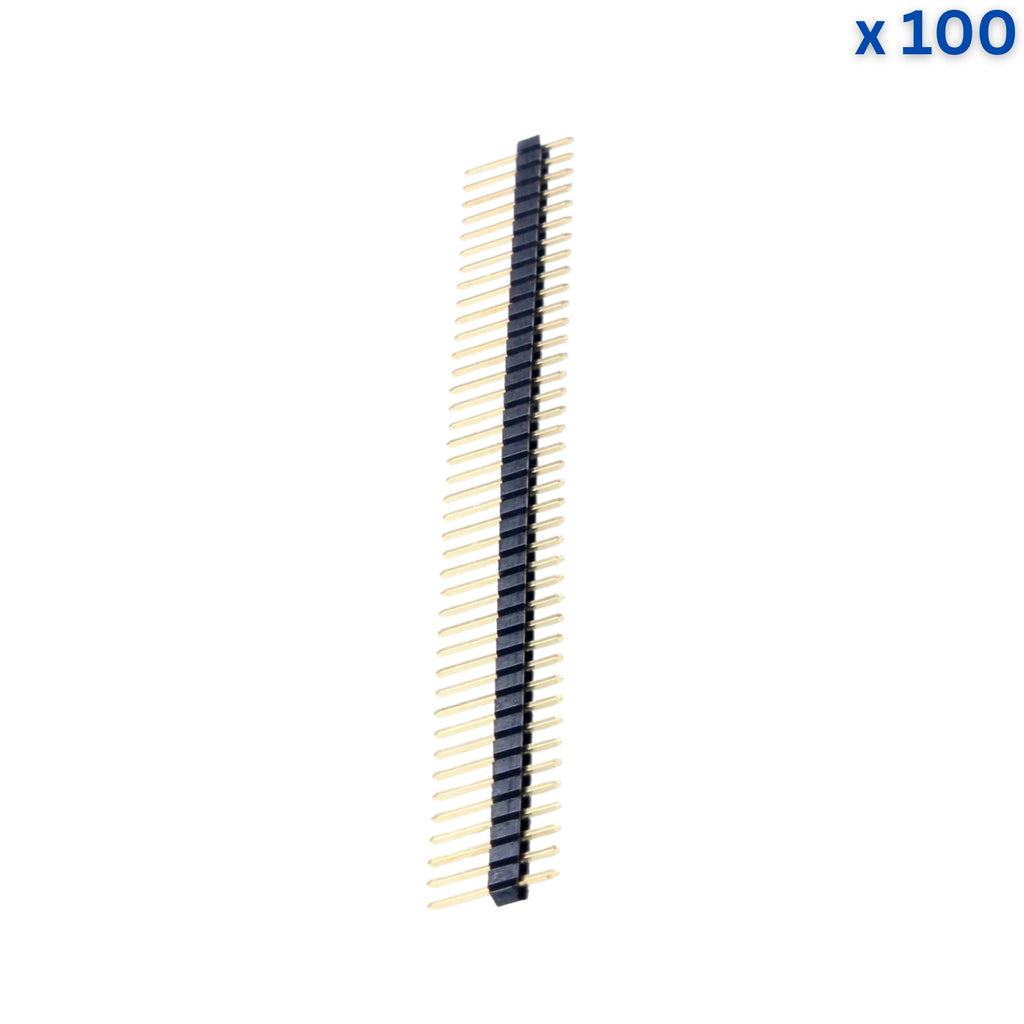

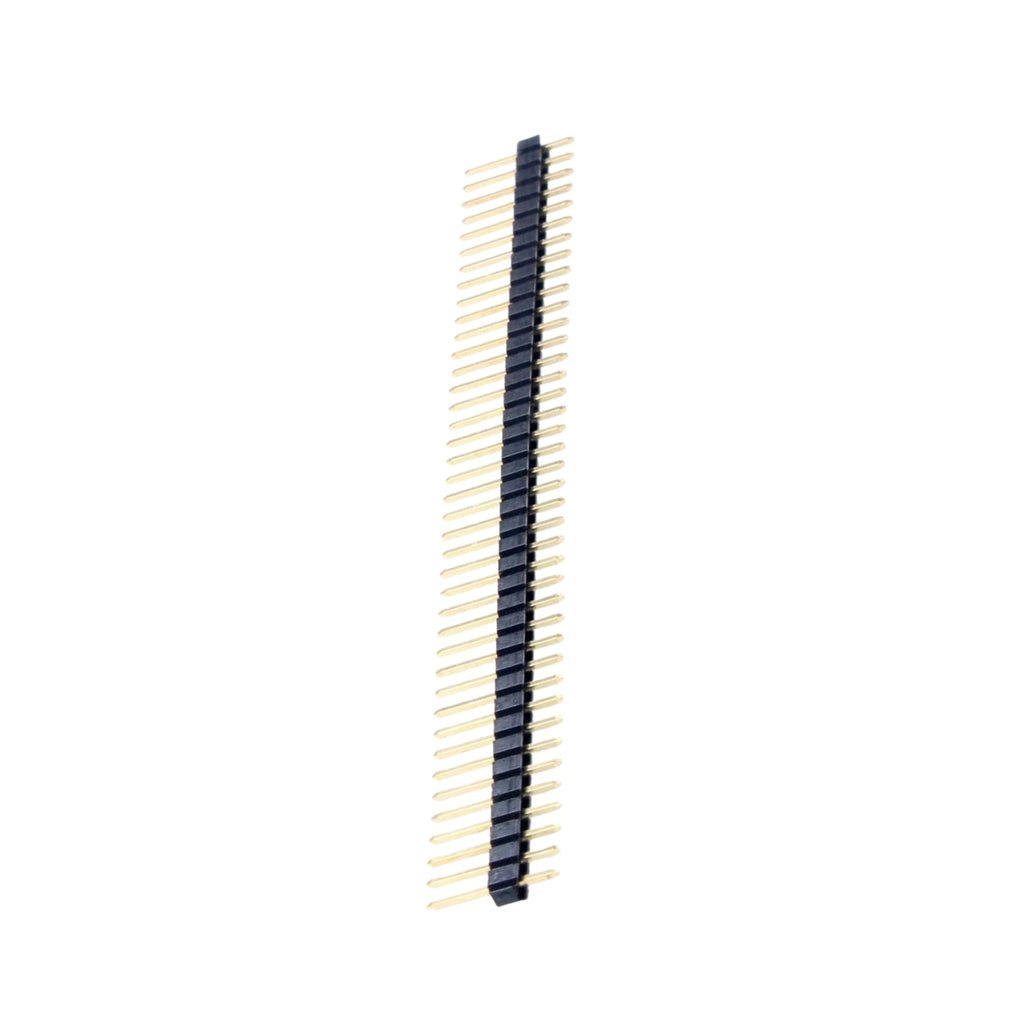

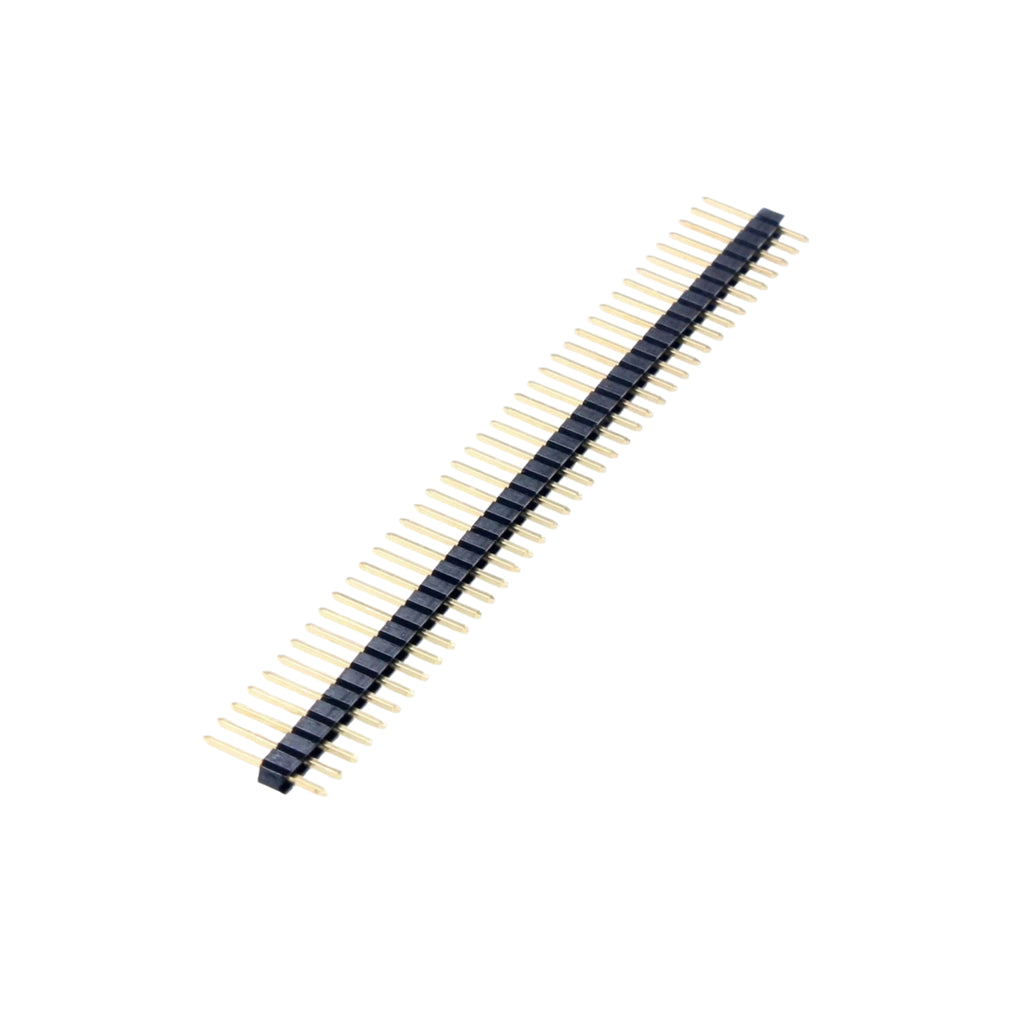

40x1 Single In Line Male Pin Header

The 40×1 Single In Line Male Pin Header is a standard through-hole connector featuring a single row of 40 straight male pins with a 2.54 mm pitch. It is widely used for board-to-board connections, module interfacing, and prototyping. The header can be easily cut to the required length, making it highly flexible for custom PCB designs and development projects.

Technical Specification:

• Product Type: Single In Line (SIL) Male Pin Header

• Configuration: 1 × 40 pins

• Pitch: 2.54 mm (0.1 inch)

• Mounting Type: Through-hole (THT)

• Pin Orientation: Straight

• Contact Material: Copper alloy

• Contact Plating: Gold-plated or tin-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes

Features:

• Standard 2.54 mm pitch for universal compatibility

• Through-hole design for strong mechanical retention

• Easy to cut into smaller pin counts

• Reliable electrical performance

• Compatible with breadboards and PCBs

• Suitable for manual and automated soldering

Applications:

• Arduino, ESP32, Raspberry Pi, and other development boards

• PCB prototyping and testing

• Embedded systems and IoT projects

• Board-to-board and module connections

• Educational electronics and DIY projects
