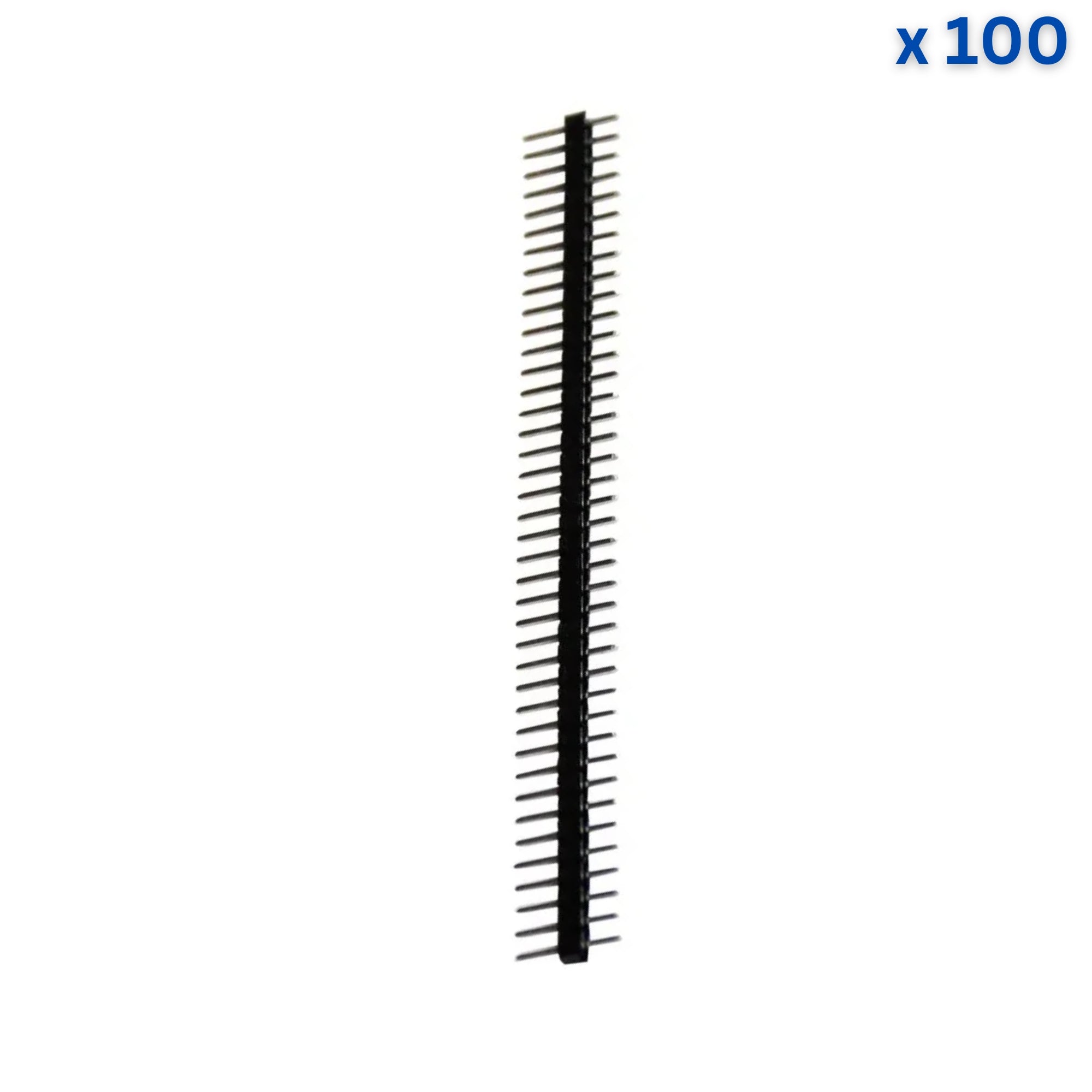

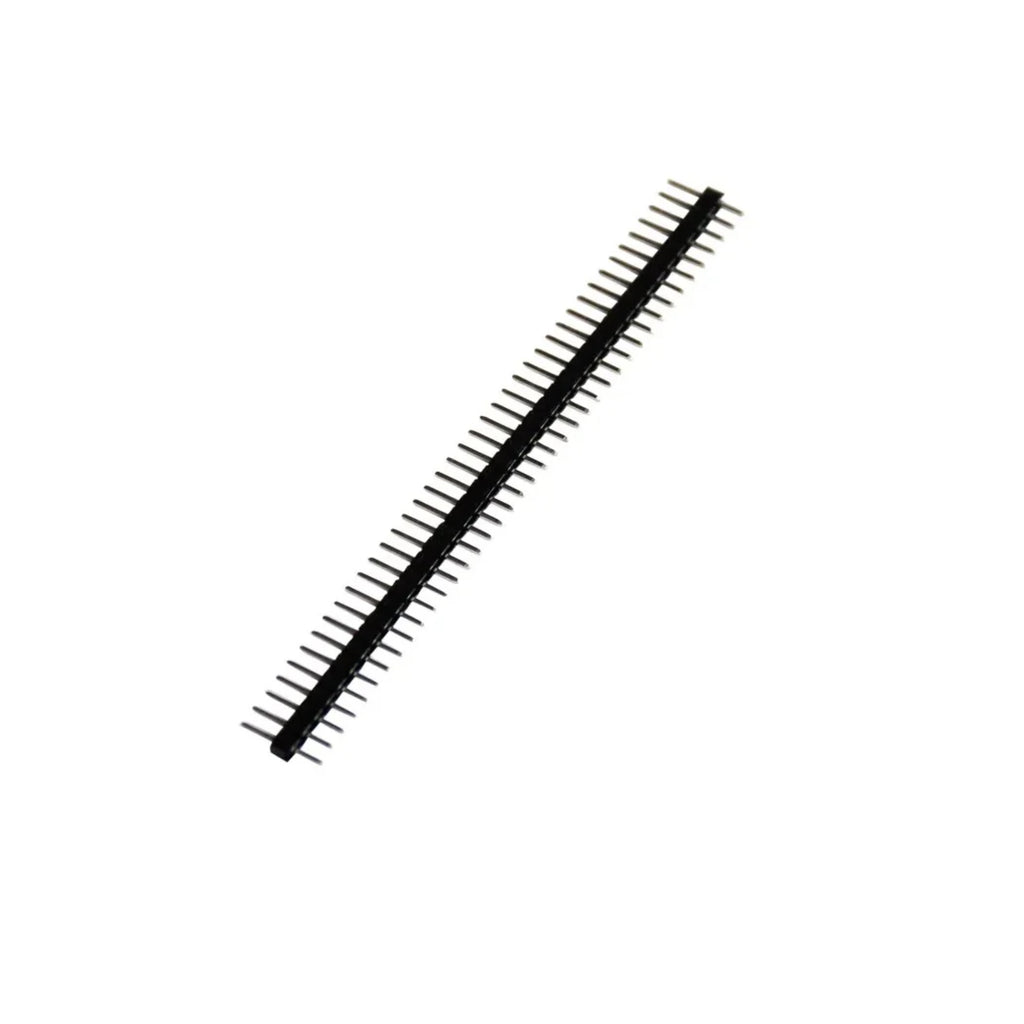

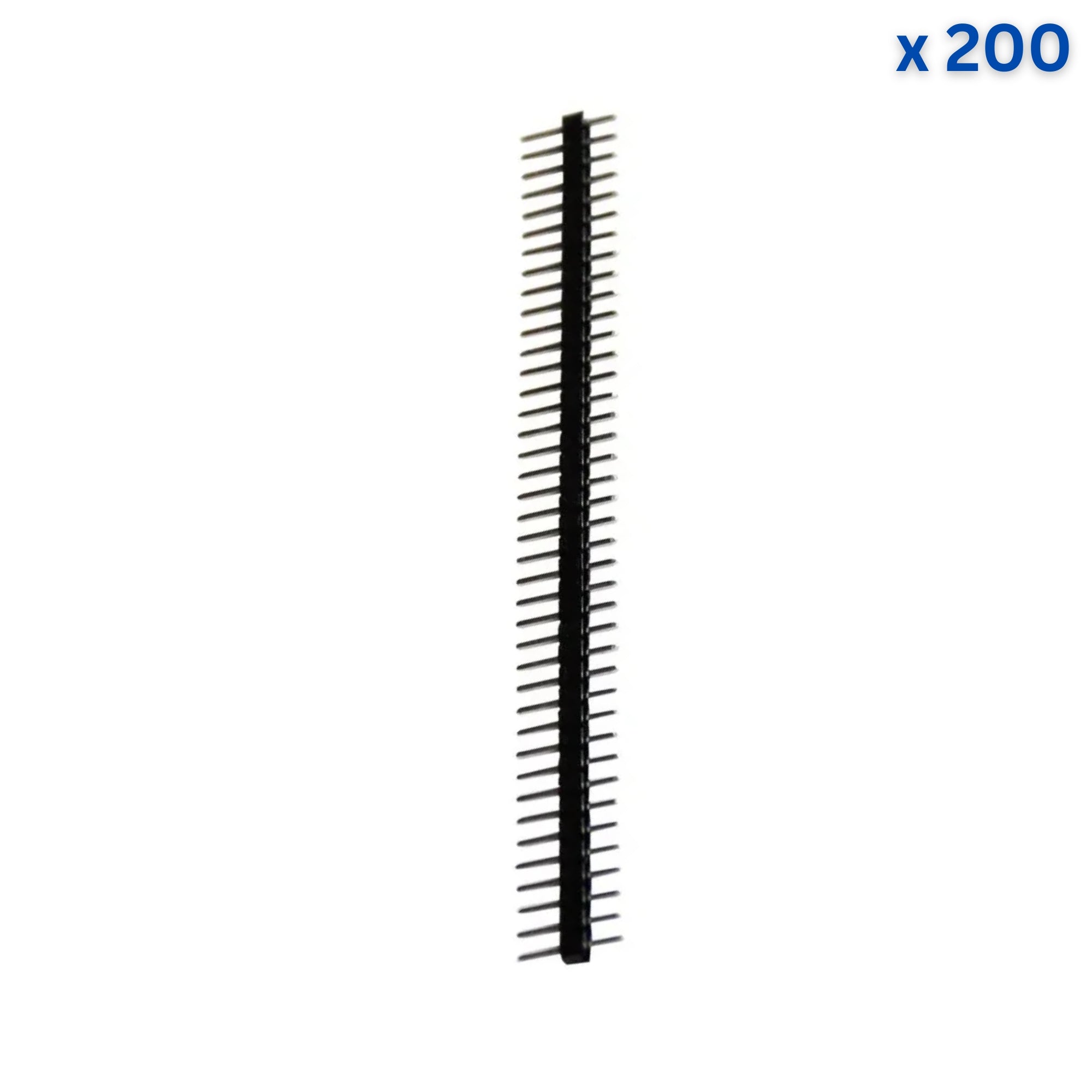

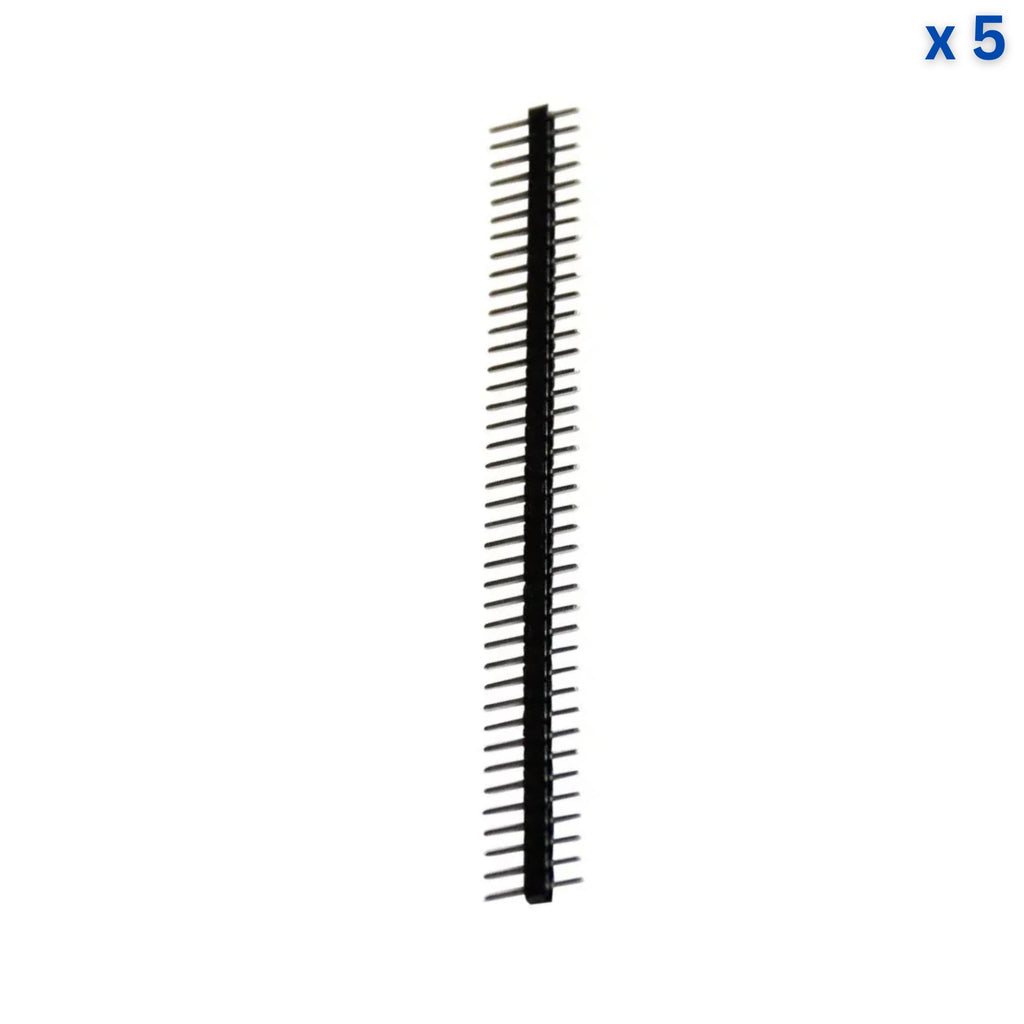

40x1 2mm Pitch Male Pin Header
The 40×1 2 mm Pitch Male Pin Header is a compact, single-row connector designed for space-constrained PCB applications. With a fine 2.0 mm pitch, it offers higher pin density than standard 2.54 mm headers while maintaining reliable electrical and mechanical performance. This header is ideal for modern development boards, modules, and embedded systems where reduced size and clean board layout are essential.
Technical Specification:
- Product Type: Male Pin Header
- Configuration: 1 × 40 pins
- Pitch: 2.0 mm
- Mounting Type: Through-hole
- Pin Orientation: Straight
- Contact Material: Copper alloy
- Contact Plating: Gold-plated or tin-plated (typical)
- Insulator Material: Black thermoplastic
- Rated Current: ~1 A per pin
- Rated Voltage: Up to 250 V (typical)
- Operating Temperature: −40 °C to +105 °C (typical)
- Cuttable: Yes, can be snapped to required length
Features:
- Compact 2.0 mm pitch for high-density designs
- Standard single-row 40-pin configuration
- Strong and reliable electrical contact
- Compatible with fine-pitch female headers and sockets
- Easy to cut for custom pin counts
- Durable construction suitable for repeated use
Applications:
- Microcontroller and development boards
- Embedded systems and IoT devices
- Breakout boards and adapters
- Consumer electronics
- Industrial control and communication modules
