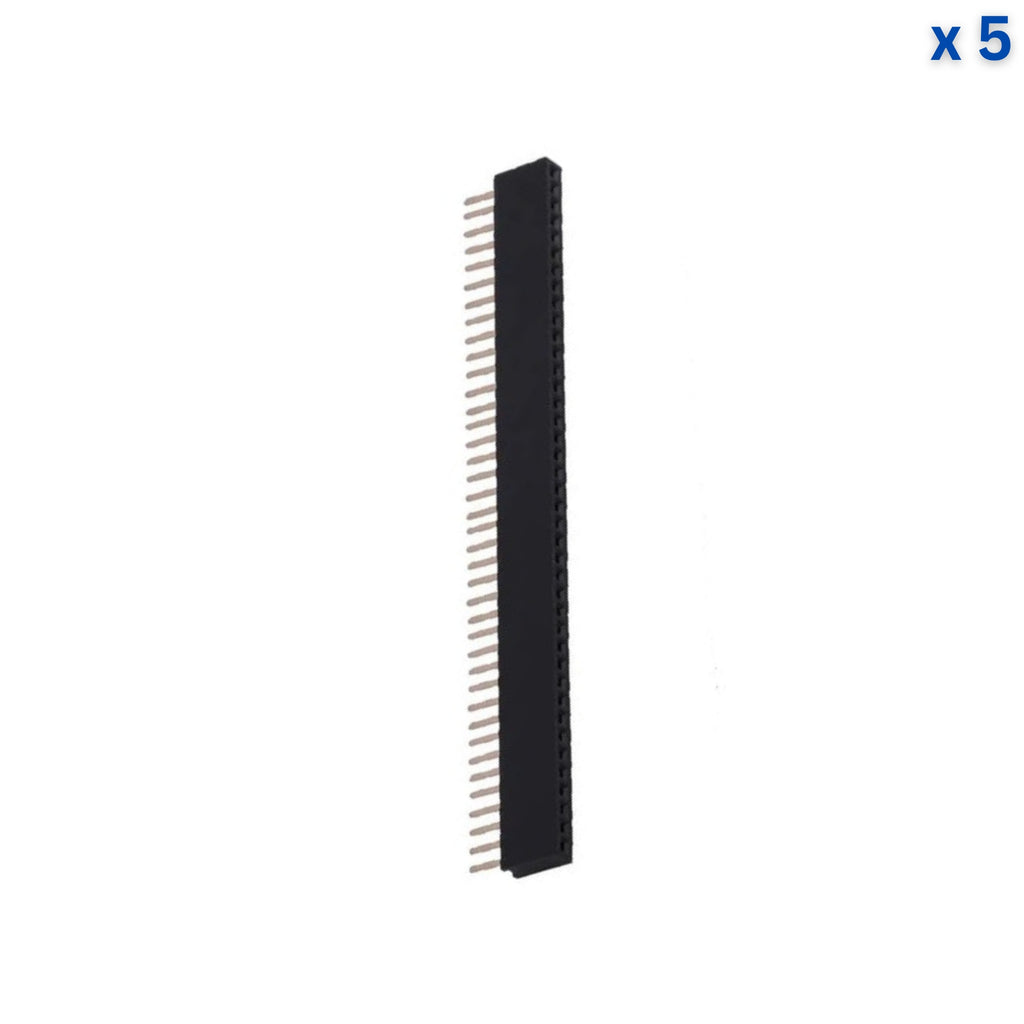

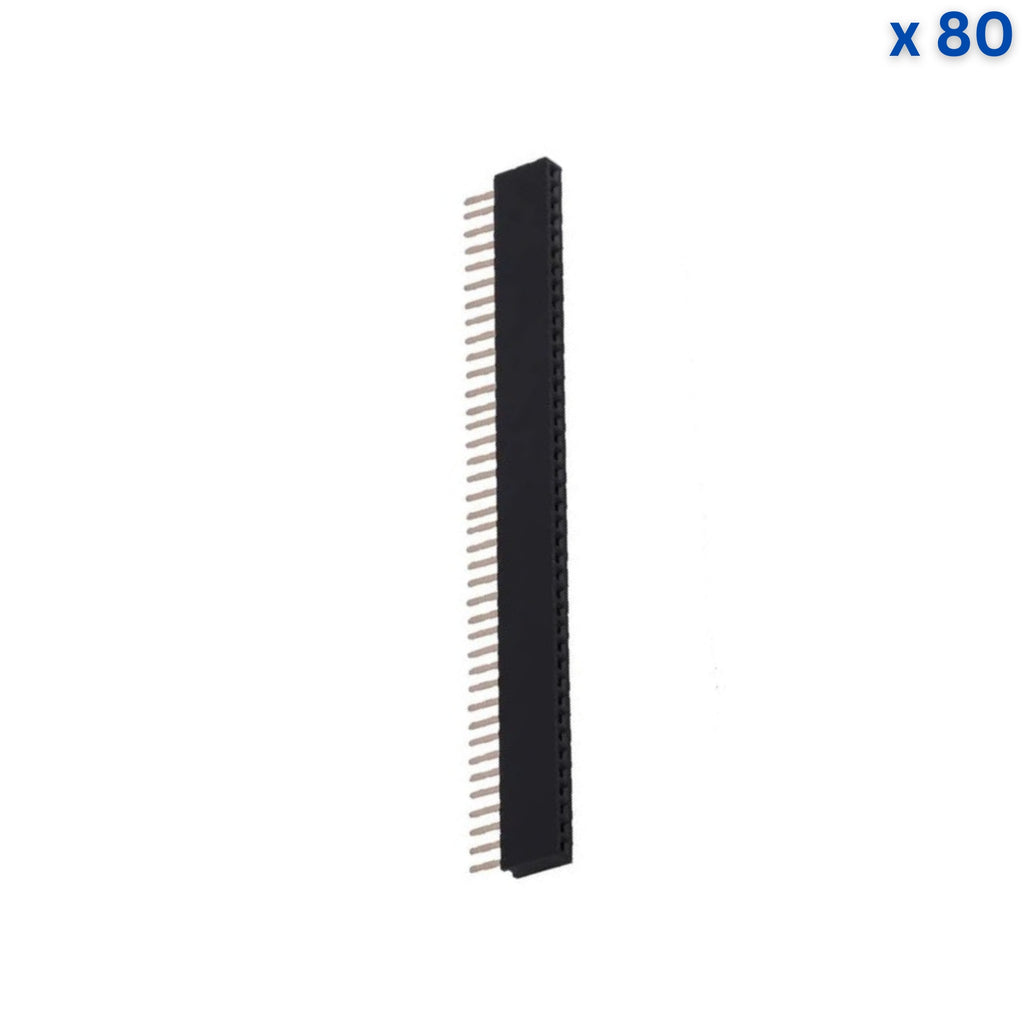

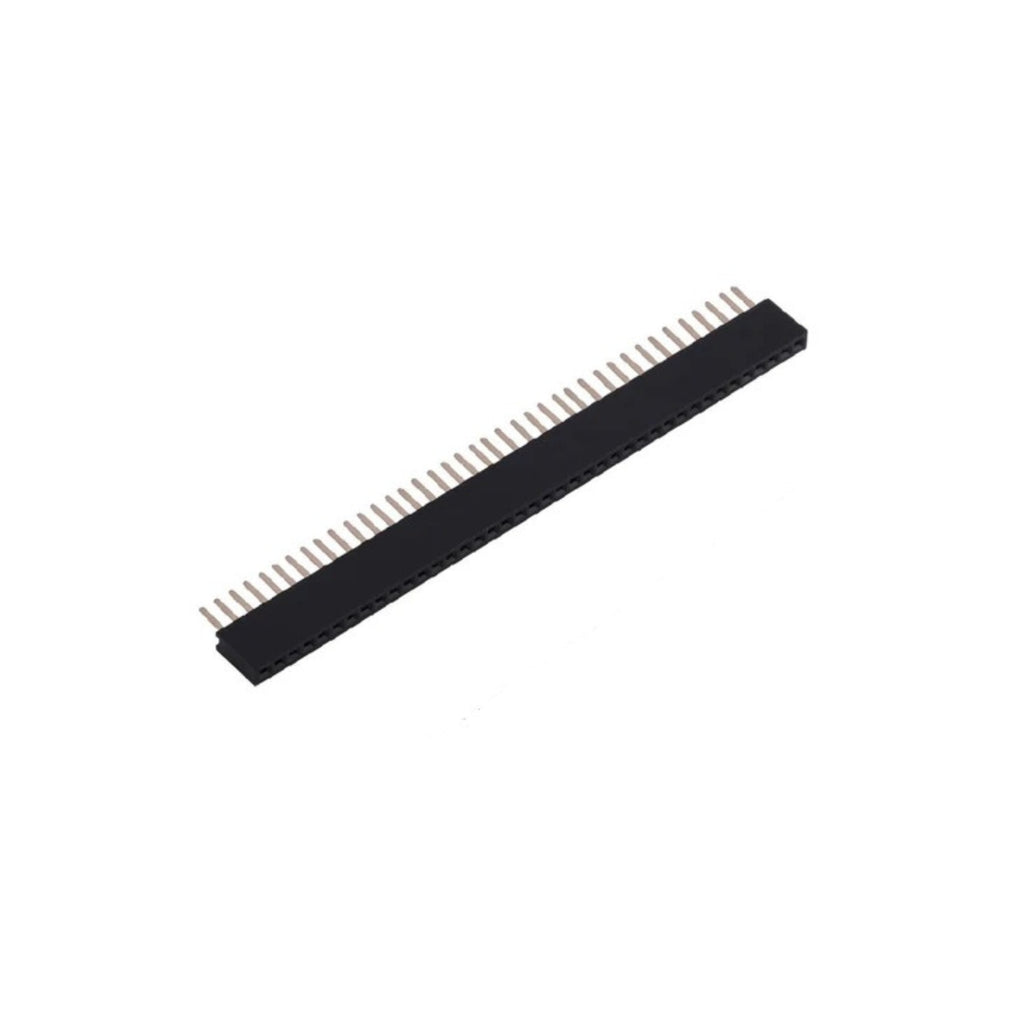

40x1 10mm 2.54mm Pitch Female Pin Header

The 40×1 10 mm 2.54 mm Pitch Female Pin Header is a single-row through-hole connector designed for dependable board-to-board and module-to-board connections. With a standard 2.54 mm (0.1″) pitch and a 10 mm body height, it is ideal for compact PCB layouts while still providing secure socket engagement with standard male pin headers.

Technical Specification:

• Product Type: Female Pin Header

• Configuration: 1 × 40 pins

• Pitch: 2.54 mm (0.1 inch)

• Body Height: ~10 mm

• Mounting Type: Through-hole (THT)

• Pin Orientation: Straight (Vertical)

• Contact Material: Copper alloy

• Contact Plating: Tin or gold plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required length

Features:

• Standard 2.54 mm pitch for universal compatibility

• Compact 10 mm profile for space-efficient designs

• Strong and reliable female socket contact

• Easy soldering with through-hole mounting

• Customizable pin count by cutting

• Durable insulating body with good heat resistance

Applications:

• Arduino, ESP32, Raspberry Pi, and compatible boards

• Breakout boards and development modules

• Prototyping and testing PCBs

• Embedded systems and IoT projects

• Consumer electronics and industrial control circuits
