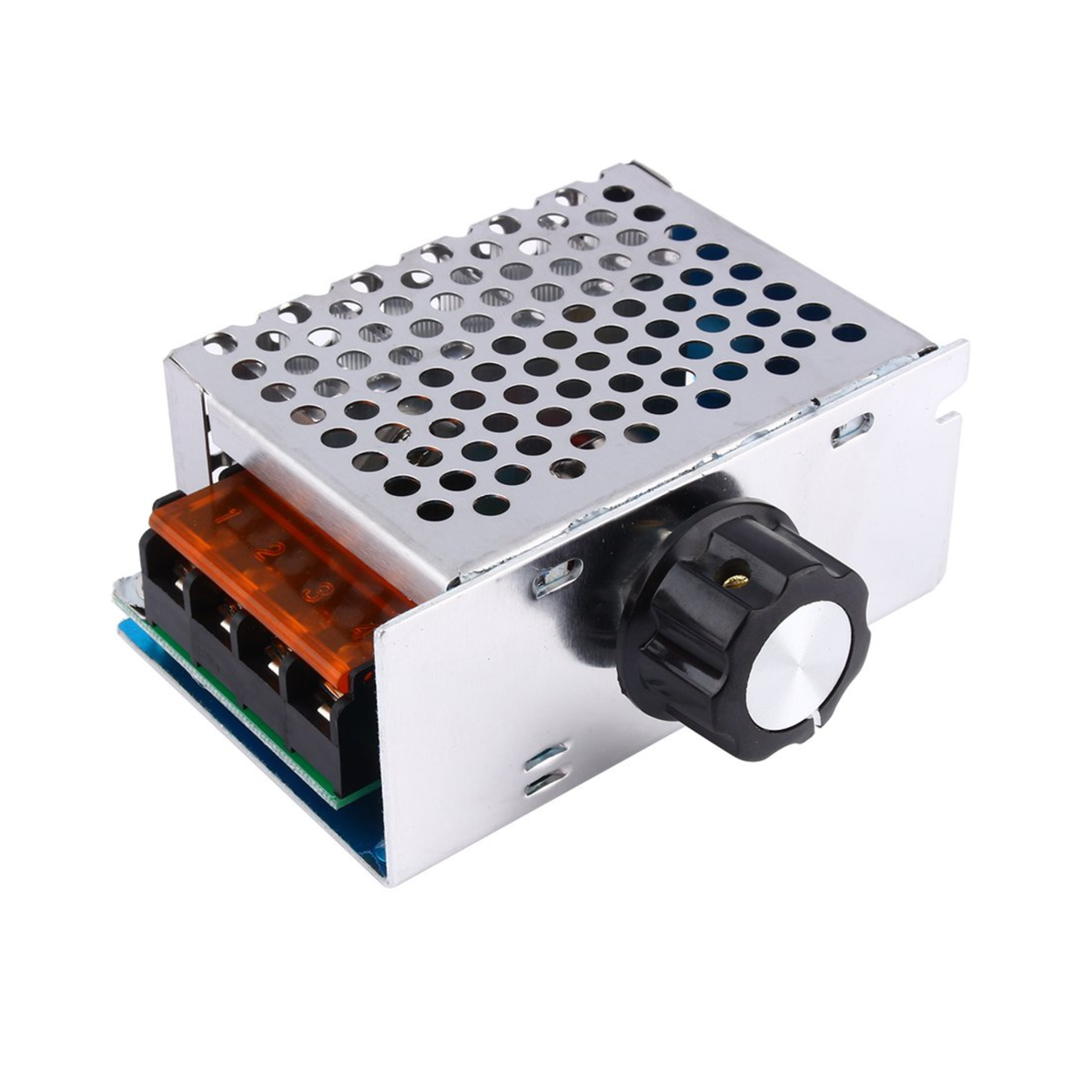

4000W SCR Voltage Regulator AC 220V Speed Controller Dimmer

The 4000W SCR Voltage Regulator AC 220V Speed Controller Dimmer is a high-power AC control module designed to adjust the effective power delivered to compatible 220V AC loads. It uses SCR/thyristor phase-angle control and a rotary knob for smooth manual adjustment. The module can be used for light dimming, heater temperature control and speed control of suitable universal or AC motors. Its metal enclosure and heatsink help dissipate heat during operation.

Technical Specifications:

• Input Voltage: AC 220V
• Adjustable Output: Approximately AC 0–220V
• Maximum Rated Power: Up to 4000W
• Frequency: 50–60Hz
• Control Method: SCR / thyristor phase-angle control

Features:

• Stepless power adjustment using a rotary control knob
• Suitable for high-power resistive loads

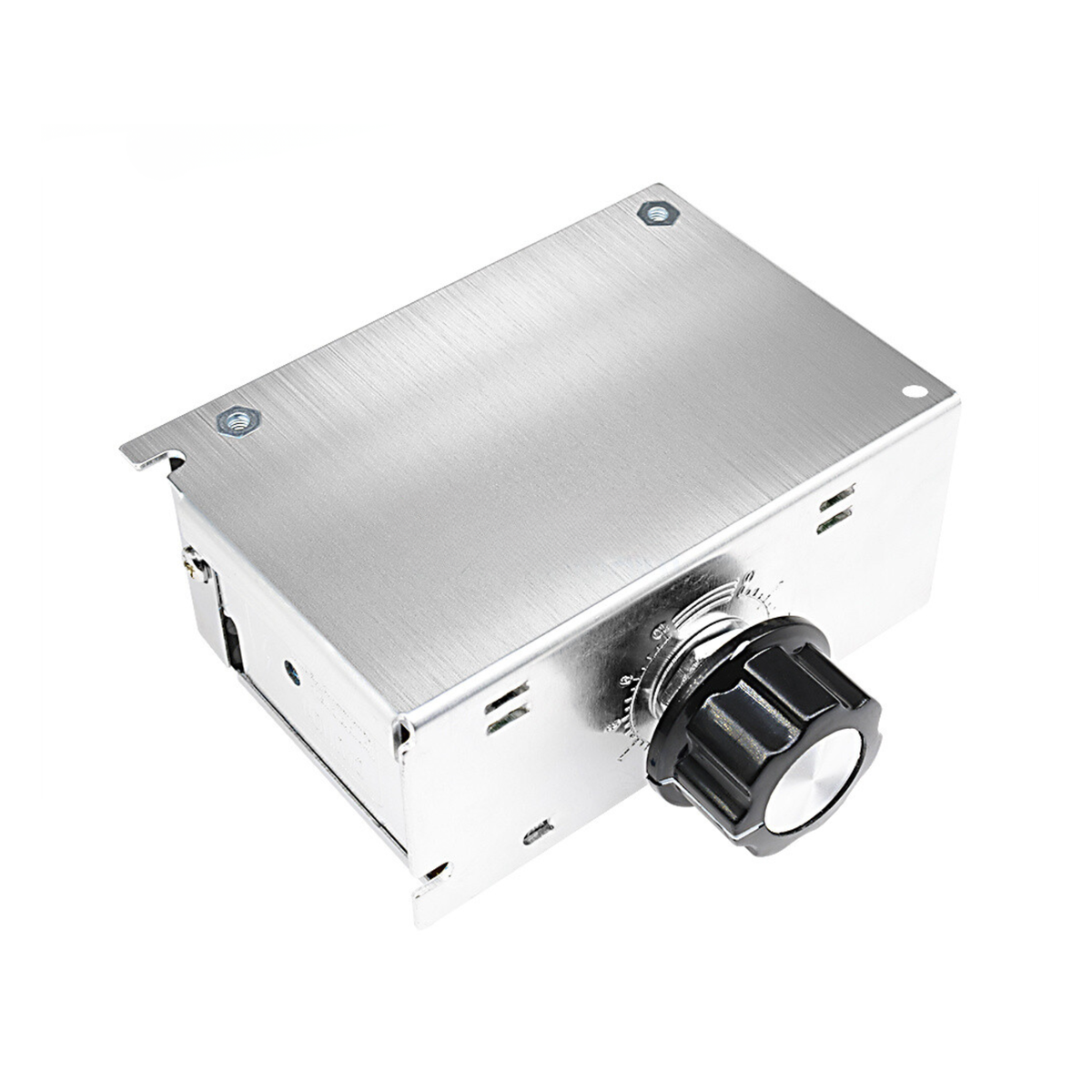

• Built-in metal enclosure and heatsink for heat dissipation
• Can control voltage, heating level, light brightness or compatible motor speed

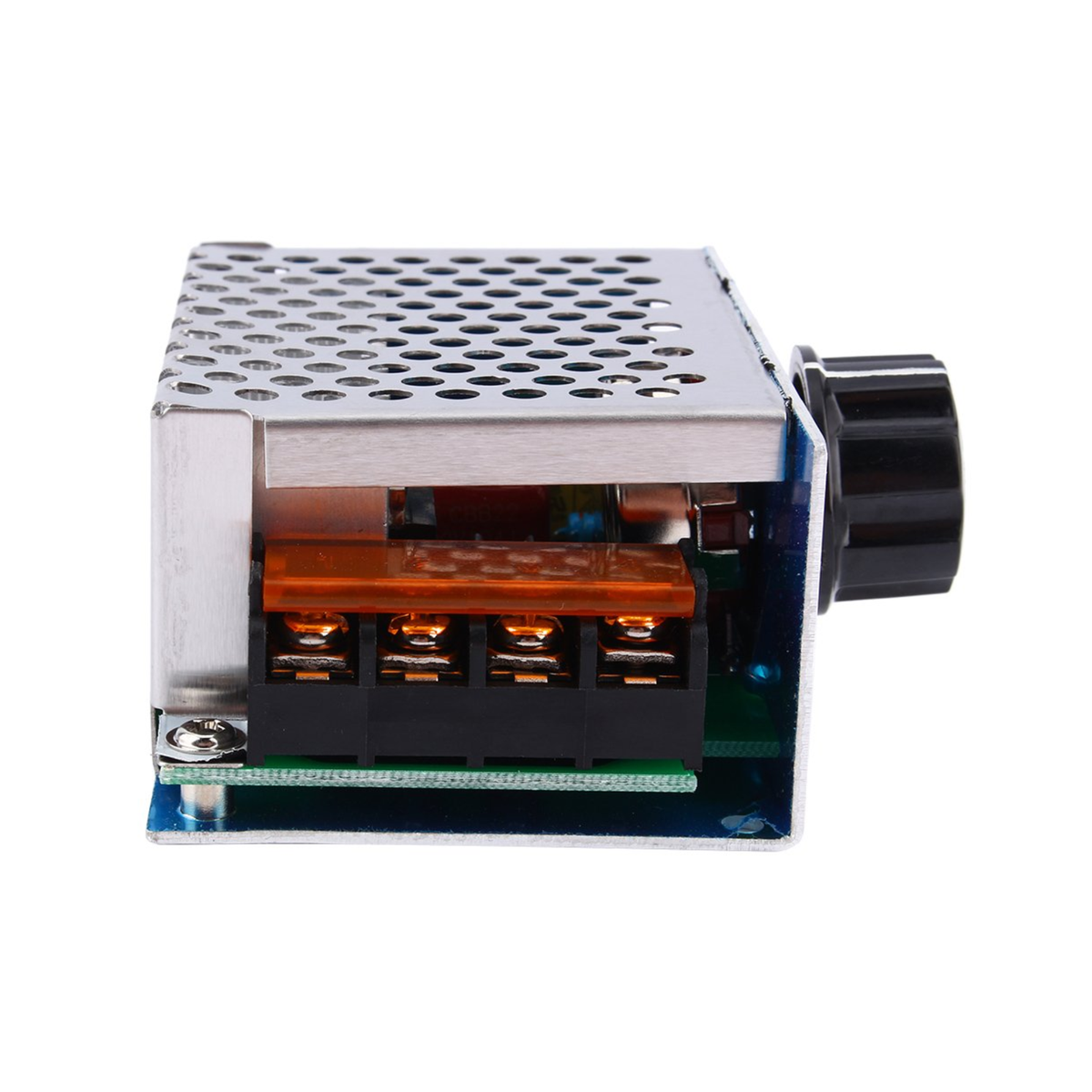

• Simple screw-terminal connections for AC input and load output

Applications:

• Electric heater and heating-element control
• Incandescent lamp and halogen light dimming
• Electric furnace and soldering-heater regulation
• Speed control of compatible AC/universal motors and fans
• DIY workshop and variable AC power-control applications
