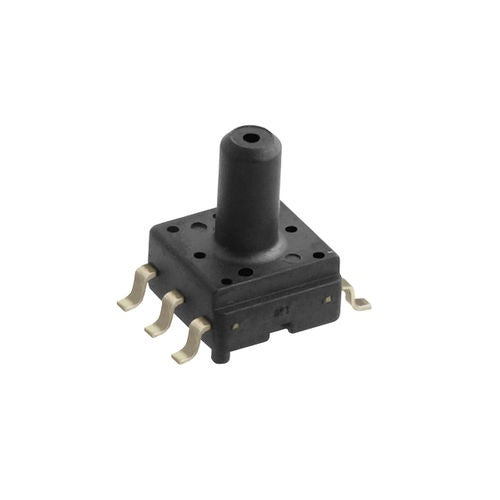

Description
The pressure sensor chip is integrated by an elastic membrane composed of four resistors film. Four piezoresistors form a Wheatstone bridge configuration, when the pressure in the elastic film, the bridge generates an applied pressure signal into a linear voltage output proportional relationship.
Technical Specification:
- Pressure Range: 40 Kpa
- Temperature Range: 125 °C
- Bridge Resistance: 5.5 kΩ
- Full-scale span (FS): 90mV
- Zero Output: 20mV
- Linearity: 0.5 %FS
- Pressure Hysteresis: 0.2 %FS
- Power Supply: 10V
- Storage Temperature: 150 °C
Features:
- Cost-effective sensing solution
- Frees up PCB space, reduces costs
- Flexibility simplifies integration
Applications:
- Medical
- Industrial
