4 Wheel Smart Car Chassis Set

4 Wheel Smart Car Chassis Set
This is double layer 4 wheel smart car robot chassis DIY kit. It comes with the four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent so as to create dynamic handling of the components mounted on your robotic vehicle.

Features of 4 Wheel Smart Car Robot Chassis Kit : -

• Very handy and simple in assembling/disassembling.
• Strong components so as to withstand extreme terrain conditions.
• Transparent Car Chassis.
• Attractive design.
• Double layer structure, much of mounting holes, enough space
• Easy to install a variety of control panels, sensors
• Educational toys, Ideal for DIY platform

Specifications of 4 Wheel Robot Smart Car Chassis Kit:-

• For BO Motor:-
• Operating Voltage: 3V~6V DC
• Gear Ratio 1:48
• No-load speed(5V): about 208RPM
• Rated Torque 0.8 Kg.cm @ 5V
• Load current: 170mA (when it is 4.5V)
• Size: 70 x 23 x 18 mm
• Weight:28g
• Shaft Length: 10 mm
• Shaft Type: 6 mm, Double-D

For Wheel:-

• Loading Capacity: Max 2.5Kg
• Double D hole For BO Motor: 6 mm
• Weight: 34g
• Wheel Diameter: 65 mm
• Color: Black (Tyre), Yellow (Rim)
• Wheel Width: 27 mm
• Body Material: Plastic
• Grip Material: Rubber

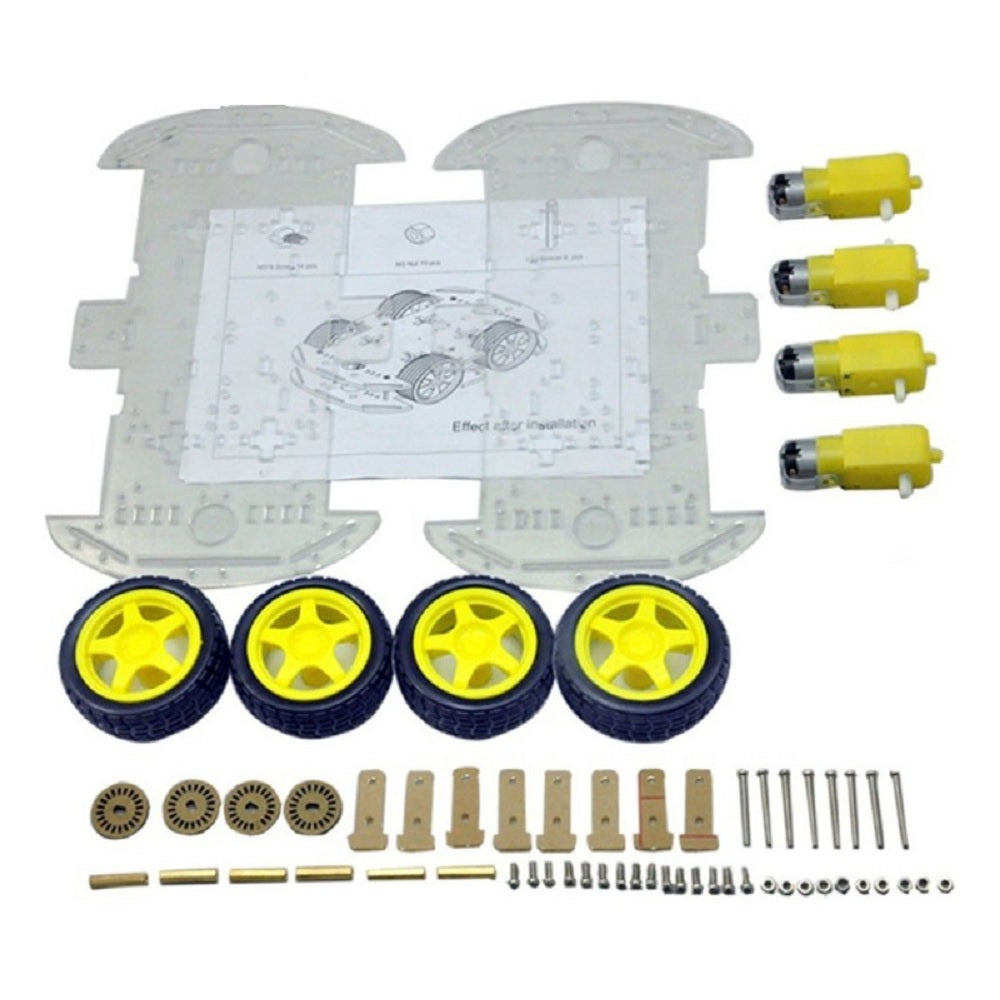

Package includes:-
2 x Acrylic Transparent car floor
4 x High-Quality 65-mm Plastic wheels with Rubber Grip
4 x Dual shaft 200 RPM BO Gear Motor
4 x Coded Disk
8 x Acrylic Fasteners
1 x 4-AAA Battery Holder
6 x Connecting Cable(Red and Black)
6 x M3 Copper Stand-Off (Male-Female)
6 x M3 Cross-Head Bolt (Length: 8 mm )
8 x M3 Cross-Head Bolt (Length: 30 mm )
16 x M3 Nut

Product Images are shown for illustrative purposes, may differ from actual product.
